Function Enhancement

Expert High Speed Cutting Database
Fast air cutting efficiency increases by 37% when cutting carbon steel.

Active Anti-collision Function
Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.

Bodor Lightning
The lightning-quick piercing process combined perfectly with BodorGenius completes the whole piercing just during the laser cutter head moves down on Z-axis.

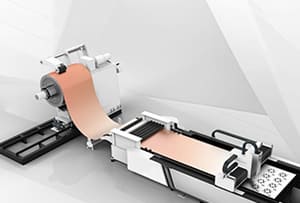

Automated Loading
Equipped with the hydraulic trolley, the cutting machine provides automated feeding of coils in no need for manual work.
Mechanical Configuration

Cast Iron Bed
Flake graphite in the cutting machine bed improves greatly the shock absorption and wear resistance, and residual stress almost disappears after age hardening, therefore, precision and lifetime of the equipment are improved, and costs saved.

Stretching Aluminum Crossbeam
Ultra-high-pressure stretching process and lightweight design; Rigidity increases by 60% ; Weight goes down by 20% ; Laser cutter running speed increases by 50%

Efficient and scratch-avoiding rotatable slats
Rotatable slats on the laser cutting machine bed rotating synchronously with the uncoiler and leveller avoids scratches and increases processing efficiency and quality.
Software
BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

With BodorMES, information insolation of manufacturing is broken. You can manage orders, production, pricing, equipment, and analyze cost to achieve a transparent, visualized, and quantifiable production.

Design

Industrial Design Award Winner
“Oscar in Design”, two of the top three world industrial design awards

Remote Control
A mango shape and convenient magnetic securing help you control with just one hand.
Model | R1500 |
---|---|
Working Area | 3048mm*1524mm |
Laser Power | 6000w/3000w/1500w |
X/Y-Axis Positioning accuracy | ±0.05mm/m |
X/Y-Axis Repositioning accuracy | ±0.03mm/m |
X/Y-axis Max. linkage speed | 90m/min |
Processing plate thickness | 0.8~3mm |
Coil outer diameter | φ1200mm~φ1500mm |
Coil inner diameter | φ508、φ610mm |
Coil weight | ≤8T |
Leveling speed | ≤15m/min |
