T Trans

Professional Automatic Tube Loading Device

T Trans

Professional Automatic Tube Loading Device

Features

Automatic Loading

T-Trans automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.

Intelligent Operation

Intelligent functions, like one-click preset, warning for lack of tubes, adding tubes when processing, anti-scratch for tubes, are available with clear and convenient accesses on the controlling interface.

Flexible Loading

T-Trans easily loads 3m- 9.2m tubes with diameters from 20mm to 230mm. Tubes, like rounds square tubes, rectangular tubes, etc., are all processable.

Applicable Model
T-SeriesM230

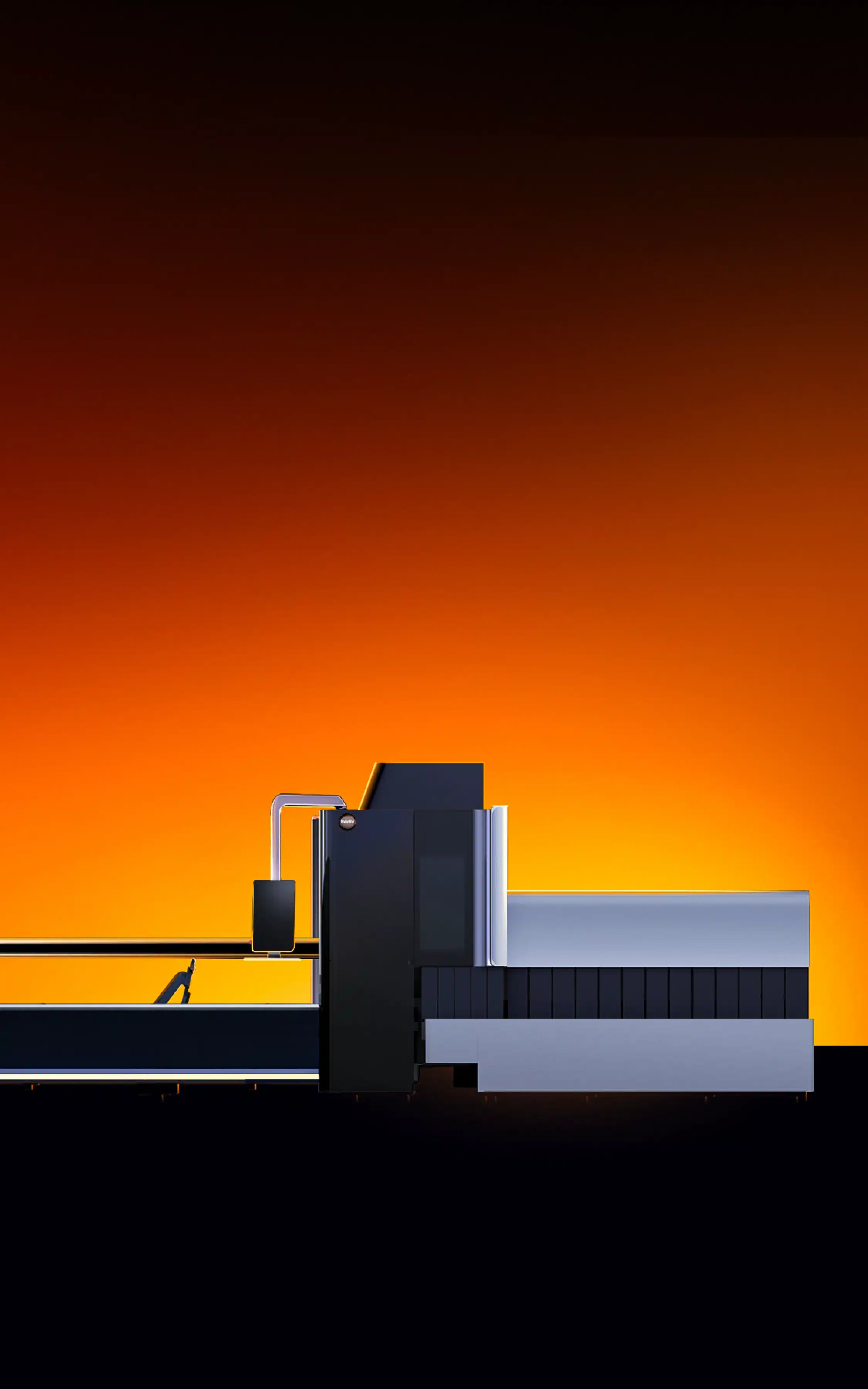

T Series

All-round fiber laser metal tube cutting machine

M230

Flagship fiber laser metal tube cutting machine

Applicable Industry
Kitchenware industry
Pipeline industry
Fitness equipment industry
Technical Data
Module Dimensions:8050*3237*2192mm10750*3230*2192mm
Weight:7600kg11200kg
Round tube size rangeΦ20-Φ230mmΦ20-Φ230mm
Square tube size range□20 – □160mm□20 – □160mm
Rectangular tube size range:200mm≥ Side length ≥20mm,Circumscribed circle diameter≤230mm200mm≥ Side length ≥20mm,Circumscribed circle diameter≤230mm
Maximum tube weight:200kg 30kg/m200kg 30kg/m
Tube loading length range:3000mm-6500mm3000mm-9200mm
Maximum load capacity of storage bin:2t3t
Maximum diameter of bundle:900mm900mm
