Servo Electric Press Brakes

Why Go Electric

The Case for Servo Drive

Servo electric press brakes aren't just hydraulic machines without the oil — they represent a fundamentally different approach to bending that delivers real production advantages.

⚡

Zero Hydraulic System

No hydraulic oil, no hoses, no seals, no pump, no oil changes. Eliminate the single largest maintenance source on a traditional press brake. The servo motor drives the ram directly — cleaner, simpler, more reliable.

📌

Up to 50% Energy Savings

A hydraulic pump runs continuously during operation regardless of whether the ram is moving. Servo motors only draw power on demand — during actual bending motion. The energy savings add up fast at production volumes.

🔇

Quieter Shop Floor

No hydraulic pump means significantly lower noise levels during both idle and active cycles. Operators work in a noticeably quieter environment — important for multi-shift production and operator wellbeing.

⏳

Faster Cycle Times

Servo motors respond instantly and accelerate faster than hydraulic systems. Approach, bending, and return speeds are all faster — delivering 35% improvement in cycle times over comparable hydraulic machines.

🎯

Higher Repeatability

Direct servo drive eliminates hydraulic pressure variation and thermal drift. The ram position is servo-controlled to micron-level precision — bend after bend, without warm-up periods or mid-shift recalibration.

🆘

Cleaner Production Area

Hydraulic oil contamination risk is eliminated. Suitable for food processing equipment fabrication, medical device manufacturing, and other industries where oil leaks pose a serious production or compliance risk.

Dener Series

Servo Electric Models

Two servo electric series from Dener — engineered for different production profiles. Both are 100% hydraulic-oil-free with servo motor direct drive.

Dener

DDM Series

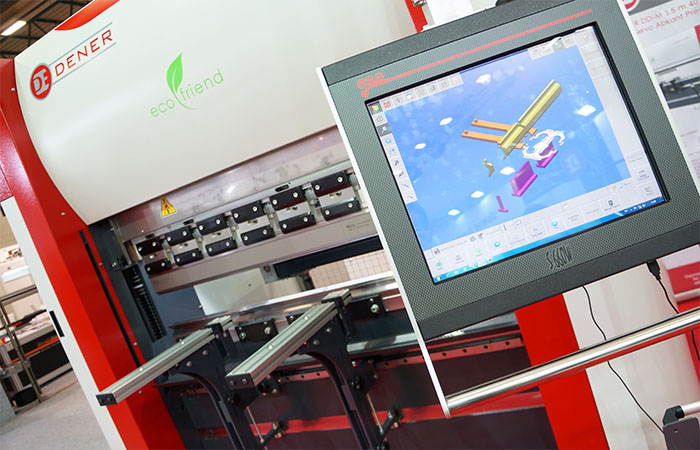

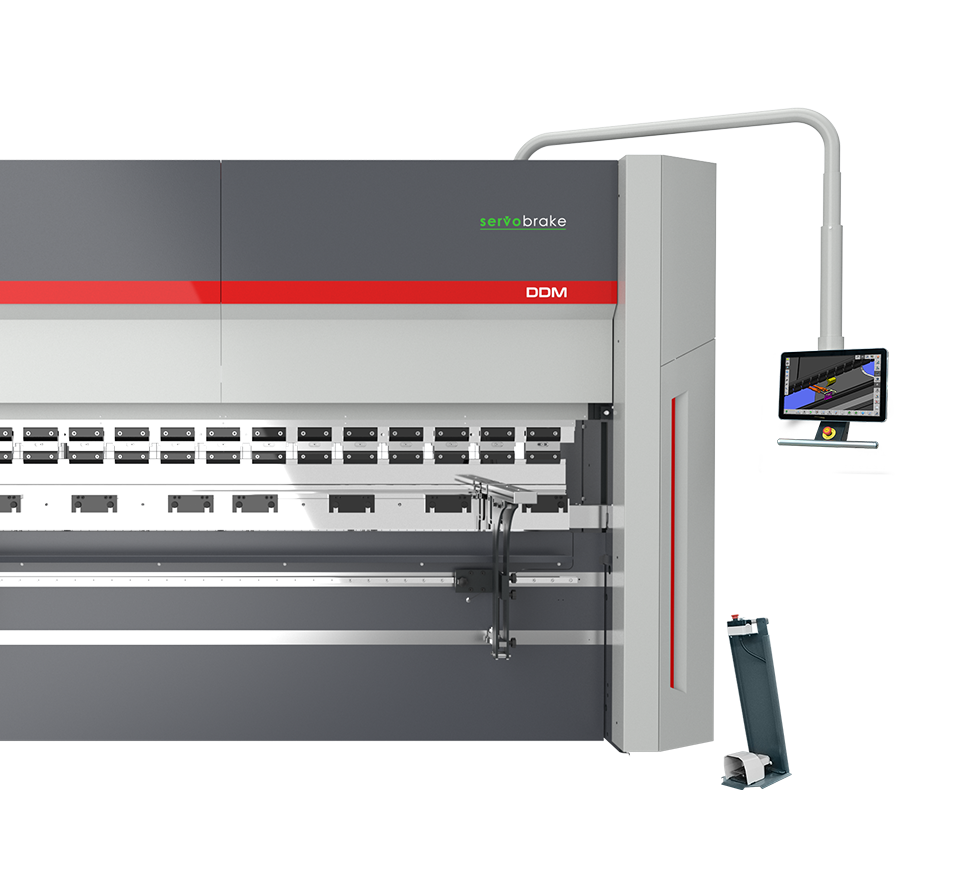

DDM Servo Electric Press Brake

The DDM (Direct Drive Motor) series is Dener's primary servo electric platform. Servo motors drive the ram directly with no mechanical transmission losses — delivering precise, repeatable bending with fast cycle times. Available in multiple tonnage and bed length configurations up to 200T.

Up to 200 T

Press force

ESA S 530

CNC control

Direct Drive

Servo motor

±0.01 mm

Repeatability

Dener

DDS Series

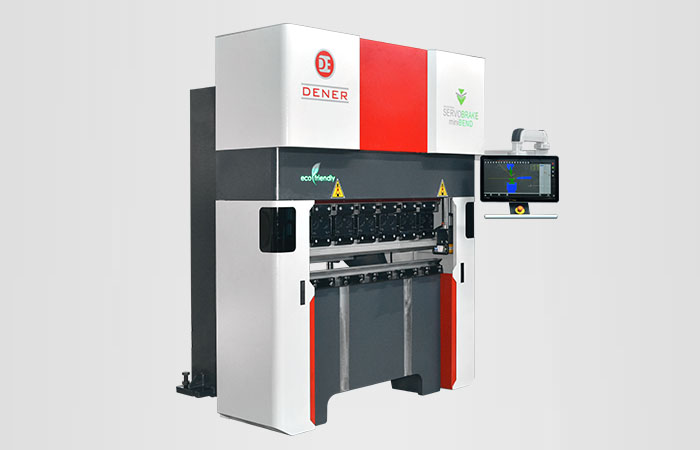

DDS Servo Electric Press Brake

The DDS series offers a compact servo electric solution for shops transitioning from hydraulic to electric drive. The same zero-oil, servo-motor precision as the DDM series in a footprint-optimized configuration. Suited for medium-volume production where floor space and energy efficiency are priorities.

Up to 100 T

Press force

ESA S 530

CNC control

Servo Drive

Zero hydraulic oil

50% Less

Energy vs. hydraulic

Gallery

Dener Servo Electric in Detail

Precision servo drive engineering — built for production reliability.

Specifications

Available Configurations

Both DDM and DDS series are available in multiple tonnage and working length combinations. Contact us for a full configuration list and pricing.

Feature	DDM Series	DDS Series
Drive Type	Servo Direct Drive	Servo Direct Drive
Press Force	40 – 200 T	30 – 100 T
Bed Length	1,300 – 4,100 mm	1,300 – 3,100 mm
CNC Control	ESA S 530	ESA S 530
Repeatability	±0.01 mm	±0.01 mm
Energy Saving	Up to 50% vs. hydraulic	Up to 50% vs. hydraulic
Hydraulic Oil	None required	None required
Back Gauge	4-axis standard	2-axis standard
Safety	Light curtain standard	Light curtain standard
Certification	CE / CSA	CE / CSA

Key Features

Built for Precision & Efficiency

🎯

ESA S 530 CNC Control

Graphical 2D programming with automatic bend sequence calculation. Program complex parts in minutes. Stores hundreds of part programs with tool and material libraries pre-loaded.

⚡

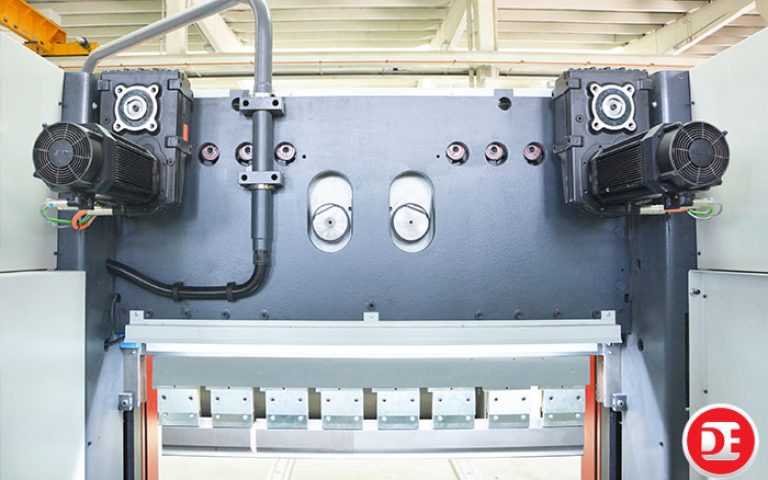

Servo Motor Direct Drive

The servo motor drives the ram directly — no hydraulic conversion, no pressure variation, no thermal drift. Ram position is servo-controlled to ±0.01 mm throughout the full stroke.

📌

Energy on Demand

Power is consumed only during actual ram movement. Idle periods and backgauge repositioning draw minimal current. Real-world energy savings of 40–50% vs. hydraulic are consistently measured in production.

🔧

4-Axis Back Gauge

Standard 4-axis (X, R, Z1, Z2) back gauge on DDM series provides precise sheet positioning for complex bending sequences. Motorized stops with position feedback ensure consistent part accuracy.

🚫

Light Curtain Safety Standard

CE and CSA certified light curtain protection included as standard. The guarding system meets EN 12622 press brake safety requirements — no additional safety upgrades required for Canadian market deployment.

📄

Servo Press Brake Catalog

Full technical specifications, dimensional drawings, and configuration options available in the Dener servo electric brochure. Download PDF

Equipment

Standard & Optional

Standard Equipment

ESA S 530 CNC control with graphical 2D programming
Servo motor direct drive — no hydraulic oil
4-axis back gauge (DDM) / 2-axis (DDS)
Light curtain safety guard (CE/CSA certified)
European-style upper punch clamping
V-die lower beam with adjustable die
Variable-speed ram control (approach/bend/return)
Front support arms for long sheet handling
LED bending area illumination

Optional Accessories

ESA S 640 2D upgrade with advanced features
6-axis back gauge expansion
Wila hydraulic top tool clamping
Sheet following system for long/thin parts
Angle measurement system (auto correction)
Offline bending software (PC-based)
Extended front support arm system
Segmented European tooling starter set
