ORBIT SERIES / CNC TUBE BENDING
ORBIT T65-C3
CNC tube bending. 3-axis CNC.
Request a quoteSpecifications

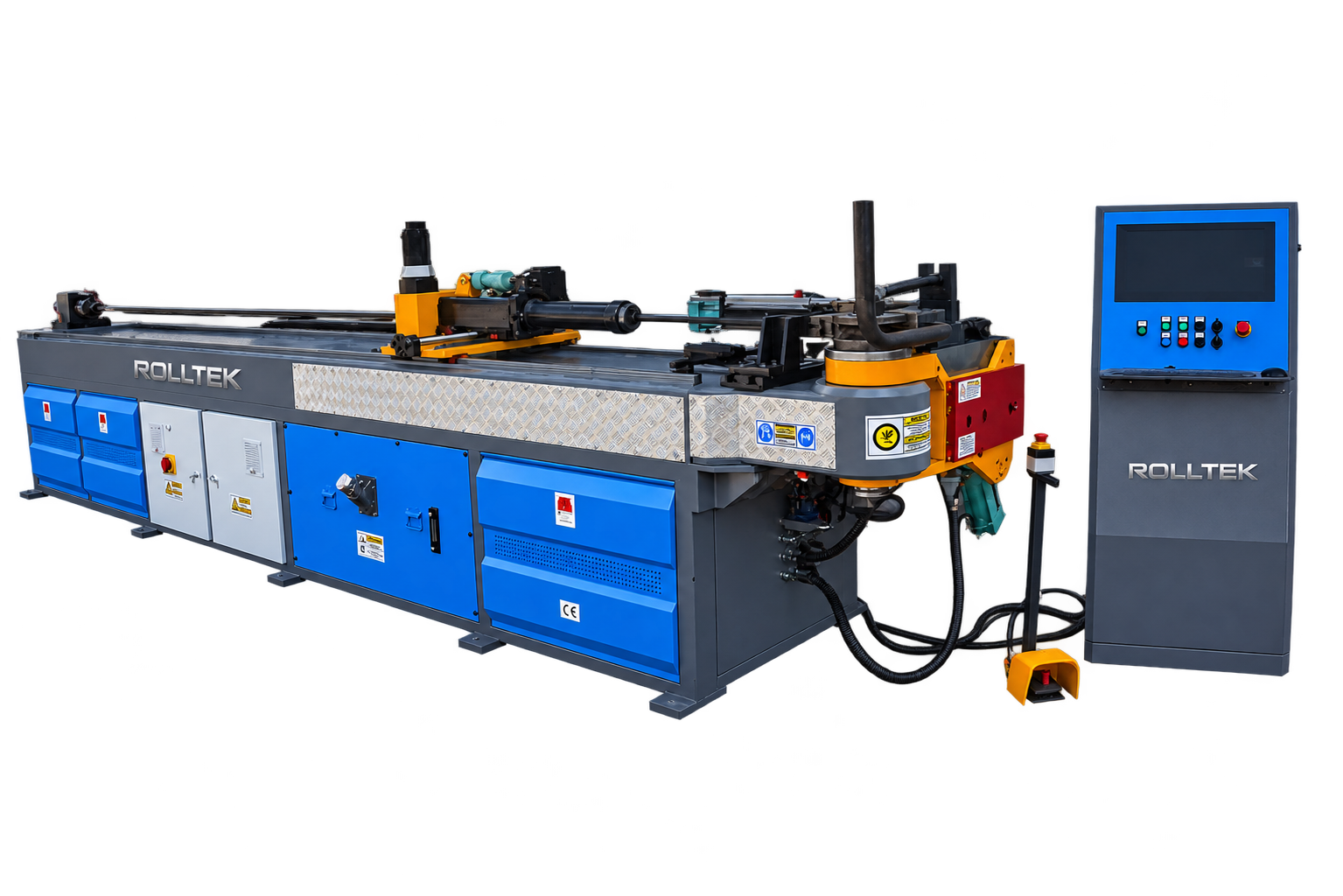

Shared family image; the exact pictured size is not identified.
3-axis CNCControl
65 mmTube OD
12 monthsWarranty
Technical specifications
| Max. tube OD | 65 mm |
|---|---|
| Max. wall thickness | 3.5 mm |
| Material basis | Mild steel |
| Max. bend radius | 250 mm |
| Max. bend angle | 190 ° |
| Loading length | 4000 mm |
| Hydraulic motor | 7.5 kW |
| Width | 1100 mm |
| Length | 5750 mm |
| Height | 1500 mm |
| Weight | 3450 kg |
| Bending speed | 85 mm/sec |
| Warranty | 12 Months Seller Warranty |
Catalogue capacities depend on material, wall thickness, bend radius and tooling. Values awaiting confirmation are omitted.
Machine configuration
- Feed 900 mm/sec
- rotation 180 mm/sec
- oil tank 120 L
- pressure 220 bar
Tooling and application review
Send your material grade, dimensions, bend radius and part drawing. Rise Tek will review the machine configuration and tooling needed for your application.
12 Months Seller Warranty
Final warranty coverage, electrical configuration, delivery and installation scope are defined in the quotation.
Compare ORBIT modelsRequest a quote for ORBIT T65-C3
Tell us about your material, part dimensions and production needs.
