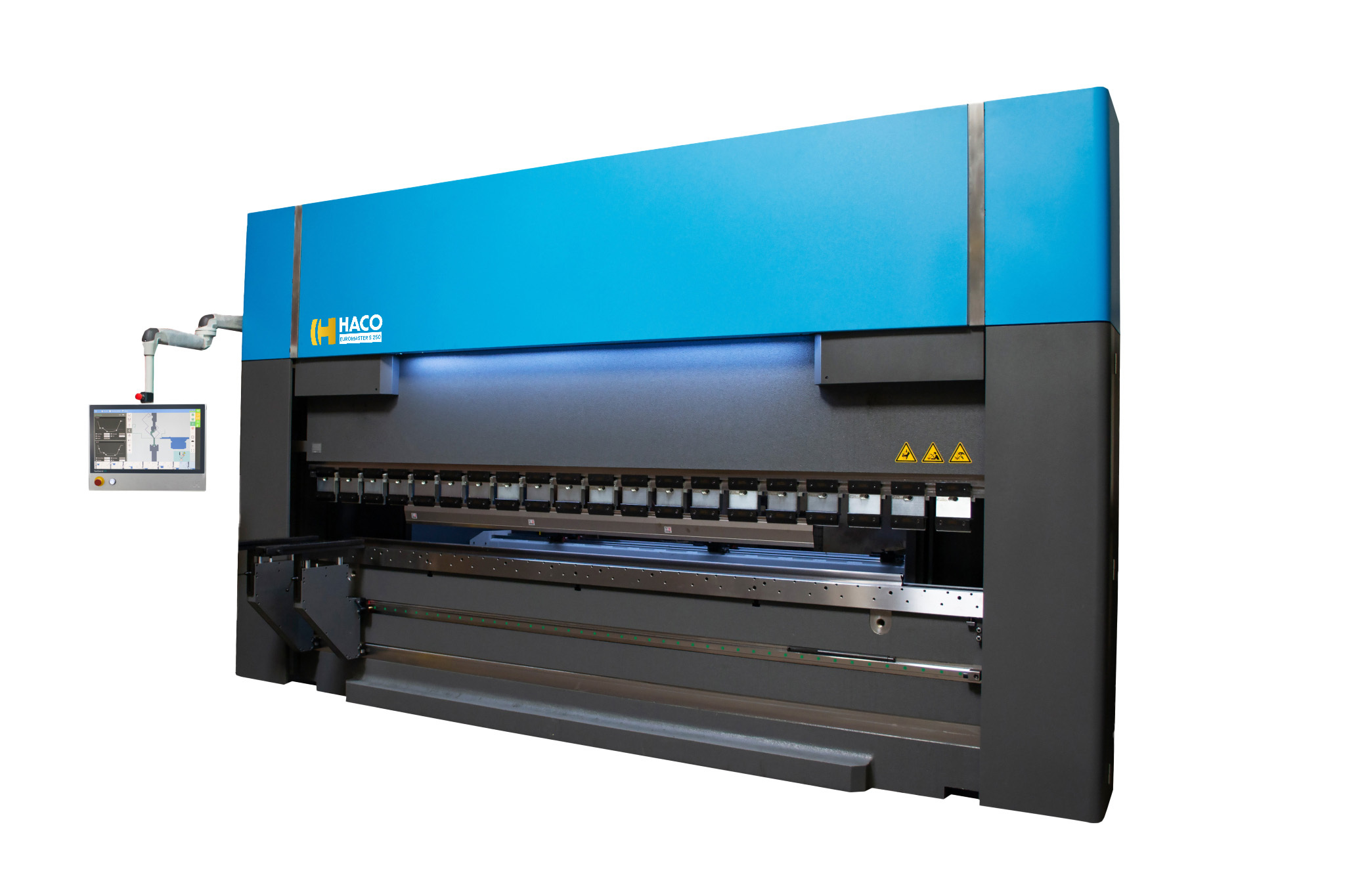

HACO EuroMaster S Hydraulic Press Brake | RiseTek Machinery Canada

⚡
75–400 T
Press Force Range
📏
2,100–6,000 mm
Bending Length
🖥
FASTBEND-2D MT
Advanced Multi-Touch
🇪🇺
Made in Europe
Premium Grade

EuroMaster S Brochure

Download the full specification brochure with technical data, standard and optional equipment details.

EuroMaster S Brochure

Control System

FASTBEND-2D MT Advanced Control

The EuroMaster S is equipped with the FASTBEND-2D MT — HACO’s advanced multi-touch bending controller. Designed for high-speed operation and precision programming, it delivers a complete bending solution with intuitive 2D drafting, automatic program generation, and seamless offline integration.

Advanced multi-touch control interface
Intuitive 2D graphic bending programming
Automatic bend sequence calculation
Step-by-step bend visualization preview
On-machine and offline programming capability
Fast data processing with PC-based hardware
Integrated tool and material database

Equipment

Standard & Optional Equipment

The most comprehensive standard configuration in the HACO lineup, with the widest range of optional upgrades available.

Standard Equipment

Included with every EuroMaster S

FASTBEND-2D MT advanced multi-touch graphic control
Increased daylight, stroke, and gap dimensions

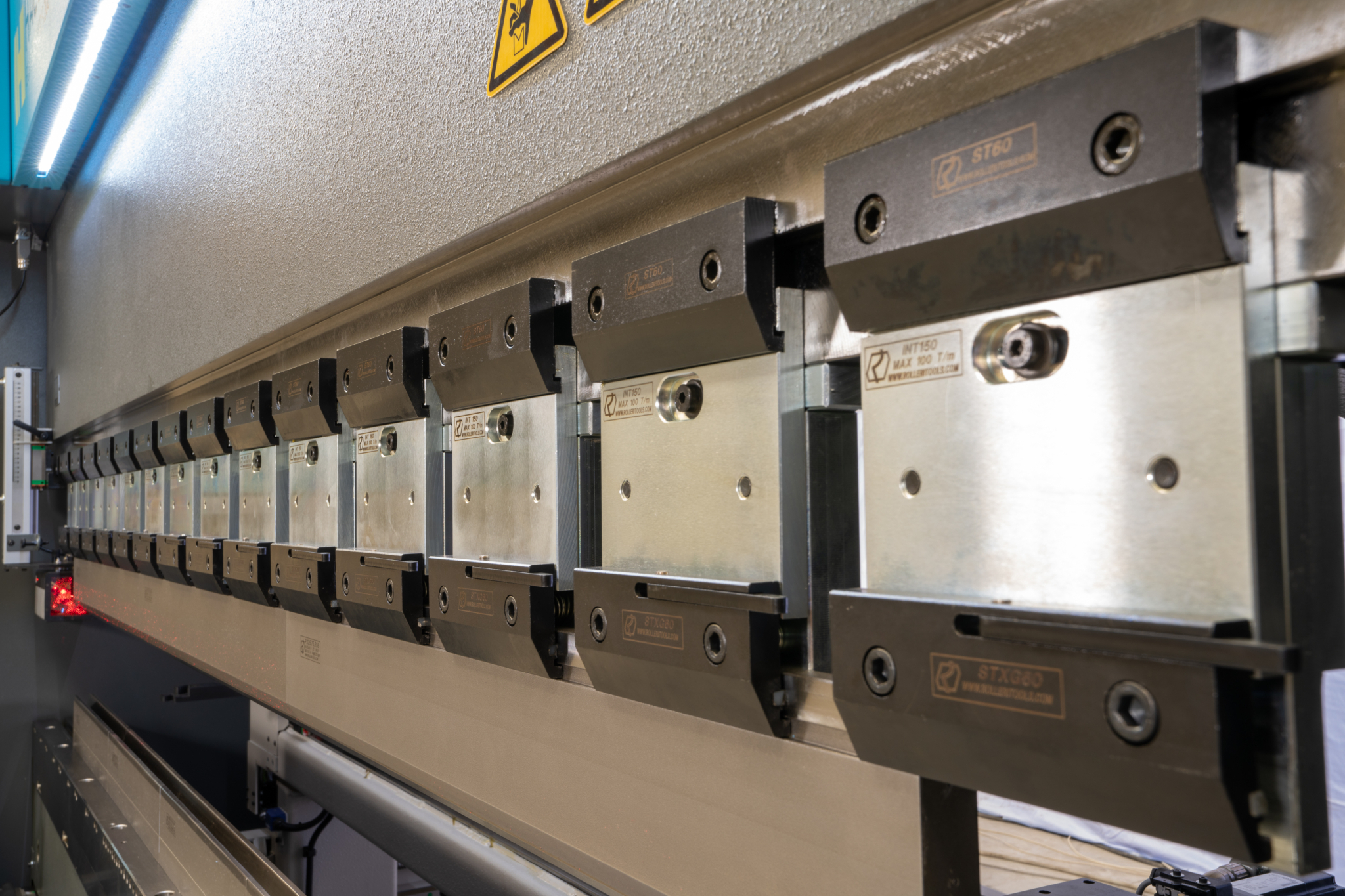

European Standard (ES) hydraulic top tool clamping
Table for ES dies with NS mono V die capability

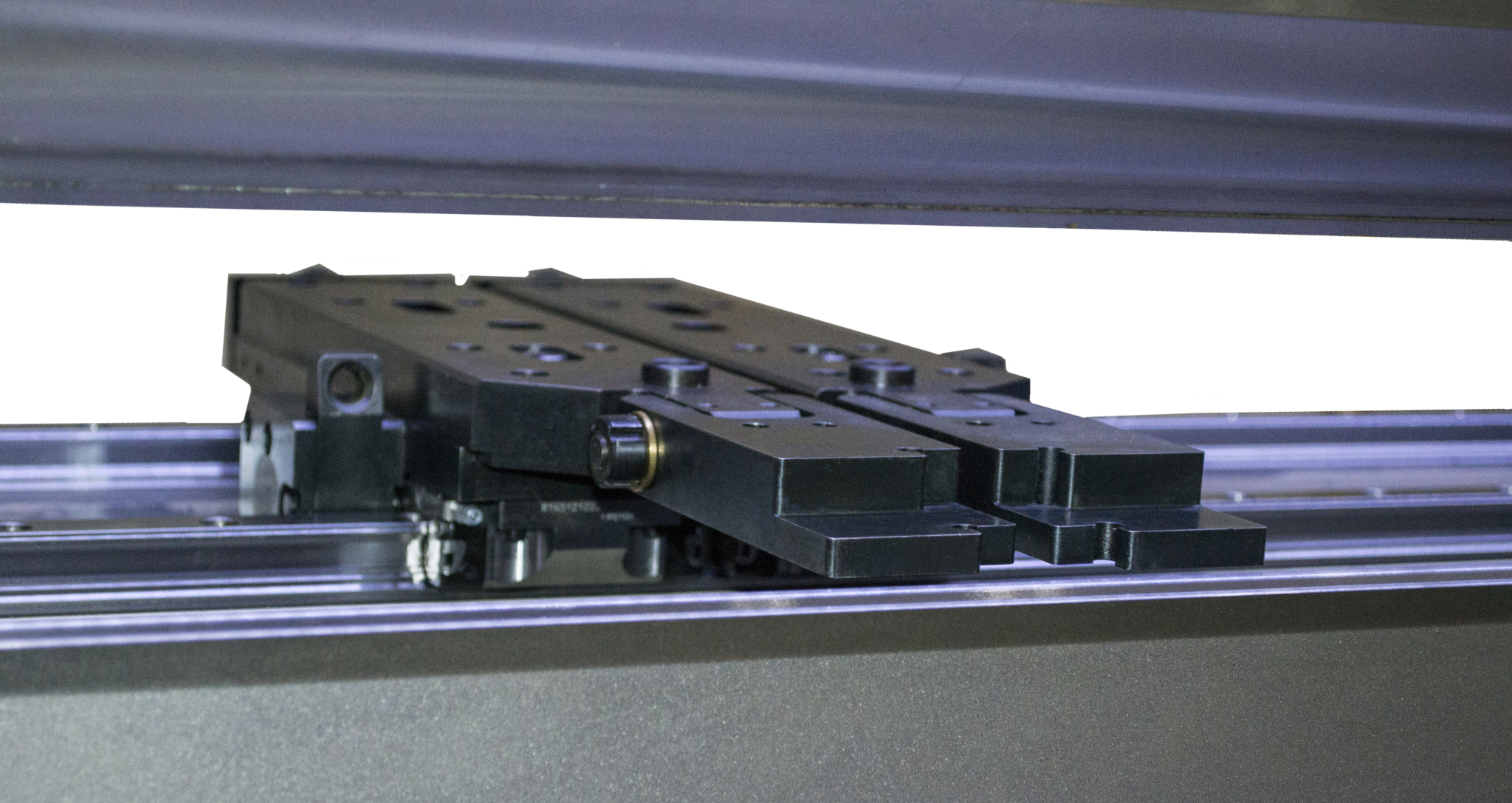

X-R backgauge as standard (expandable to X-R-Z1-Z2)
DSP and FIESSLER AKAS LC-II M light curtain
Tandem-ready mechanical and electrical preparation
HACO quality certificate and CE marking

Optional Equipment

Widest upgrade range in the HACO lineup

Alternative ES quick clamps (ROL1 CLAMP3, ROL200, manual/pneumatic/hydraulic)
Manual or CNC crowning table
Optical light protection upgrades (DSP / FIESSLER AKAS)

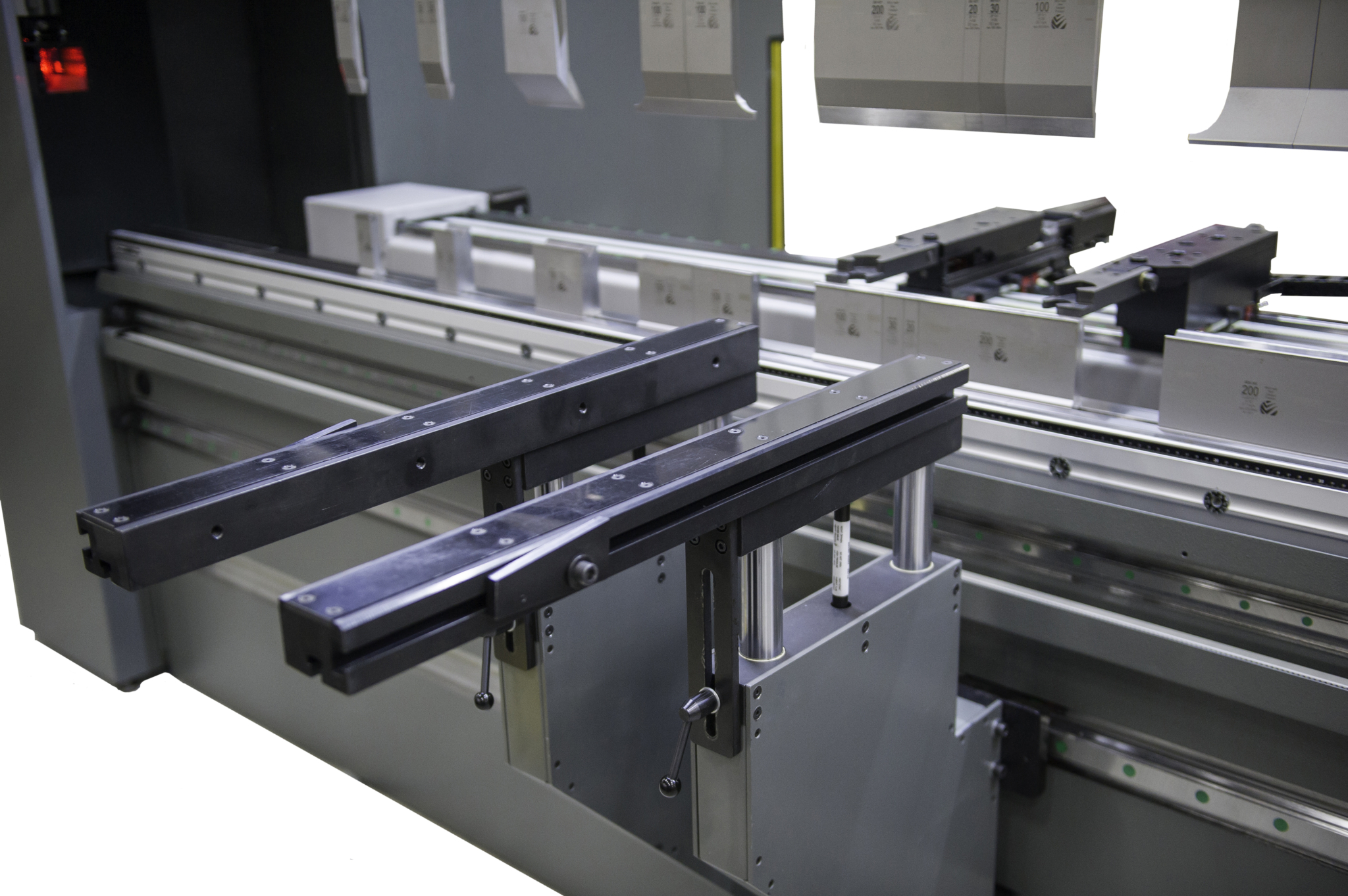

Two 750 mm front support arms on linear guideway
Parking station for support arms
HACOBEND Pro offline bending software
Extended backgauge X-R-Z1-Z2 (4-axis)
Pneumatic or hydraulic sheet followers
Angle measurement system
Automated tool changer
Tandem synchronization kit (two-machine linking)
Safety laser scanner (alternative to light curtain)
Custom tooling packages (punches and dies)

Technical Specifications

Full Specifications

35 configurations across 7 tonnage groups from 75 to 400 ton. Scroll horizontally to view all columns.

⚙ 75 Ton — 750 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
20075	2,100 mm	750	1,600 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11	2,450 mm	1,600 mm	2,650 mm	5,600 kg
25075	2,600 mm	750	2,100 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11	2,950 mm	1,600 mm	2,650 mm	6,800 kg
30075	3,100 mm	750	2,600 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11	3,450 mm	1,650 mm	2,700 mm	7,700 kg

⚙ 100 Ton — 1,000 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
25100	2,600 mm	1,000	2,100 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11	2,950 mm	1,650 mm	2,750 mm	7,200 kg
30100	3,100 mm	1,000	2,600 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11	3,450 mm	1,650 mm	2,750 mm	8,400 kg
36100	3,650 mm	1,000	3,150 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11	4,000 mm	1,700 mm	2,800 mm	10,400 kg
40100	4,100 mm	1,000	3,150 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11	4,450 mm	1,700 mm	2,800 mm	10,600 kg
43100	4,300 mm	1,000	3,750 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11	4,650 mm	1,700 mm	2,800 mm	11,800 kg

⚙ 150 Ton — 1,500 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
25150	2,600 mm	1,500	2,100 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	2,950 mm	1,700 mm	2,900 mm	7,800 kg
30150	3,100 mm	1,500	2,600 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	3,450 mm	1,700 mm	2,900 mm	9,200 kg
36150	3,660 mm	1,500	3,150 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	4,010 mm	1,750 mm	2,950 mm	11,000 kg
40150	4,100 mm	1,500	3,150 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	4,450 mm	1,750 mm	2,950 mm	11,200 kg
43150	4,300 mm	1,500	3,750 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	4,650 mm	1,750 mm	2,950 mm	13,200 kg

⚙ 200 Ton — 2,000 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
25200	2,600 mm	2,000	2,100 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	2,950 mm	1,750 mm	3,050 mm	9,600 kg
30200	3,100 mm	2,000	2,600 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	3,450 mm	1,750 mm	3,050 mm	10,700 kg
36200	3,660 mm	2,000	3,150 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	4,010 mm	1,800 mm	3,100 mm	12,200 kg
40200	4,100 mm	2,000	3,150 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	4,450 mm	1,800 mm	3,100 mm	13,100 kg
43200	4,300 mm	2,000	3,750 mm	920 mm	200 mm/s	8 mm/s	120 mm/s	18.7	4,650 mm	1,800 mm	3,100 mm	13,100 kg
46200	4,600 mm	2,000	4,100 mm	945 mm	130 mm/s	8 mm/s	120 mm/s	18.7	4,950 mm	1,850 mm	3,150 mm	16,400 kg

⚙ 250 Ton — 2,500 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
30250	3,100 mm	2,500	2,600 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7	3,450 mm	1,900 mm	3,300 mm	17,500 kg
36250	3,660 mm	2,500	3,150 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7	4,010 mm	1,900 mm	3,300 mm	13,900 kg
40250	4,100 mm	2,500	3,150 mm	895 mm	100 mm/s	8 mm/s	90 mm/s	18.7	4,450 mm	1,950 mm	3,350 mm	15,300 kg
43250	4,300 mm	2,500	3,750 mm	895 mm	100 mm/s	8 mm/s	90 mm/s	18.7	4,650 mm	1,950 mm	3,350 mm	16,700 kg
50250	5,000 mm	2,500	4,050 mm	945 mm	100 mm/s	8 mm/s	90 mm/s	18.7	5,350 mm	2,000 mm	3,400 mm	23,800 kg
60250	6,000 mm	2,500	5,050 mm	1,090 mm	100 mm/s	8 mm/s	90 mm/s	18.7	6,350 mm	2,050 mm	3,500 mm	30,500 kg

⚙ 320 Ton — 3,200 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
30320	3,100 mm	3,200	2,600 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5	3,450 mm	2,000 mm	3,450 mm	17,000 kg
36320	3,660 mm	3,200	3,150 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5	4,010 mm	2,050 mm	3,500 mm	20,000 kg
40320	4,100 mm	3,200	3,150 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5	4,450 mm	2,050 mm	3,500 mm	21,000 kg
43320	4,300 mm	3,200	3,750 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5	4,650 mm	2,100 mm	3,550 mm	24,500 kg
50320	5,000 mm	3,200	4,050 mm	940 mm	100 mm/s	8 mm/s	95 mm/s	22.5	5,350 mm	2,150 mm	3,600 mm	27,500 kg
60320	6,000 mm	3,200	5,050 mm	1,095 mm	100 mm/s	8 mm/s	95 mm/s	22.5	6,350 mm	2,200 mm	3,700 mm	32,500 kg

⚙ 400 Ton — 4,000 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Length	Width	Height	Weight
30400	3,100 mm	4,000	2,600 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	3,450 mm	2,200 mm	3,700 mm	25,000 kg
36400	3,660 mm	4,000	3,150 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	4,010 mm	2,250 mm	3,750 mm	29,000 kg
40400	4,100 mm	4,000	3,150 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	4,450 mm	2,250 mm	3,750 mm	31,000 kg
43400	4,300 mm	4,000	3,150 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	4,650 mm	2,250 mm	3,750 mm	32,000 kg
