HACOEntry Level · Hydraulic Press Brake

OptiForm

CNC Hydraulic Press Brake

Efficiency redefined for today’s manufacturers. OptiForm combines European-built quality, intuitive EASYBEND 2D multi-touch control, and advanced safety features in a compact, operator-friendly design.

Request a Quote Download Brochure Technical Specs

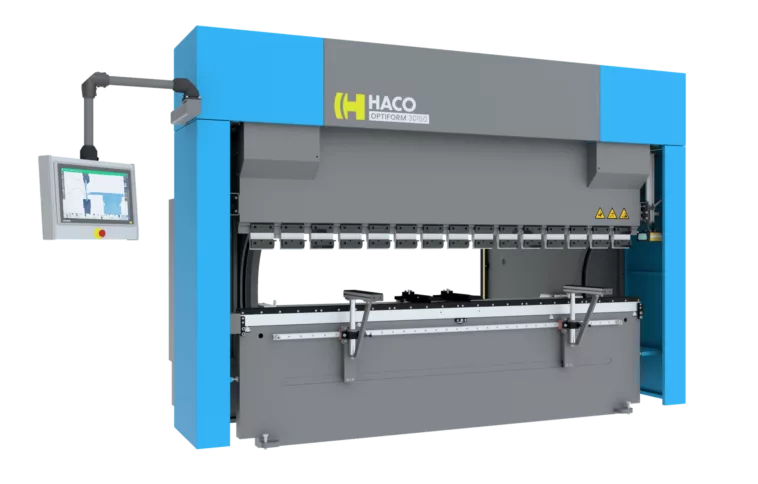

HACO OptiForm
⚡
150–250 T
Press Force
📏
2,600–4,100 mm
Bending Length
🖥
EASYBEND
2D Multi-Touch
🇪🇺
Made in Europe
European Built
OptiForm Brochures & Data Sheets
Download product brochures with full specifications, dimensions, and configuration options.

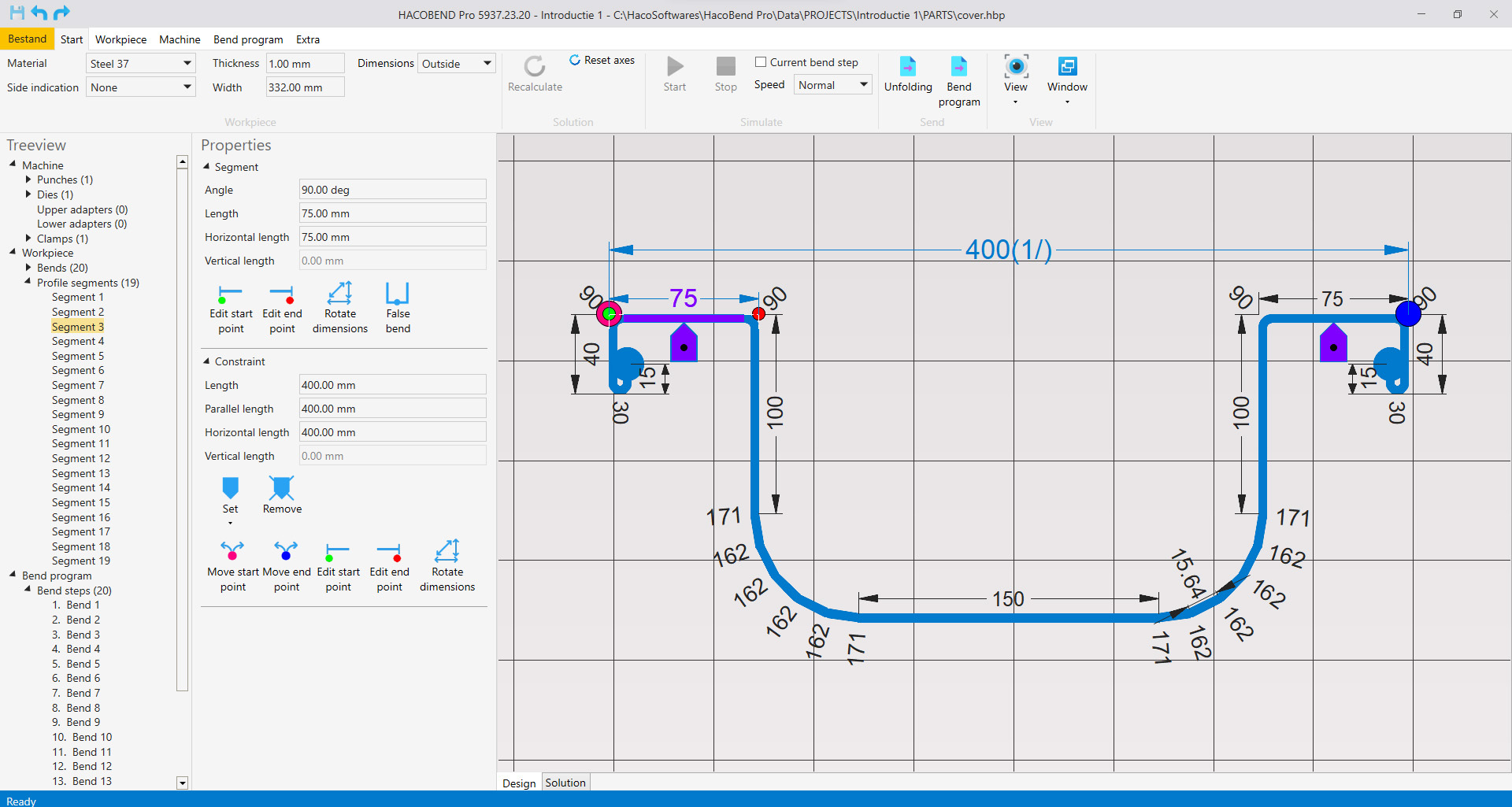

OptiForm Brochure OptiForm 30150 Data Sheet HACOBEND Pro 2D Software

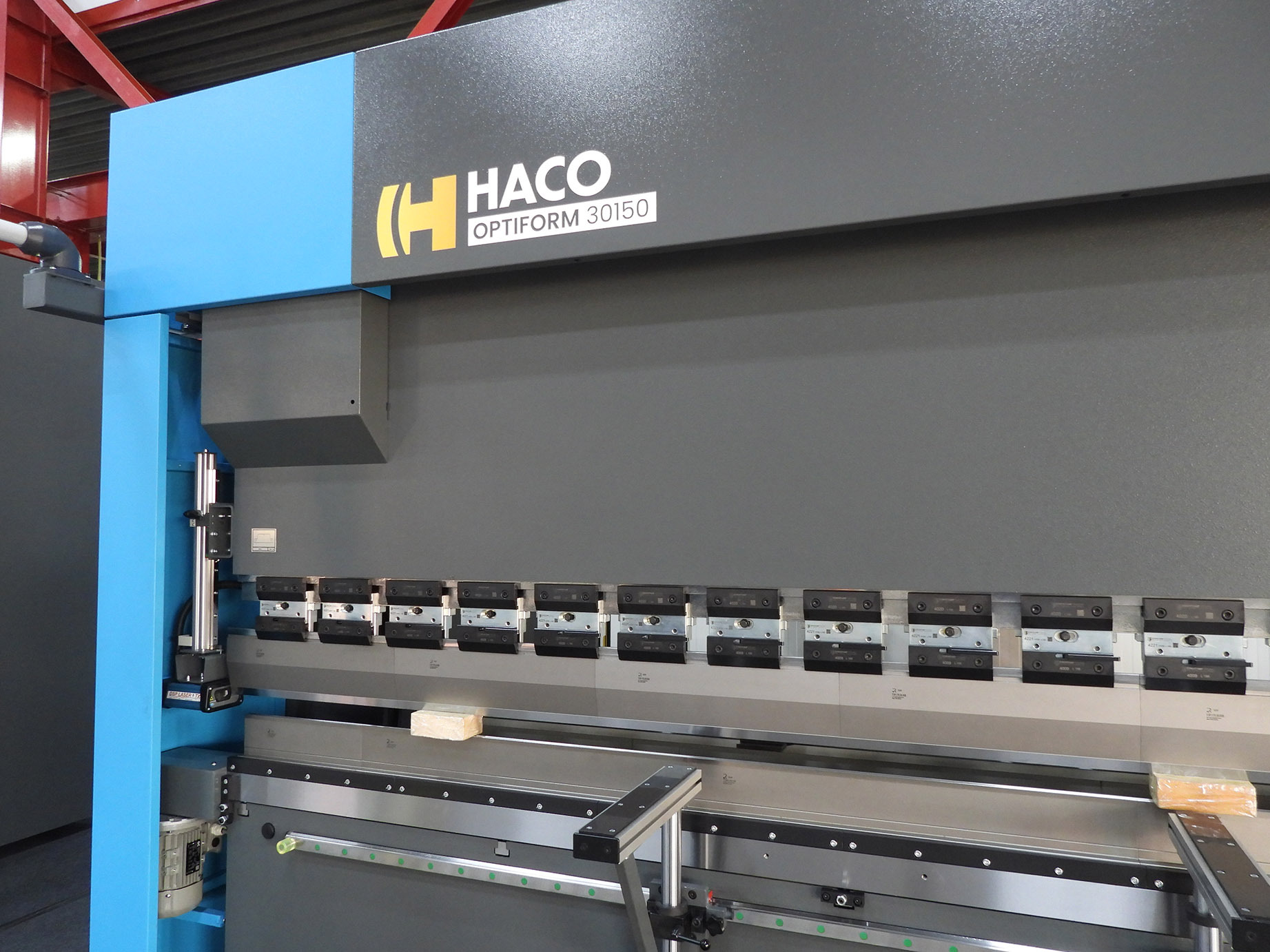

HACO OptiForm

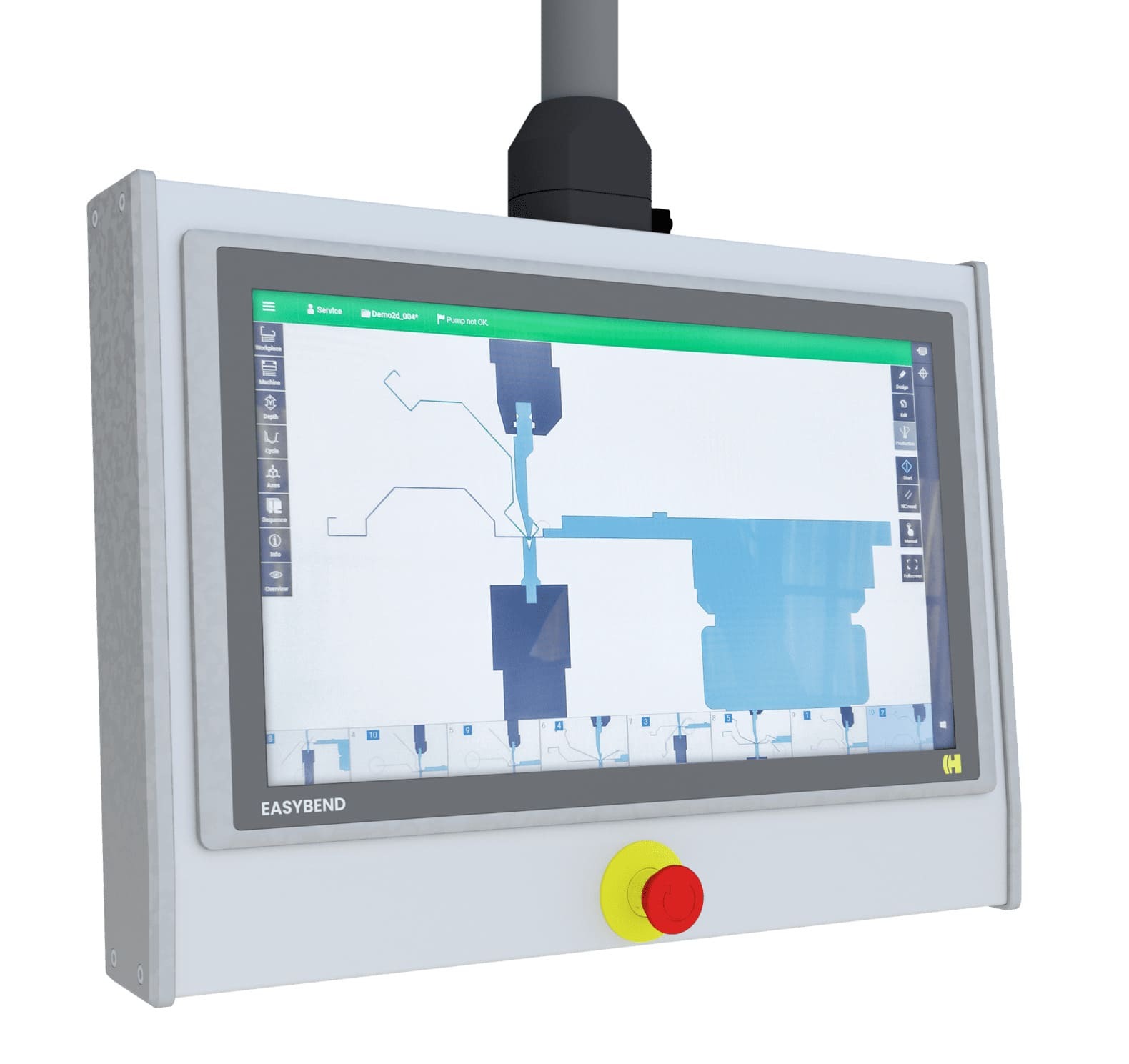

EASYBEND Control

Control System

EASYBEND 2D Multi-Touch Control

Advanced 2D software with PC hardware for high-precision bending. On-machine or offline programming.

  • Advanced 2D software with PC hardware
  • Smart Draft for fast programming
  • Step Previewer for bend sequence
  • On-machine or offline creation
  • Multi-touch interface

Versions

Basic & Plus Configurations

Same European frame and EASYBEND control.

Basic

OptiForm Basic

Manual crowning, 2-axis backgauge (X, R).

+ Version

OptiForm +

CNC crowning, 4-axis backgauge (X, R, Z1, Z2).

Equipment

Standard & Optional Equipment

Comprehensive standard package with upgrades available.

Standard Equipment

Included with every OptiForm

  • EASYBEND 2D multi-touch control
  • Top tooling 100/150 mm clamp height
  • ES Quick Clamp or Universal Fast Clamp
  • Self-centering table for ES die types
  • DSP light curtain safety (20 mm)
  • Backgauge fingers with 3 contact surfaces
  • 1,000 mm stop position from bend line
  • Front and rear LED strip lighting
  • 2-axis backgauge (X, R) on Basic
  • Manual crowning on Basic version

Optional Equipment

Available upgrades

  • CNC crowning (included in + version)
  • 4-axis X-R-Z1-Z2 (included in + version)
  • Front support arms (430 mm)
  • Air-conditioned electrical cabinet
  • HACOBEND Pro 2D offline software
  • Additional tooling configurations

Machine Details

Up Close

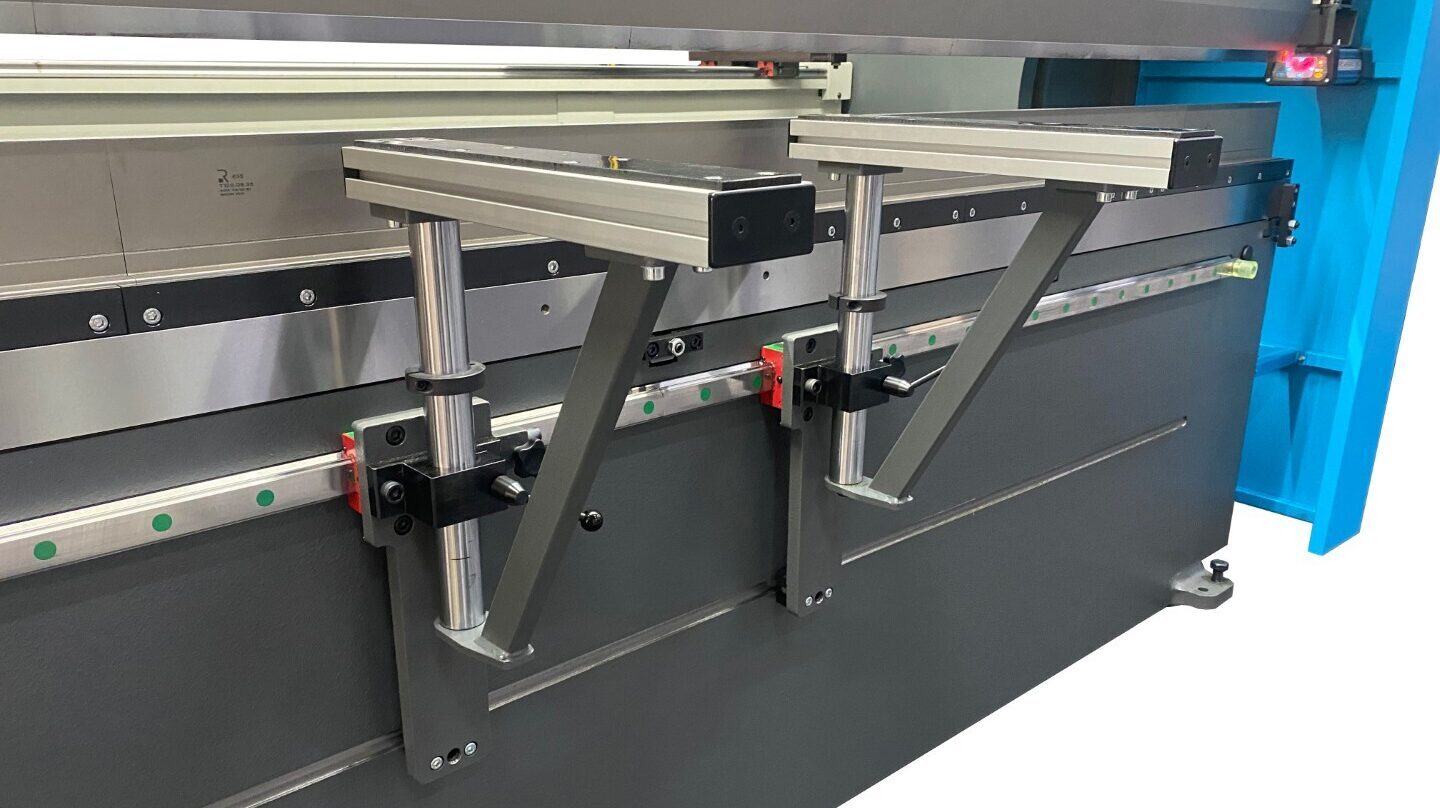

Front supports
Software

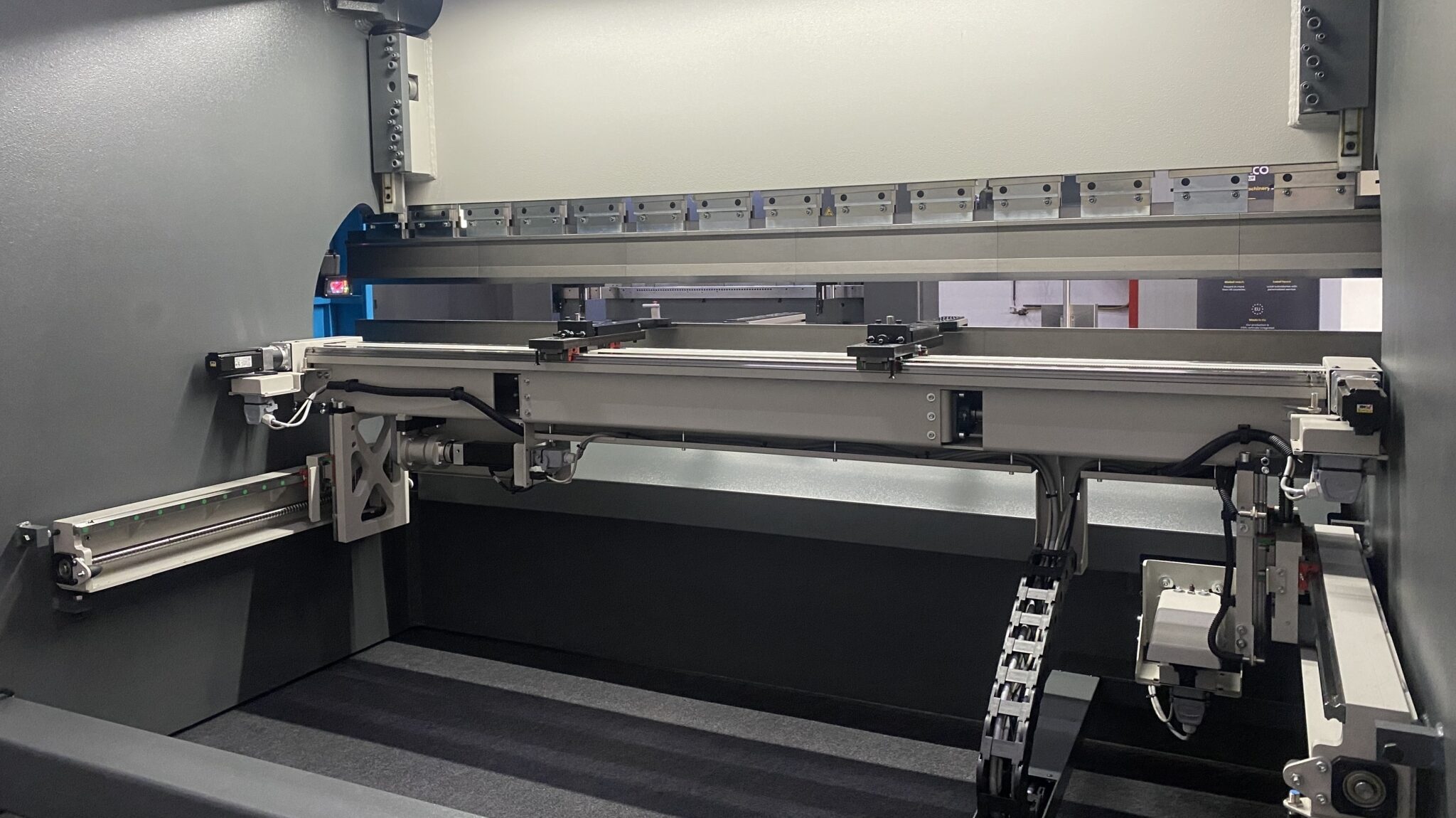

Backgauge
Finger

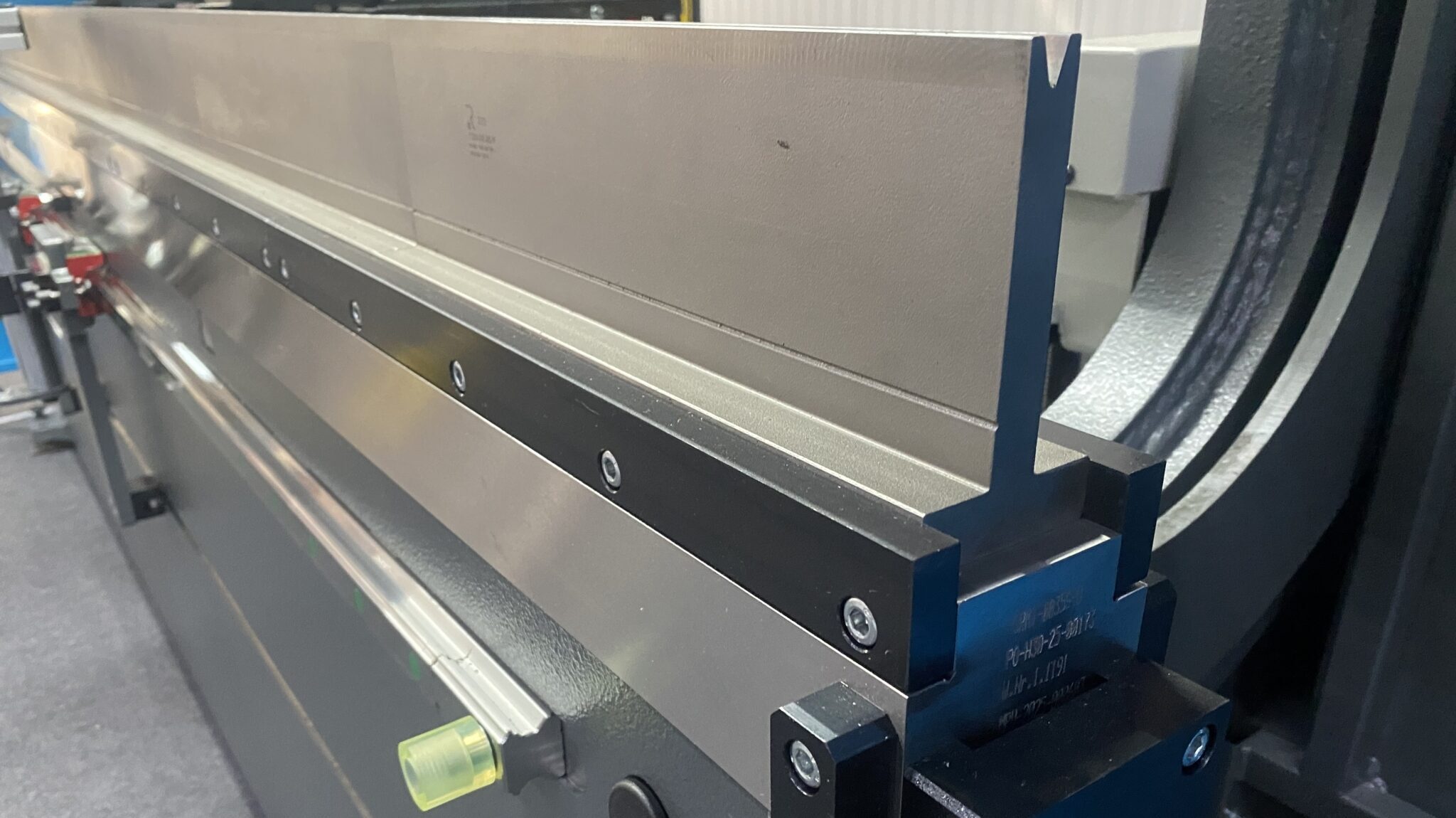

Clamp

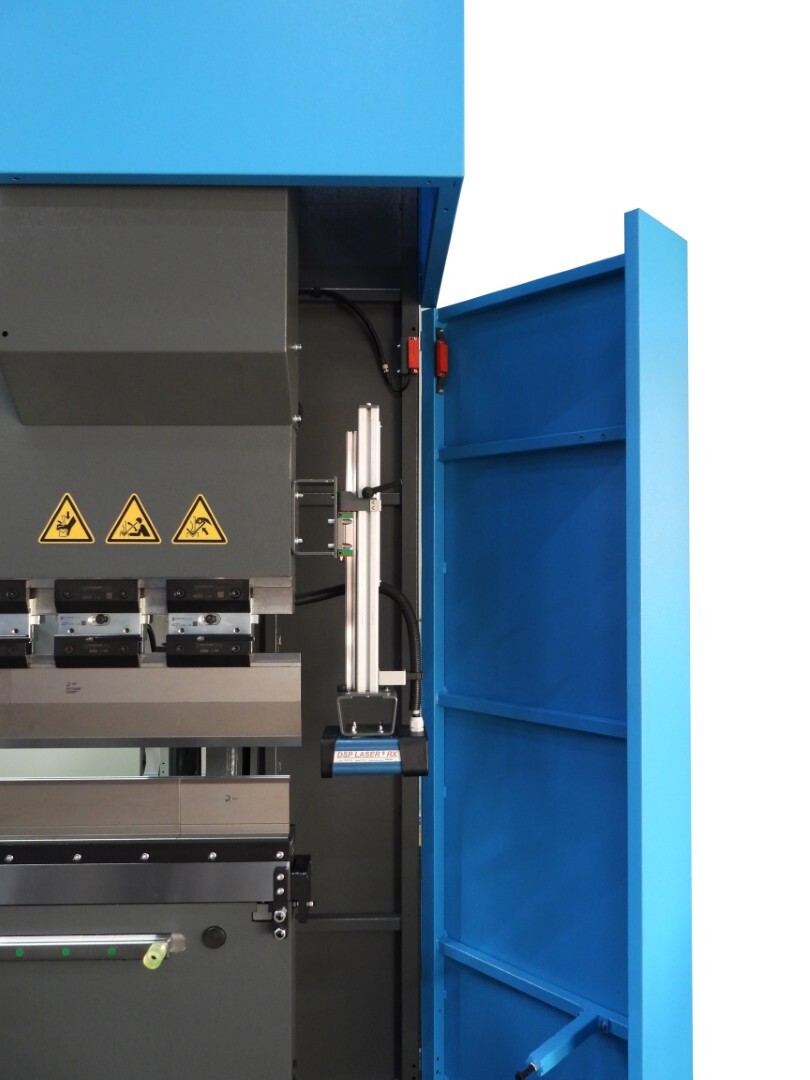

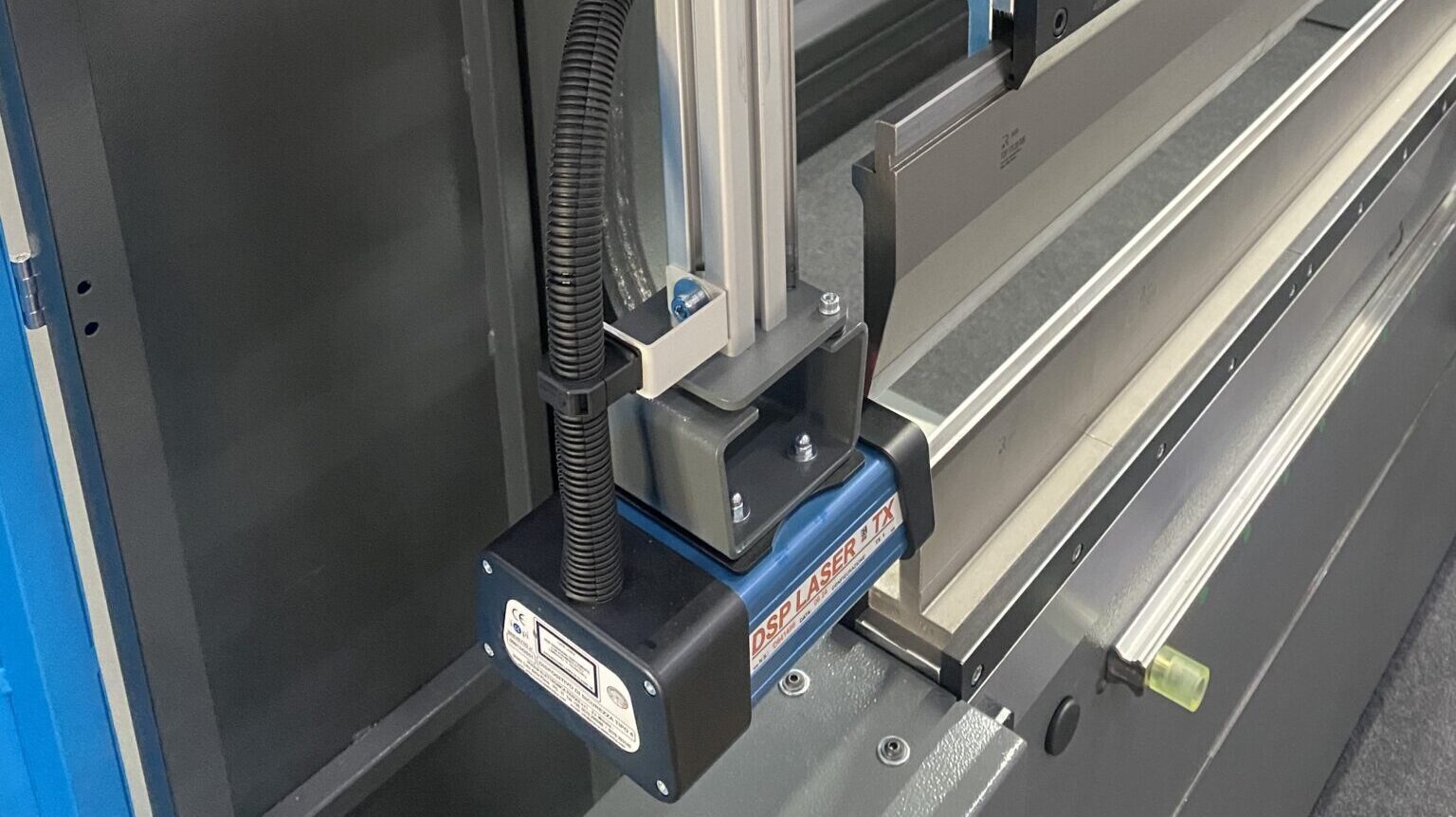

Safety

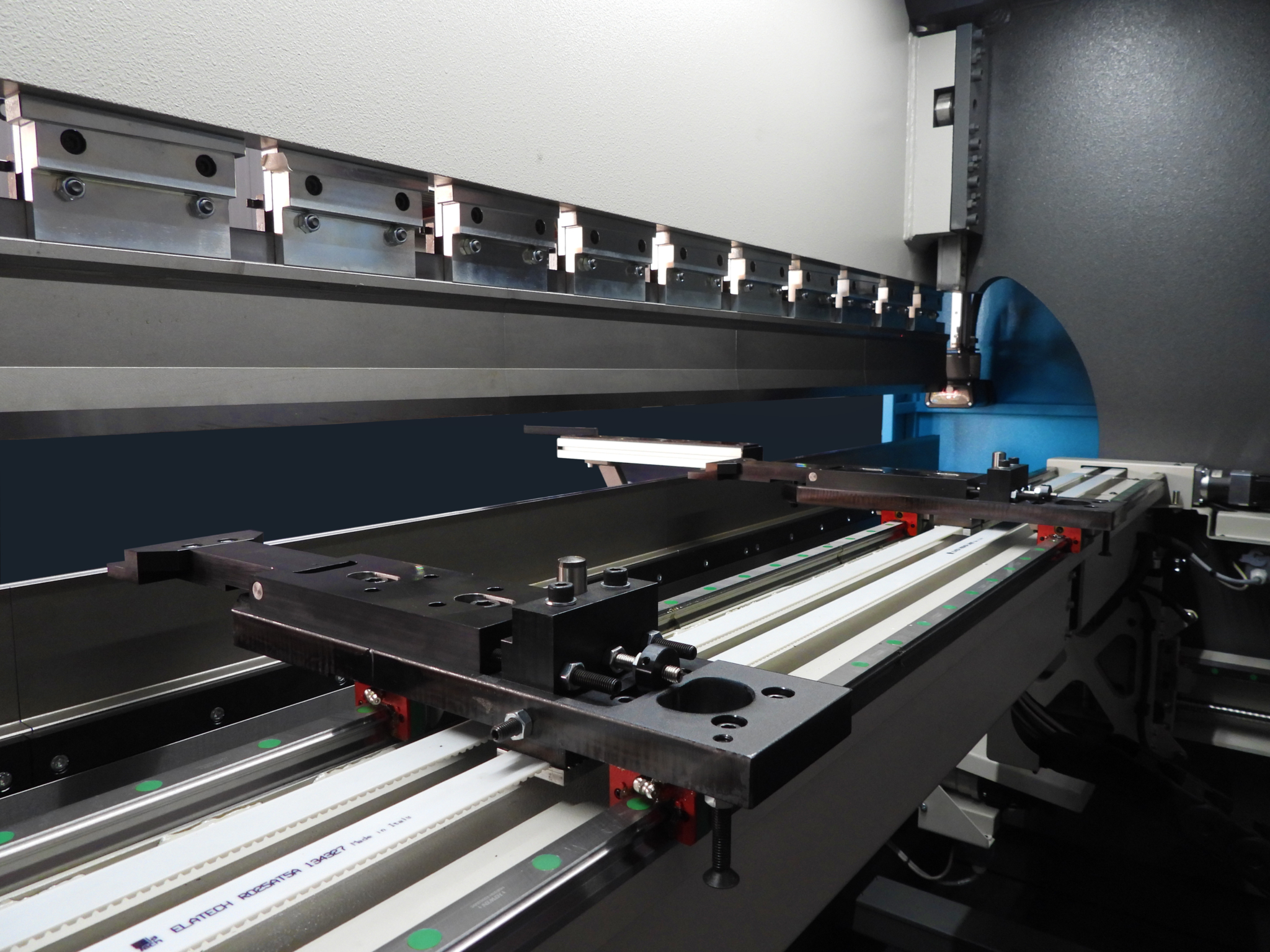

Front support arms & backgauge

Technical Specifications

Full Specifications

⚙ Machine
Specification3015040250
Press Force1,500 kN2,500 kN
Bending Length2,600 mm4,100 mm
Between Side Plates2,600 mm3,150 mm
Max Open Height480 mm480 mm
Effective Open Height380 mm380 mm
Table Height850 mm900 mm
Throat Gap400 mm400 mm
Motor Power15 kW18.5 kW
CrowningManual / CNC (+)Manual / CNC (+)
ControlEASYBENDEASYBEND
💨 Speed
Axis3015040250
Y-axis Fast Down180 mm/s130 mm/s
Y-axis Work10 mm/s8 mm/s
Y-axis Return125 mm/s85 mm/s
X-axis400 mm/s400 mm/s
R-axis62.5 mm/s62.5 mm/s
Z1/Z2-axis1,000 mm/s1,000 mm/s
📐 Dimensions
Dimension3015040250
Width3,795 mm4,770 mm
Height2,545 mm2,850 mm
Depth1,705 mm1,930 mm
Weight8,300 kg14,000 kg

Interested in the OptiForm?

Get a Custom Quote

Competitive quote within 24 hours.

Call 905-487-3464

Frequently Asked Questions

What tonnage and bending length does the HACO OptiForm offer?
The OptiForm is available in two models: the 30150 with 1,500 kN (150 T) press force and 2,600 mm bending length, and the 40250 with 2,500 kN (250 T) press force and 4,100 mm bending length.
What is the difference between OptiForm Basic and OptiForm + versions?
Both versions share the same European frame and EASYBEND control. OptiForm Basic includes manual crowning and a 2-axis backgauge (X, R). OptiForm + upgrades to CNC crowning and a 4-axis backgauge (X, R, Z1, Z2).
What is the EASYBEND 2D multi-touch control system?
EASYBEND is an advanced 2D control software running on PC hardware for high-precision bending. It includes Smart Draft for fast programming, a Step Previewer for reviewing the bend sequence, a multi-touch interface, and supports both on-machine and offline program creation.
What safety features are included on the OptiForm?
The OptiForm includes DSP light curtain safety with 20 mm resolution as standard, along with backgauge fingers featuring three contact surfaces and front and rear LED strip lighting for improved visibility around the bend area.
What standard equipment comes with the OptiForm?
Standard equipment includes the EASYBEND 2D multi-touch control, top tooling with 100/150 mm clamp height, ES Quick Clamp or Universal Fast Clamp, a self-centering table for ES die types, DSP light curtain safety (20 mm), backgauge fingers with 3 contact surfaces, a 1,000 mm stop position from the bend line, and front and rear LED strip lighting.
What optional upgrades are available for the OptiForm?
Options include CNC crowning and the 4-axis X-R-Z1-Z2 backgauge (both included standard on the + version), front support arms (430 mm), an air-conditioned electrical cabinet, HACOBEND Pro 2D offline programming software, and additional tooling configurations.
