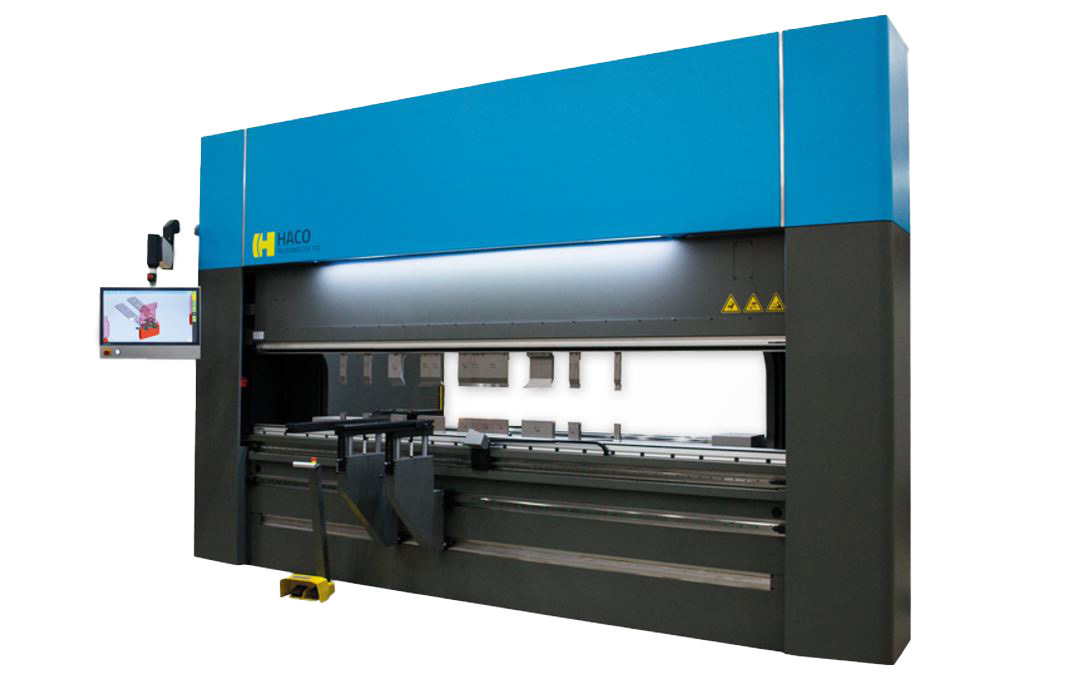

Name: HACO PressMaster CNC Hydraulic Press Brake
Brand: HACO
Availability: InStock

Control System

FASTBEND-3D MT 24″ Control

The PressMaster is equipped with HACO’s flagship FASTBEND-3D MT 24″ — the most advanced control in the HACO lineup. The large 24″ multi-touch screen delivers full 3D part simulation, automatic bend sequence optimization, and complete offline programming integration.

24″ large format multi-touch display
Full 3D graphic part programming and simulation
Automatic bend sequence optimization
3D collision detection in simulation
Seamless offline programming with HACOBEND Pro
Automatic tool selection and placement
Material springback compensation
Step-by-step bend visualization with operator guidance
Production reporting and cycle time monitoring

Equipment

Standard & Optional Equipment

The most complete standard configuration in the HACO press brake lineup — everything needed for high-precision production, included as standard.

Standard Equipment

Included with every PressMaster

FASTBEND-3D MT 24″ advanced multi-touch 3D control
Increased daylight, stroke, and gap vs. EuroMaster S

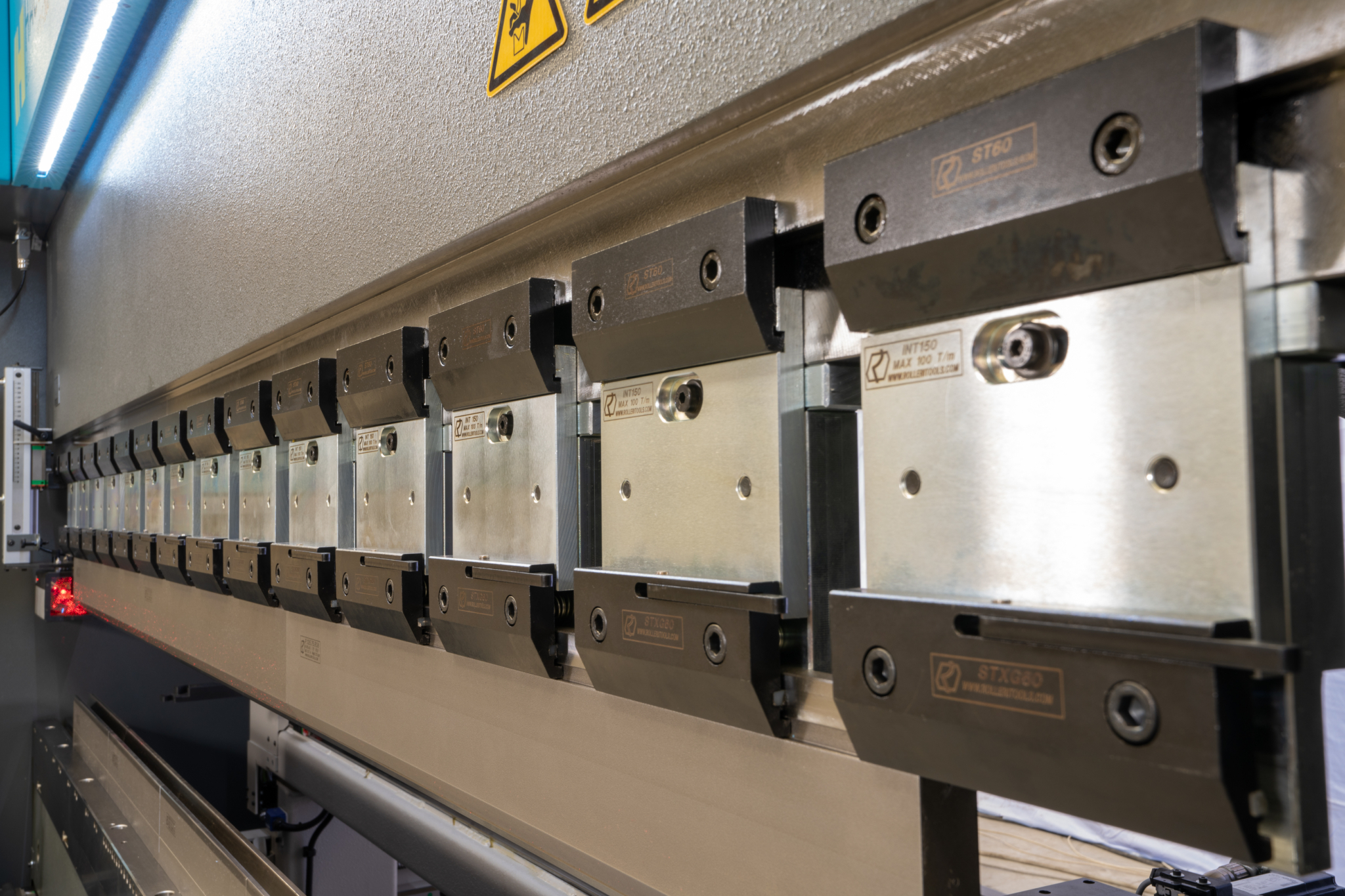

European Standard (ES) hydraulic top tool clamping
Table for ES dies with NS mono V die capability
X-R-Z1-Z2 backgauge (4-axis standard — not an upgrade)
DSP and FIESSLER AKAS LC-II M light curtain
Tandem-ready mechanical and electrical preparation
CNC crowning table (standard)
Two front support arms with linear guideway (standard)
HACOBEND Pro offline programming software (standard)
HACO quality certificate and CE marking

Optional Equipment

Further upgrade options available

Alternative ES quick clamps (ROL1 CLAMP3, ROL200, manual/pneumatic/hydraulic)
Additional optical light protection upgrades
Extended backgauge axes (5 or 6 axis)
Pneumatic or hydraulic sheet followers
Angle measurement system (automatic springback)
Automated tool changer
Tandem synchronization kit (two-machine linking)
Safety laser scanner (alternative to light curtain)
Custom tooling packages (punches and dies)
Robotic bending integration (FlexBend)

Technical Specifications

Full Specifications

35 configurations across 7 tonnage groups from 75 to 400 ton. Same footprint variants as the EuroMaster S with upgraded standard equipment and 3D control.

⚙ 75 Ton — 750 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Daylight	Stroke	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Weight
PM20075	2,100 mm	750	1,600 mm	920 mm	540 mm	220 mm	150 mm/s	10 mm/s	100 mm/s	11	5,800 kg
PM25075	2,600 mm	750	2,100 mm	920 mm	540 mm	220 mm	150 mm/s	10 mm/s	100 mm/s	11	7,000 kg
PM30075	3,100 mm	750	2,600 mm	920 mm	540 mm	220 mm	150 mm/s	10 mm/s	100 mm/s	11	7,900 kg

⚙ 100 Ton — 1,000 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Daylight	Stroke	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Weight
PM25100	2,600 mm	1,000	2,100 mm	920 mm	540 mm	220 mm	200 mm/s	10 mm/s	125 mm/s	11	7,400 kg
PM30100	3,100 mm	1,000	2,600 mm	920 mm	540 mm	220 mm	200 mm/s	10 mm/s	125 mm/s	11	8,600 kg
PM36100	3,650 mm	1,000	3,150 mm	920 mm	540 mm	220 mm	200 mm/s	10 mm/s	125 mm/s	11	10,600 kg
PM40100	4,100 mm	1,000	3,150 mm	920 mm	540 mm	220 mm	200 mm/s	10 mm/s	125 mm/s	11	10,800 kg
PM43100	4,300 mm	1,000	3,750 mm	920 mm	540 mm	220 mm	200 mm/s	10 mm/s	125 mm/s	11	12,000 kg

⚙ 150 Ton — 1,500 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Weight
PM25150	2,600 mm	1,500	2,100 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	8,000 kg
PM30150	3,100 mm	1,500	2,600 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	9,400 kg
PM36150	3,660 mm	1,500	3,150 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	11,200 kg
PM40150	4,100 mm	1,500	3,150 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	11,400 kg
PM43150	4,300 mm	1,500	3,750 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15	13,400 kg

⚙ 200 Ton — 2,000 kN Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Weight
PM25200	2,600 mm	2,000	2,100 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	9,800 kg
PM30200	3,100 mm	2,000	2,600 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	10,900 kg
PM36200	3,660 mm	2,000	3,150 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	12,400 kg
PM40200	4,100 mm	2,000	3,150 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7	13,300 kg
PM43200	4,300 mm	2,000	3,750 mm	920 mm	200 mm/s	8 mm/s	120 mm/s	18.7	13,300 kg
PM46200	4,600 mm	2,000	4,100 mm	945 mm	130 mm/s	8 mm/s	120 mm/s	18.7	16,600 kg

⚙ 250–400 Ton Models

Model	Bending Length	Capacity (kN)	Dist. Between Housings	Table Height A	Fast Approach	Max Bending Speed	Fast Return	Motor (kW)	Weight
PM30250	3,100 mm	2,500	2,600 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7	17,700 kg
PM36250	3,660 mm	2,500	3,150 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7	14,100 kg
PM50250	5,000 mm	2,500	4,050 mm	945 mm	100 mm/s	8 mm/s	90 mm/s	18.7	24,000 kg
PM60250	6,000 mm	2,500	5,050 mm	1,090 mm	100 mm/s	8 mm/s	90 mm/s	18.7	30,700 kg
PM36320	3,660 mm	3,200	3,150 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5	20,200 kg
PM60320	6,000 mm	3,200	5,050 mm	1,095 mm	100 mm/s	8 mm/s	95 mm/s	22.5	32,700 kg
PM40400	4,100 mm	4,000	3,150 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	31,200 kg
PM43400	4,300 mm	4,000	3,150 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5	32,200 kg

Frequently Asked Questions

What is the press force and bending length range of the HACO PressMaster?

The PressMaster spans 35 configurations across 7 tonnage groups, from 75 to 400 ton, with bending lengths from 2,100 mm to 6,000 mm.

What control system does the PressMaster use?

The PressMaster is equipped with HACO's flagship FASTBEND-3D MT 24″ control, the most advanced control in the HACO lineup. It features a 24″ large-format multi-touch display, full 3D graphic part programming and simulation, automatic bend sequence optimization, 3D collision detection, seamless offline programming with HACOBEND Pro, automatic tool selection and placement, material springback compensation, step-by-step bend visualization, and production reporting with cycle time monitoring.

What back gauge configuration comes standard on the PressMaster?

An X-R-Z1-Z2 4-axis back gauge is standard on every PressMaster — it is not an upgrade. Extended 5- or 6-axis back gauge configurations are available as an option.

What safety equipment is included with the PressMaster?

Every PressMaster ships standard with a DSP and FIESSLER AKAS LC-II M light curtain, along with HACO quality certificate and CE marking. A safety laser scanner is available as an optional alternative to the light curtain, and additional optical light protection upgrades can be added.

Is the PressMaster tandem-ready for linking two machines together?

Yes. Tandem-ready mechanical and electrical preparation is included as standard equipment, and an optional tandem synchronization kit is available to link two PressMaster machines for bending longer workpieces.

What optional upgrades are available for the PressMaster?

Options include alternative ES quick clamps (ROL1 CLAMP3, ROL200, manual/pneumatic/hydraulic), extended 5- or 6-axis back gauge configurations, pneumatic or hydraulic sheet followers, an automatic angle measurement system for springback, an automated tool changer, a tandem synchronization kit, a safety laser scanner, custom tooling packages, and robotic bending integration (FlexBend).
