What is the tonnage and bending length range of the HACO SynchroMaster?

The HACO SynchroMaster is available in 35+ configurations from 75 to 400 ton, with bending lengths ranging from 2,100 mm to 6,000 mm, covering models from the 20075 up through the 60250 and 43400.

What control system does the SynchroMaster use?

The SynchroMaster comes standard with the EASYBEND 2D graphic control, featuring an 18.5-inch multi-touch screen (1366 x 768) on PC-based hardware. It includes Smart Draft 2D drawing, a Step Previewer for bend visualization, automatic bending program generation, and both on-machine and offline programming.

What back gauge configurations are available on the SynchroMaster?

The SynchroMaster ships standard with an X-axis back gauge, expandable to X-R, X-R-Z/Z', or X-R-Z1-Z2 configurations depending on production needs.

What tooling comes standard on the SynchroMaster?

Standard tooling is European Standard (ES) hydraulic top tool clamping with a table for ES dies that also accepts NS mono V dies. Alternative ES quick clamps such as ROL1 CLAMP3 and ROL200, available in manual, pneumatic, or hydraulic versions, can be added as an option.

What safety systems are standard on the SynchroMaster?

Every SynchroMaster ships standard with a DSP and FIESSLER AKAS LC-II M light curtain. An alternative optical light protection system (DSP / FIESSLER AKAS) is available as an option.

What optional upgrades are available for the SynchroMaster?

Options include alternative ES quick clamps, a manual or CNC crowning table, alternative optical light protection, two 750 mm front support arms on a linear guideway with a parking station, and HACOBEND Pro offline bending software.

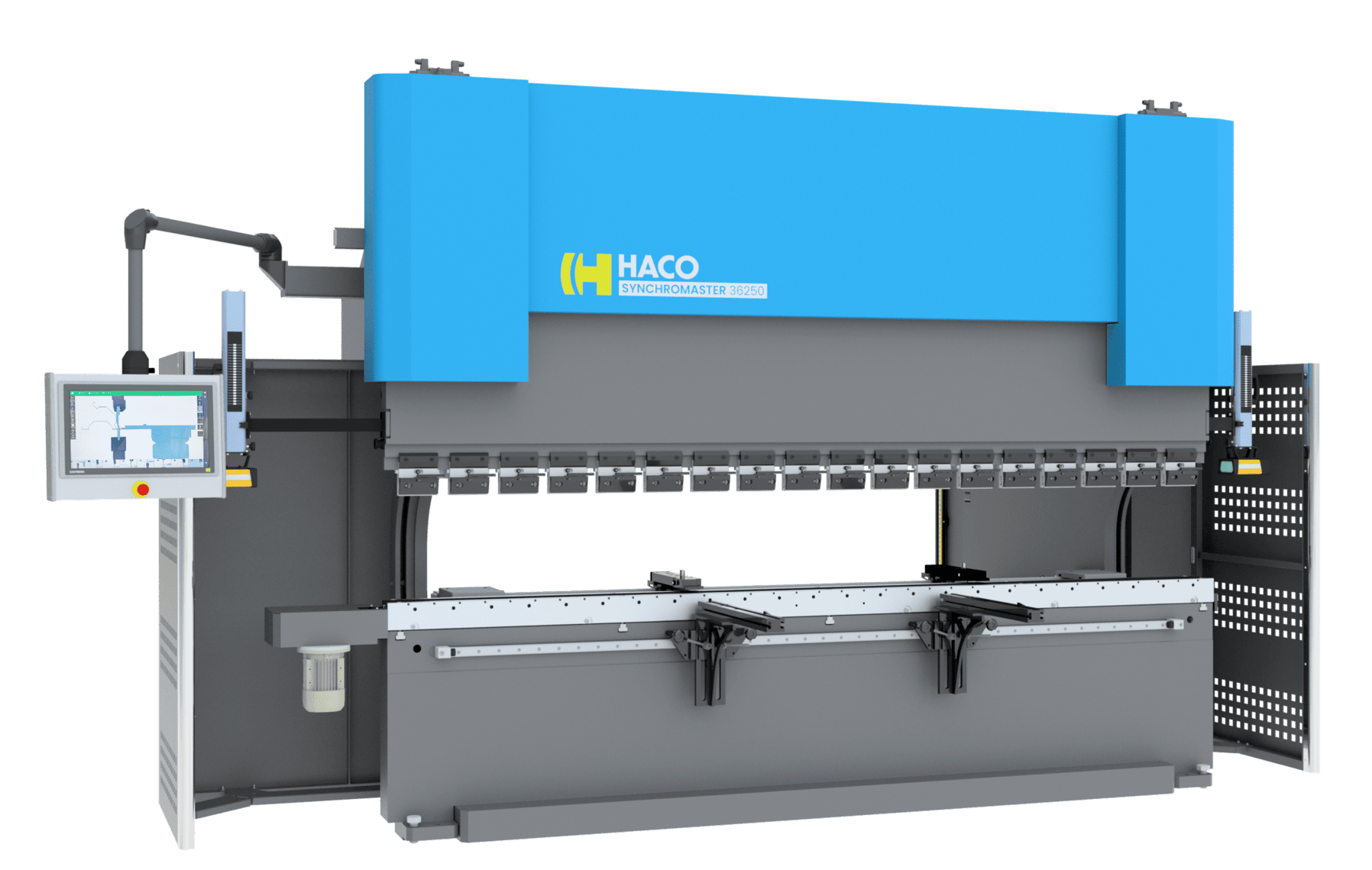

SynchroMaster — HACO CNC Hydraulic Press Brake

Name: HACO SynchroMaster CNC Hydraulic Press Brake
Brand: HACO
Availability: InStock

⚡
75–400 T
Press Force Range
📏
2,100–6,000 mm
Bending Length
🖥
EASYBEND
18.5” Multi-Touch
🇪🇺
Made in Europe
Configurable

SynchroMaster Brochure

Download the full specification brochure with technical data and configuration options.

SynchroMaster Brochure

Control System

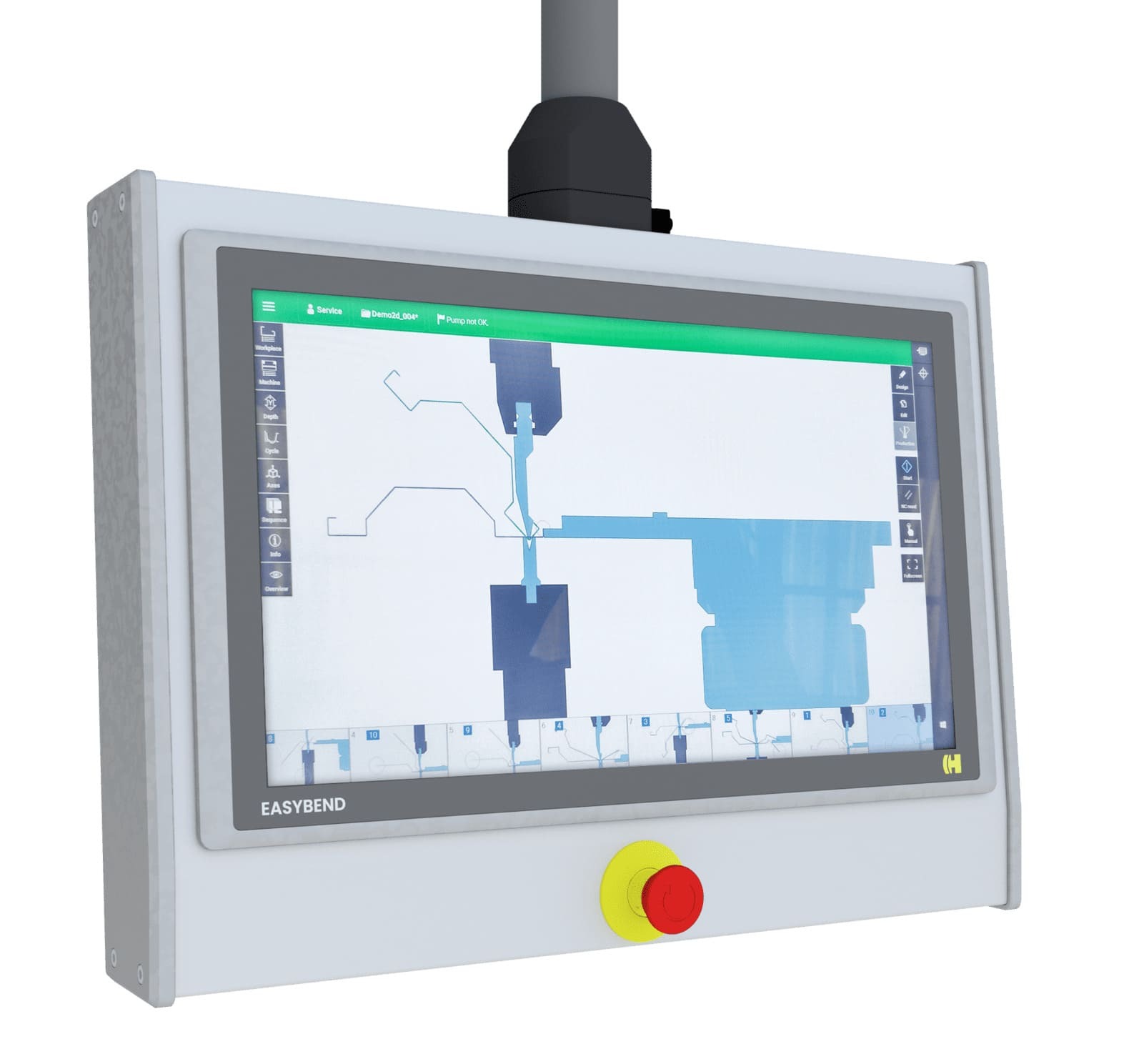

EASYBEND 2D Multi-Touch Control

The SynchroMaster comes standard with the intuitive EASYBEND graphical control. PC-based hardware delivers fast data processing and highly accurate bending programs. Multi Touch technology minimizes button actions for straightforward, intuitive control of the entire production cycle.

18.5” multi-touch screen (1366 x 768)
Smart Draft innovative 2D drawing
Step Previewer for bend visualization
Automatic program generation
On-machine or offline programming

Equipment

Standard & Optional Equipment

Delivered in a solid base configuration with European Standard tooling, expandable with practical options.

Standard Equipment

Included with every SynchroMaster

EASYBEND 2D graphic control with 18.5” multi-touch screen
Increased daylight opening (540 mm), stroke (370 mm), gap (400 mm)

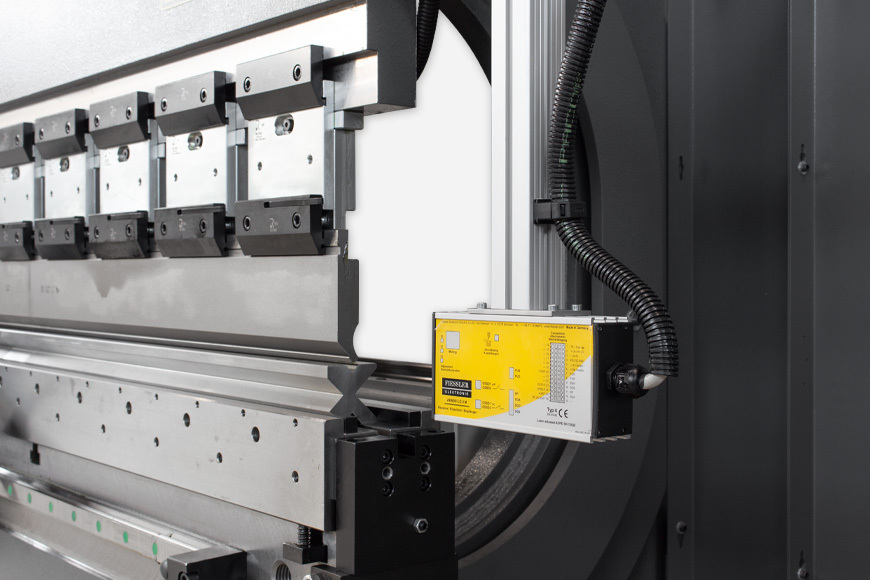

European Standard (ES) hydraulic top tool clamping
Table for ES dies with NS mono V die capability

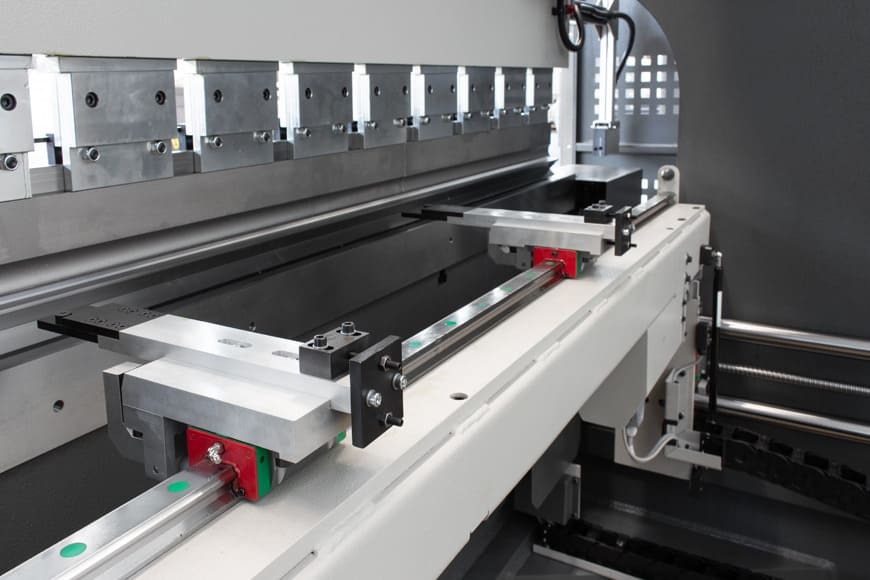

X backgauge (expandable to X-R, X-R-Z/Z’, X-R-Z1-Z2)
DSP and FIESSLER AKAS LC-II M light curtain

Optional Equipment

Available upgrades

Alternative ES quick clamps (ROL1 CLAMP3, ROL200, manual/pneumatic/hydraulic)
Crowning table, manual or CNC
Optical light protection (DSP / FIESSLER AKAS)

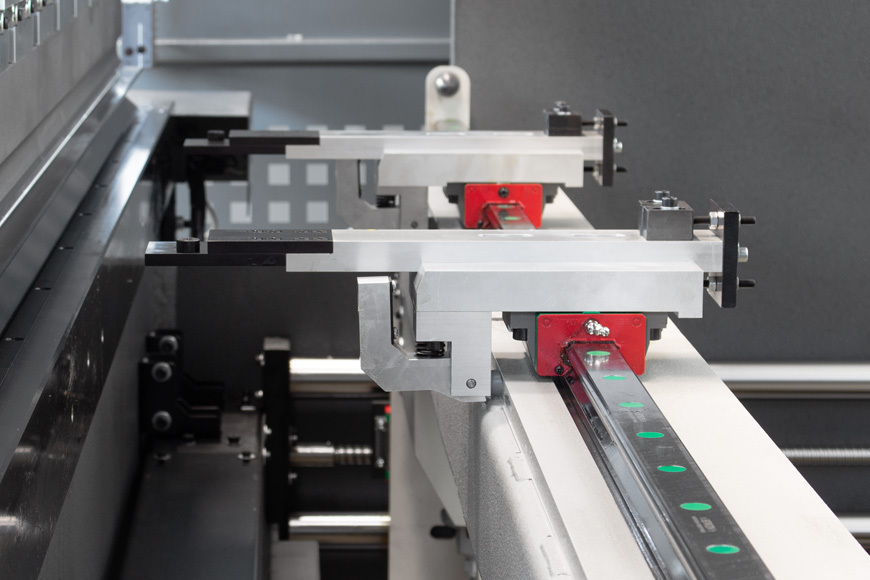

Two 750 mm front support arms on linear guideway
Parking station for support arms
HACOBEND Pro offline bending software

Technical Specifications

Full Specifications

35+ configurations from 75 to 400 ton. Scroll horizontally to view all models.

⚙ 75 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
20075	2,100 mm	750	1,600 mm	520 mm	270 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11 kW	5,600 kg
25075	2,600 mm	750	2,100 mm	520 mm	270 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11 kW	6,800 kg
30075	3,100 mm	750	2,600 mm	520 mm	270 mm	920 mm	150 mm/s	10 mm/s	100 mm/s	11 kW	7,700 kg

⚙ 100 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
25100	2,600 mm	1,000	2,100 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11 kW	7,200 kg
30100	3,100 mm	1,000	2,600 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11 kW	8,400 kg
36100	3,650 mm	1,000	3,150 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11 kW	10,400 kg
40100	4,100 mm	1,000	3,150 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11 kW	10,600 kg
43100	4,300 mm	1,000	3,750 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	11 kW	11,800 kg

⚙ 150 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
25150	2,600 mm	1,500	2,100 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	7,800 kg
30150	3,100 mm	1,500	2,600 mm	520 mm	270 mm	920 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	9,200 kg
36150	3,660 mm	1,500	3,150 mm	520 mm	270 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	11,000 kg
40150	4,100 mm	1,500	3,150 mm	520 mm	270 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	11,200 kg
43150	4,300 mm	1,500	3,750 mm	520 mm	270 mm	970 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	13,200 kg
46150	4,600 mm	1,500	4,100 mm	520 mm	270 mm	950 mm	200 mm/s	10 mm/s	125 mm/s	15 kW	15,500 kg

⚙ 200 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
25200	2,600 mm	2,000	2,100 mm	520 mm	270 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7 kW	9,600 kg
30200	3,100 mm	2,000	2,600 mm	520 mm	270 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7 kW	10,700 kg
36200	3,660 mm	2,000	3,150 mm	520 mm	270 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7 kW	12,200 kg
40200	4,100 mm	2,000	3,150 mm	520 mm	270 mm	920 mm	160 mm/s	8 mm/s	120 mm/s	18.7 kW	13,100 kg
43200	4,300 mm	2,000	3,750 mm	520 mm	270 mm	920 mm	200 mm/s	8 mm/s	120 mm/s	18.7 kW	13,100 kg
46200	4,600 mm	2,000	4,100 mm	520 mm	270 mm	945 mm	130 mm/s	8 mm/s	120 mm/s	18.7 kW	16,400 kg

⚙ 250 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
30250	3,100 mm	2,500	2,600 mm	520 mm	270 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7 kW	17,500 kg
36250	3,360 mm	2,500	3,150 mm	520 mm	270 mm	895 mm	130 mm/s	8 mm/s	90 mm/s	18.7 kW	13,900 kg
40250	4,100 mm	2,500	3,150 mm	520 mm	270 mm	895 mm	100 mm/s	8 mm/s	90 mm/s	18.7 kW	15,300 kg
43250	4,300 mm	2,500	3,750 mm	520 mm	270 mm	895 mm	100 mm/s	8 mm/s	90 mm/s	18.7 kW	16,700 kg
50250	5,000 mm	2,500	4,050 mm	520 mm	270 mm	945 mm	100 mm/s	8 mm/s	90 mm/s	18.7 kW	23,800 kg
60250	6,000 mm	2,500	5,050 mm	520 mm	270 mm	1,090 mm	100 mm/s	8 mm/s	90 mm/s	18.7 kW	30,500 kg

⚙ 320 & 400 Ton Models

Model	Bend Length	Force (kN)	Between Plates	Daylight	Stroke	Table H	Fast Down	Work	Return	Motor	Weight
30320	3,360 mm	3,200	2,600 mm	620 mm	420 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5 kW	17,000 kg
40320	3,660 mm	3,200	3,150 mm	620 mm	420 mm	895 mm	100 mm/s	8 mm/s	95 mm/s	22.5 kW	21,000 kg
50320	4,300 mm	3,200	4,050 mm	620 mm	420 mm	940 mm	100 mm/s	8 mm/s	95 mm/s	22.5 kW	27,500 kg
60320	5,000 mm	3,200	5,050 mm	620 mm	420 mm	1,095 mm	100 mm/s	8 mm/s	95 mm/s	22.5 kW	32,500 kg
36400	3,660 mm	4,000	3,150 mm	620 mm	420 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5 kW	29,000 kg
40400	4,100 mm	4,000	3,150 mm	620 mm	420 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5 kW	31,000 kg
43400	4,300 mm	4,000	3,150 mm	620 mm	420 mm	1,045 mm	90 mm/s	7 mm/s	60 mm/s	22.5 kW	32,000 kg
