Dener · CNC Guillotine Shear

AS Series

ESA S 530 CNC · Automatic Blade Gap & Angle · 6–20 mm · Up to 6,000 mm

The AS Series CNC guillotine shear automatically adjusts blade gap and cutting angle based on programmed material specifications. No manual dial-in between jobs. Built for high-volume Canadian fabrication shops that demand consistent cut quality across mild steel, stainless, and aluminum.

Request a Quote Full Specifications Standard Equipment
Dener AS Series CNC Guillotine Shear
6–20 mm
Cutting Thickness
3,000–6,000 mm
Cutting Length
ESA S 530
CNC Control System
Auto Gap & Angle
CNC-Programmed Setup

Technical Specifications

AS Series — Full Spec Sheet

Standard configurations available in 3,000 mm, 4,000 mm, 5,000 mm, and 6,000 mm cutting lengths. Thicknesses from 6 mm to 20 mm depending on model.

Cutting Performance
Cutting Thickness6 mm / 8 mm / 10 mm / 12 mm / 16 mm / 20 mm (model dependent)
Cutting Length3,000 / 4,000 / 5,000 / 6,000 mm
MaterialMild steel, stainless steel, aluminum
Blade AngleCNC-programmed, automatic adjustment
Blade GapAutomatic hydraulic adjustment (CNC)
Strokes Per MinuteModel dependent (typically 10–25 spm)
Control & Back Gauge
Control SystemESA S 530 CNC
Back Gauge DriveMotorized ball screw
Back Gauge TravelStandard + extended travel option
Gauge PositioningCNC-programmed, motorized
Stroke CounterIncluded standard
Machine Construction
FrameHeavy welded structural steel, stress-relieved
Blade MaterialHigh-speed steel (4-edge reversible blades)
Hold-Down SystemHydraulic pads (standard)
Hydraulic SystemIntegrated, simplified circuit
LubricationCentralized system
Certification & Delivery
CertificationCE standard; CSA available
DeliveryFree across Canada (Mississauga base)
InstallationIncluded — Rise Tek technician
ServiceCanada-wide via Rise Tek Machinery
WarrantyContact us for details

AS Series

Machine Gallery

Dener AS Series CNC Guillotine Shear front view
Dener AS Series wide shot

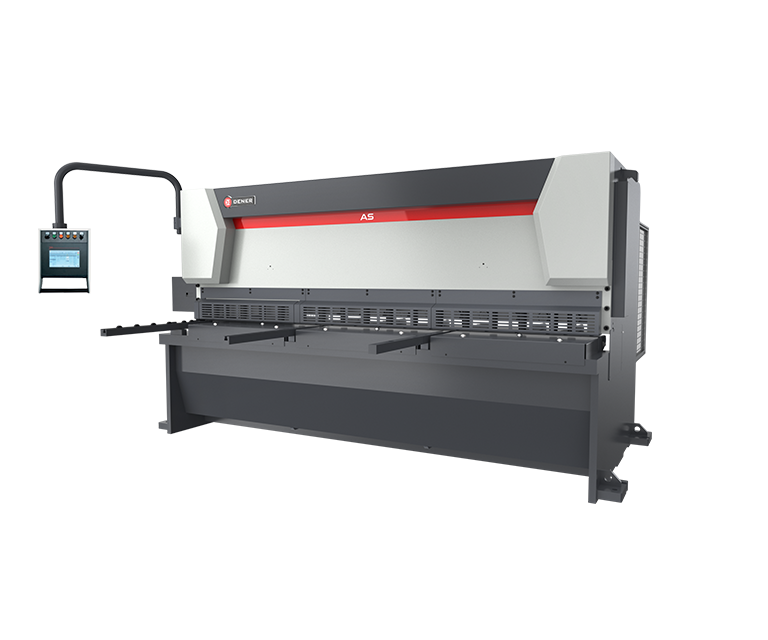

Dener AS Series guillotine shear detail

Key Advantages

What Sets the AS Series Apart

The AS Series isn't just a shear with a screen — it's a machine designed around eliminating manual setup time and operator-to-operator variation.

🖥️

ESA S 530 CNC Control

Industry-standard CNC platform with material library, batch programs, and a touchscreen interface. Operators select the material and thickness — the machine sets itself up.

⚙️

Automatic Blade Gap

Hydraulic CNC blade gap adjustment means no manual dial between material changes. The gap is set from the control panel for each material thickness — precise, repeatable, fast.

📐

Automatic Cutting Angle

CNC-programmed cutting angle reduces camber on stainless and aluminum cuts. The AS Series handles tight-tolerance cuts that swing-beam machines can't achieve consistently.

🔩

Motorized Ball Screw Back Gauge

Precise, fast back gauge positioning driven by ball screw for repeatability. Programs store multiple positions so complex cutting sequences run without stopping.

🛡️

Safety as Standard

Front protection frame and curtain light guards standard on every machine. CE-compliant safety system available as option, including full light curtain package.

🔧

Low-Maintenance Hydraulics

Simplified hydraulic circuit with centralized lubrication keeps service intervals long and maintenance straightforward. Designed to stay in production, not in the shop.

Equipment

Standard & Optional Features

Every AS Series ships fully equipped. Optional features are specified at order time.

Standard Equipment

Included on every AS Series machine

  • ESA S 530 CNC control unit
  • Automatic hydraulic blade gap adjustment
  • CNC cutting angle adjustment
  • Motorized back gauge system (ball screw)
  • Hydraulic hold-down pads
  • Front protection frame
  • Curtain light guards
  • Ball transfer front support tables
  • Stroke counter
  • CE marking

Optional Features

Available at order time — specify when quoting

  • Safety system for CE norms (full light curtain)
  • Oil cooling system
  • Laser cutting line indicator
  • Pneumatic thin sheet support system
  • Extended back gauge travel
  • Motorized sheet followers
  • Stainless-steel tooling package
  • CSA certification
  • Custom paint colour
Dener Shearing Machines Brochure
Full specifications and feature details for AS and BS Series shears.
Request Catalog

Also considering the BS Series Swing Beam?

The BS Series uses NC control with manual blade gap and angle adjustment — simpler setup, lower cost, and available from 2,000 mm. Compare specifications side-by-side on the shears overview page.

View BS Series Compare Both

Ready to Cut Smarter

Get an AS Series Quote

Tell us your material thickness, cutting length, and production volume. We'll configure the right AS Series machine and quote within 48 hours.

Request a Quote Call 905-487-3464

Frequently Asked Questions

What cutting thickness and length does the AS Series handle?
The AS Series cuts mild steel, stainless steel, and aluminum from 6 mm to 20 mm in thickness (model dependent), with standard cutting lengths of 3,000 mm, 4,000 mm, 5,000 mm, and 6,000 mm.
What CNC control system does the AS Series use?
The AS Series uses the ESA S 530 CNC control, a touchscreen platform with a material library and batch programs. Operators select the material and thickness and the machine sets up the blade gap and cutting angle automatically.
How does the automatic blade gap and cutting angle adjustment work?
Blade gap is adjusted automatically by a CNC-controlled hydraulic system based on the programmed material and thickness, removing manual dial-in between jobs. Cutting angle is also CNC-programmed, which reduces camber on stainless and aluminum cuts compared to swing-beam machines.
What safety features are standard on the AS Series?
Every AS Series machine ships standard with a front protection frame and curtain light guards. A full CE-compliant safety system with a complete light curtain package is available as an option.
What is included as standard equipment versus optional features?
Standard equipment includes the ESA S 530 CNC control unit, automatic hydraulic blade gap adjustment, CNC cutting angle adjustment, a motorized ball screw back gauge, hydraulic hold-down pads, a front protection frame, curtain light guards, ball transfer front support tables, a stroke counter, and CE marking. Optional features include a full CE light curtain safety system, an oil cooling system, a laser cutting line indicator, a pneumatic thin sheet support system, extended back gauge travel, motorized sheet followers, a stainless-steel tooling package, CSA certification, and custom paint colour.
How is the AS Series different from the BS Series swing beam shear?
The AS Series uses ESA S 530 CNC control with automatic blade gap and angle adjustment, while the BS Series uses NC control with manual blade gap and angle adjustment. The BS Series offers simpler setup and a lower cost, and is available from 2,000 mm cutting length, whereas the AS Series is built for higher-volume shops needing CNC-programmed, repeatable setup across 3,000–6,000 mm cutting lengths.
