Dener · Canada-Wide Dealer
Shearing Machines
Guillotine and swing beam shears for plate and sheet metal cutting up to 20 mm thick and 6 m long. CNC or NC control. CSA-certified, delivered and installed across Canada.
Dener · Canada-Wide Dealer
Guillotine and swing beam shears for plate and sheet metal cutting up to 20 mm thick and 6 m long. CNC or NC control. CSA-certified, delivered and installed across Canada.
Product Lines
The AS Series delivers full CNC automation for high-volume production. The BS Series offers NC precision with straightforward manual setup — ideal for job shops that want reliable output without full CNC overhead.

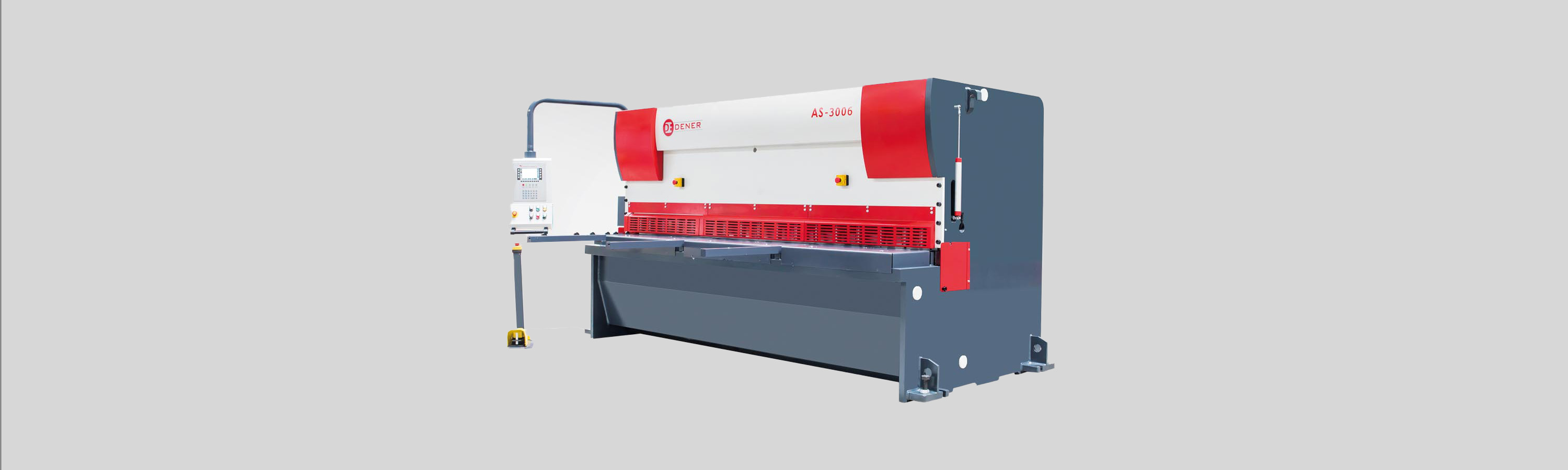

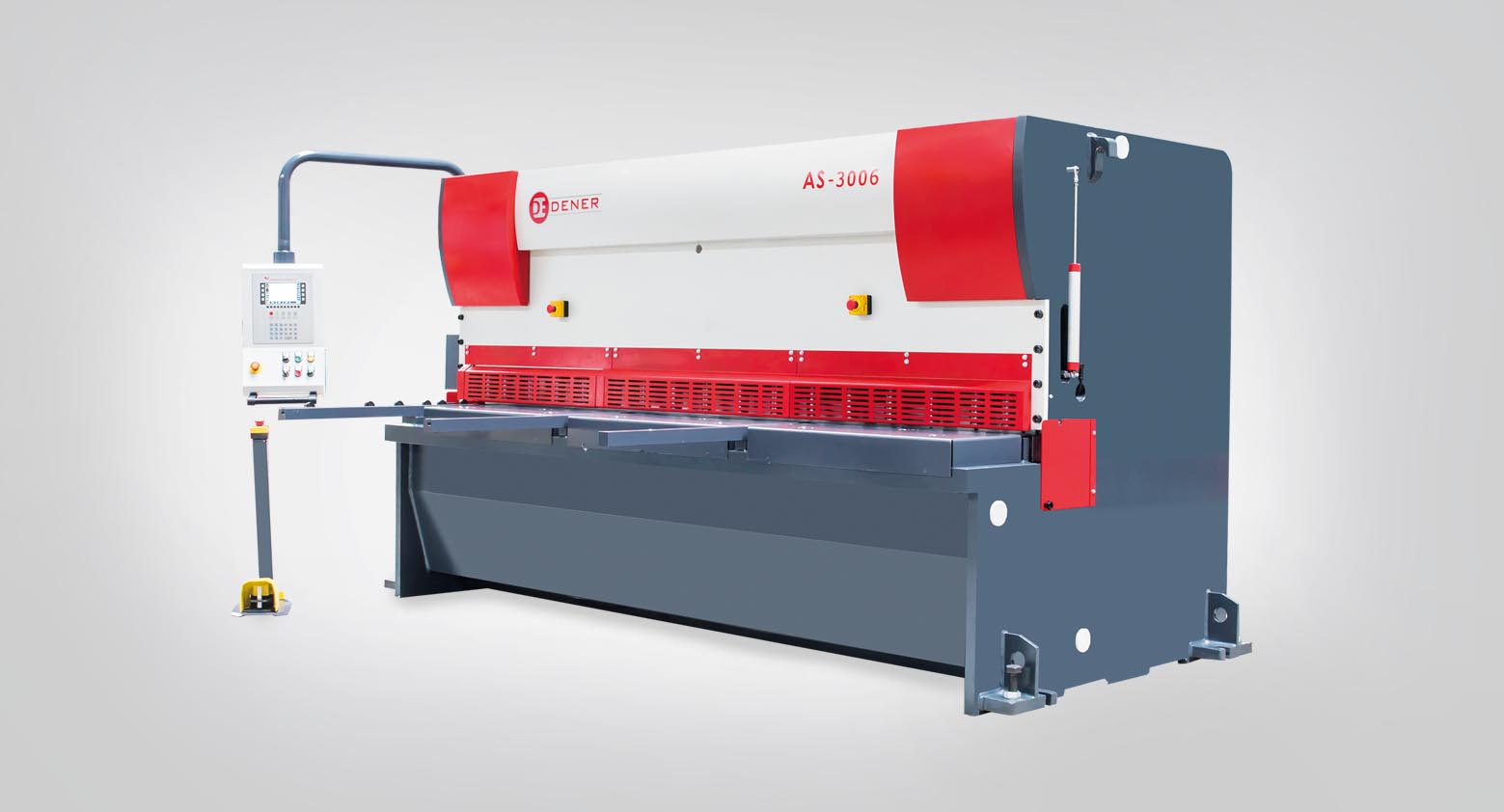

ESA S 530 CNC control with automatic hydraulic blade gap and cutting angle adjustment. Built for repeatable high-throughput production on mild steel, stainless, and aluminum.

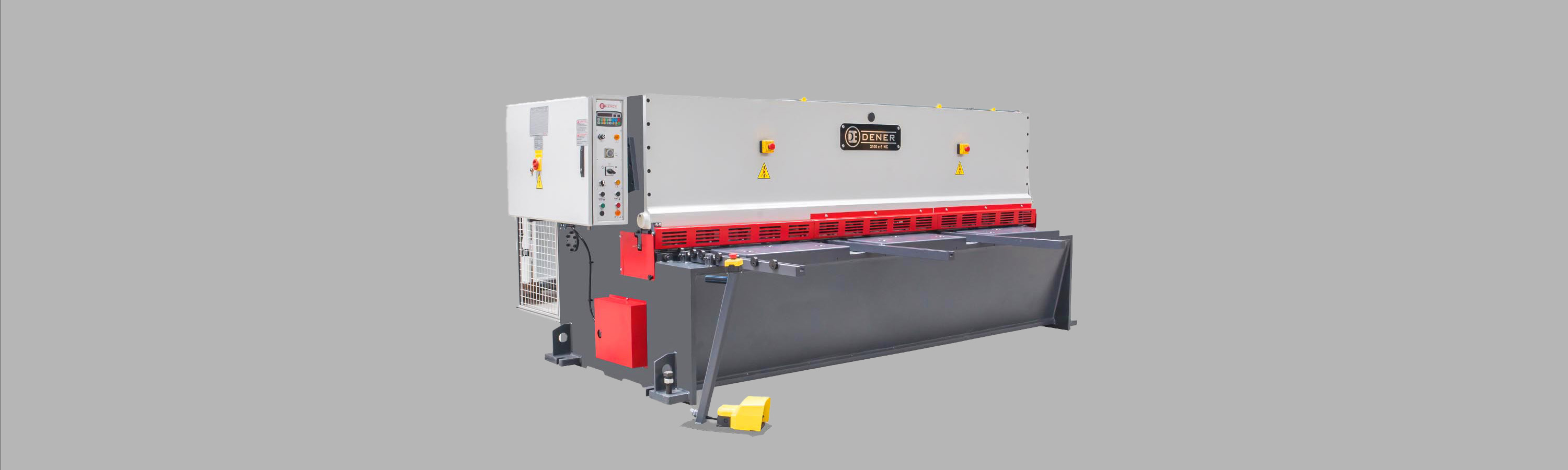

Dener HT 071 NC controller with motorized back gauge. Manual blade gap and angle adjustment keeps the machine simple, reliable, and easy to maintain — the proven choice for job shops.
Side-by-Side
Both series cut the same material thickness range and lengths. The difference is in how setup is handled and how much automation you need.
| Specification | AS Series — CNC Guillotine | BS Series — Swing Beam |
|---|---|---|
| Cutting Mechanism | Guillotine (straight blade drop) | Swing beam (arc motion) |
| Cutting Thickness | 6–20 mm | 6–20 mm |
| Cutting Length | 3,000–6,000 mm | 2,000–6,000 mm |
| Control System | ESA S 530 CNC | Dener HT 071 NC |
| Blade Gap Adjustment | Automatic (hydraulic CNC) | Manual |
| Cutting Angle Adjustment | Automatic (CNC-programmed) | Manual |
| Back Gauge | Motorized ball screw | Motorized ball screw, 1,000 mm |
| Hold-Down System | Hydraulic pads (standard) | Hydraulic pads (standard) |
| Material Suited For | Mild steel, stainless, aluminum | Mild steel, stainless, aluminum |
| Best For | High-volume production, fast changeovers between materials | Job shops, lower volume, straightforward cuts |
| Setup Time | Minimal — CNC stores material programs | Manual adjustment between material changes |
| CE / CSA | CE standard; CSA available | CE standard; CSA available |
Buyer's Guide
Not sure which shear to choose? Here's the practical breakdown our team uses when spec'ing machines for Canadian fabricators.
Why Dener Shears
Every Dener shear is built on a heavy welded steel frame, stress-relieved to resist deformation under cyclic load. Rise Tek services every machine we sell.
Precision-ground blades and accurate gap settings deliver clean cuts across the full thickness range, reducing secondary deburring time.
The ESA S 530 automatically adjusts blade gap and cutting angle for each programmed material — no manual dial-in between jobs.
Structural steel construction, stress-relieved and precision-machined to maintain geometry and parallel blade alignment through years of production.
Front protection frame and curtain light guards are included on every machine. CE-compliant safety system available as an option on both series.
Simplified hydraulic circuit, centralized lubrication, and easy-access blade clamping. Designed to stay running, not to require a specialist to service.
Sold and serviced by Rise Tek Machinery from Mississauga. Local technicians, spare parts through Machinist's Vault, and commissioning included.
