SandersonWDE-M Series · Combination Head

Combination Head Metal Sander

WDE-M Series — Multi-Process Sanding

The Sanderson WDE-M delivers multiple surface treatments in a single machine pass. Configure any combination of A-type abrasive rollers, D-type disc brushes, P-type rotating brushes, NB nylon brushes, and PR polishing rollers. PLC touch screen control with servo motor precision feed.

View Head Types

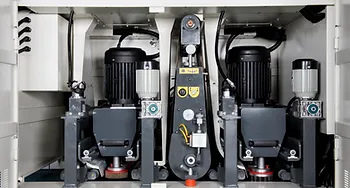

Sanderson WDE-M Combination Head Metal Sander
⚙
5 Head Types
A · D · P · NB · PR Heads
↔
600–1,300 mm
Working Width Options
🖥
PLC Touch
Servo Motor Feed Control
✨
Single Pass
Multi-Process Finishing

WDE-M Series

One Machine. Multiple Processes.

The WDE-M is Sanderson's most advanced metal sanding platform. Unlike single-head machines, the WDE-M allows you to configure multiple head types in a single frame — so your parts come out fully processed in one conveyor pass instead of multiple setups.

Choose from abrasive belt rollers for heavy stock removal, disc brush heads for deburring and edge rounding, rotating brush heads for surface drawing, nylon brushes for fine finishing, and polishing rollers for mirror-bright results. All heads are individually configurable and independently driven.

Up to 6
Processing heads
1,300 mm
Max working width
Servo
Motor feed system
PLC
Touch screen control

Head Configurations

Mix & Match Processing Heads

Each WDE-M is built to your specification. Combine any of the five head types to suit your exact material, finish, and production requirements.

A-Type
Abrasive Belt Roller
Wide-belt abrasive roller for aggressive stock removal, weld seam grinding, and heavy deburring. Available in multiple grit grades. Primary workhorse head for stainless, aluminum, and titanium.
D-Type
Disc Brush Head
Rotary disc brush configuration for edge deburring, chamfering, and burr removal after laser cutting, punching, and stamping. Produces consistent edge quality across the full working width.
P-Type
Rotating Brush Head
Cylindrical rotating brush for hair-line drawing, brushed finish generation, and surface texture creation on stainless steel and aluminum. Ideal for decorative panel production.
NB-Type
Nylon Brush Head
Nylon abrasive brush roller for fine surface finishing, scratch removal, and pre-coating prep. Gentle action suitable for softer materials and cosmetic finishing stages.
PR-Type
Polishing Roller
Final-stage polishing roller for mirror finish applications on stainless steel. Used as the last head in combination sequences where a high-gloss result is required.
Custom
Application-Specific
Sanderson engineers custom head combinations for demanding production requirements. Contact Rise Tek to discuss a WDE-M configuration matched to your specific material and finish specification.

Key Features

Built for Precision Production

The WDE-M platform delivers industrial reliability with the flexibility to handle diverse surface finishing requirements.

🖥
PLC Touch Screen Control
Full parameter control via a colour touch screen HMI. Store process recipes, monitor head status, and adjust feed speed in real time without stopping the machine.
⚙
Servo Motor Feed
Precision servo motor controls workpiece feed speed for consistent surface finish quality. Variable speed control from the touch screen allows fine-tuning to match material and grit selection.
🔧
Independent Head Drives
Each processing head has its own independent motor drive, allowing individual speed adjustment and on/off control. Run only the heads needed for each job to reduce wear and energy consumption.
✨
Single-Pass Multi-Process
Complete deburring, surface finishing, edge rounding, and polishing in one conveyor pass. Eliminates multiple machine setups and reduces handling damage between operations.
🚫
Auto Safety Stop
Automatic safety shutdown triggers on overload, jam detection, or emergency stop activation. Protects both the machine and operator from damage during irregular feeding conditions.
🇨🇦
CSA Certified
All Sanderson machines supplied to the Canadian market through Rise Tek are CSA certified, meeting Canadian electrical and safety standards for industrial machinery.

Equipment

Standard & Optional Configuration

Every WDE-M ships with a complete standard configuration. Optional accessories let you expand capability as your production requirements grow.

Standard Equipment
  • PLC colour touch screen control panel
  • Servo motor variable-speed feed conveyor
  • Independent head motor drives
  • Emergency stop with auto belt brake
  • Roller height digital readout
  • Feed table entry and exit support rollers
  • Dust extraction connection ports (per head)
  • Head selection configuration to spec
Optional Accessories
  • Wet sanding / coolant system
  • Additional processing head positions
  • Width-direction oscillation for uniform wear
  • Automatic belt tension and tracking
  • Remote HMI pendant for operator positioning
  • Extended infeed / outfeed conveyor tables
  • Integrated dust collection cabinet
  • Custom working width (600, 900, 1,050, 1,300 mm)

WDE-M Combination Head Sander

Get a Quote for Your Configuration

Tell us your material, required finish, production volume, and working width. We’ll design the right head combination for your application.

Call 905-487-3464
