SandersonMTS Series · Heavy Duty

MTS

Heavy Duty Metal Sander

The MTS Series is Sanderson’s industrial-grade metal sanding platform. Designed for demanding finishing on stainless steel, aluminum alloy, titanium, iron, and copper — it handles grinding, polishing, drawing, rust removal, deburring, and weld-mark elimination. Available in 600, 900, and 1,300 mm working widths with double, triple, or four-roller configurations.

Specifications
Sanderson MTS Heavy Duty Metal Sander
⚙
2–4 Rollers
Configurable Head Count
↔
600–1,300 mm
Working Width Options
🖥
Digital Readout
Control Panel
🔒
Auto Stop
Belt Break / Misalignment

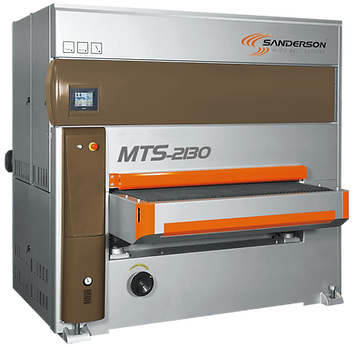

MTS Heavy Duty Sander

Why MTS

Industrial Finishing at Scale

The MTS is built for shops that sand heavy, sand often, and need consistent results across every part.

⚡

Variable Feed Speed

High-performance frequency inverter allows speed adjustments to accommodate different metal types and surface requirements.

🖥

Digital Readout Control

Full control panel with load meter monitoring for the main sanding motor. Four lifting poles provide stable conveyor height adjustment.

🔒

Automatic Safety Stop

Limit switches detect belt misalignment. Auto shutdown engages if air supply fails, belt loosens, or belt breaks — protecting both operator and machine.

🔧

Quick Belt Release

Quick-release locking mechanism enables rapid sanding belt changes without tools, minimising changeover time between grits or materials.

💧

Wet or Dry Sanding

Optional water tank device with in-feed and out-feed tanks keeps panel surfaces clean during wet sanding processes.

⚙

Multiple Head Options

Top sander configurations: A-A (Roller-Roller) and A-A-A (Roller-Roller-Roller). Bottom sander: A (single) or A-A (double roller).

Equipment

Standard & Optional Features

Standard Equipment

Included on every MTS

  • Digital readout control panel
  • Four-post lifting mechanism for conveyor height
  • Variable feed motor with disc brakes
  • Conveyor belt tracking system
  • Main motor load meter
  • Quick-release sanding belt mechanism
  • In-feed emergency brake
  • Emergency stop bar and button
  • Automatic belt misalignment shutdown

Optional Equipment

Specified at order time

  • Wet or dry sanding system
  • Inverter-controlled feed speed
  • Inverter-controlled sanding speed
  • Brush attachments (sand cloth, disc, nylon, wire, non-woven, fiber)
  • Roller conveyor feed table
  • Water circulation system for wet sanding
  • Custom working width on request

Brush Options

Available Brush Types

Optional brush attachments extend the MTS to deburring, polishing, and surface texturing.

Type A
Sand cloth brush
Type B
Disc brush
Type C
Nylon brush
Type D
Wire brush
Type E
Non-woven brush
Type F
Fiber brush

Heavy Duty Metal Finishing

Get an MTS Quote

Tell us your material, part size, required finish, and production volume. We’ll specify the right working width and roller configuration.

Call 905-487-3464

Frequently Asked Questions

What working widths are available for the Sanderson MTS Heavy Duty Metal Sander?
The MTS Series is available in 600 mm, 900 mm, and 1,300 mm working widths, with a custom working width available on request.
What roller configurations does the MTS support?
The MTS can be configured with 2 to 4 rollers. Top sander configurations are A-A (roller-roller) or A-A-A (roller-roller-roller), while the bottom sander is available as A (single roller) or A-A (double roller).
What materials and applications is the MTS designed for?
The MTS handles stainless steel, aluminum alloy, titanium, iron, and copper. It is used for grinding, polishing, drawing, rust removal, deburring, and weld-mark elimination.
What safety features are built into the MTS?
Limit switches detect belt misalignment and trigger an automatic shutdown if the air supply fails, the belt loosens, or the belt breaks. The machine also includes an in-feed emergency brake and an emergency stop bar and button.
Can the MTS perform wet sanding?
Yes. An optional water tank device with in-feed and out-feed tanks keeps panel surfaces clean during wet sanding, and an optional water circulation system is also available.
What brush attachment options are available?
Six optional brush types are available: Type A sand cloth brush, Type B disc brush, Type C nylon brush, Type D wire brush, Type E non-woven brush, and Type F fiber brush.
