RollTek  ·  Hydraulic 4-Roll Plate Rolls  ·  TITAN Series  ·  NC / CNC  ·  Three Model Tiers  ·  Factory-Direct from RiseTek Machinery

Hydraulic 4-Roll Plate Rolling Machines
RollTek TITAN Series — 4-Roll Plate Rolls

Three model tiers — TITAN 4P, TITAN 4E, and TITAN 4L — covering every production requirement from high-volume CNC automation to heavy-duty 240″ linear guide reliability.

Explore Models Get a Quote ›
3
Model Tiers
82″–240″
Working Length Range
3⅛″
Max Plate Thickness
1 Pass
Pre-bend Both Ends
RollTek TITAN Series hydraulic 4-roll plate rolling machine
Three Tiers. One Series.

Choose Your TITAN

Select a model to view full specifications, complete capacity tables, and standard features — all sourced directly from the RollTek Titan Series spec sheet.

3 images — click image for full view

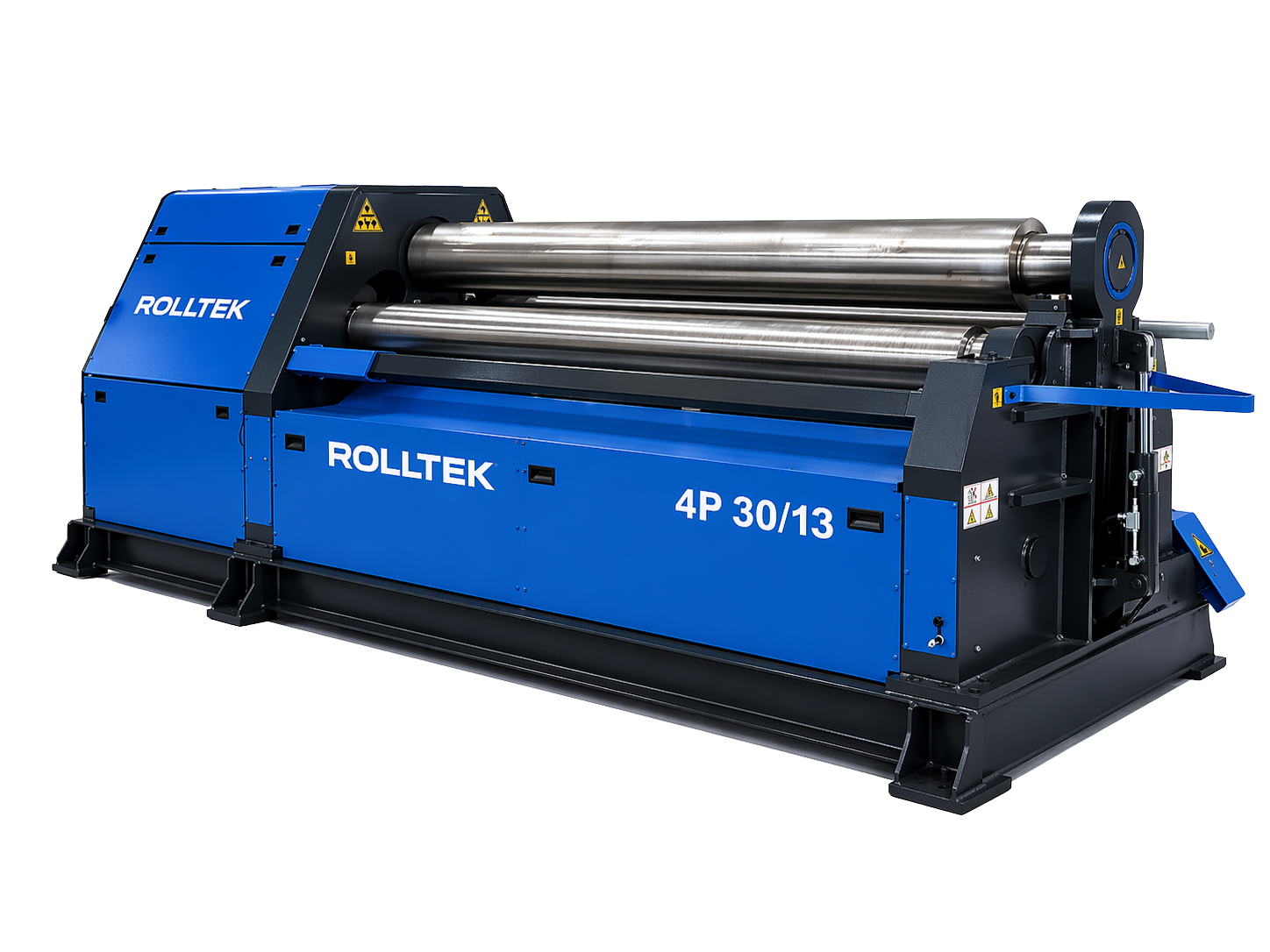

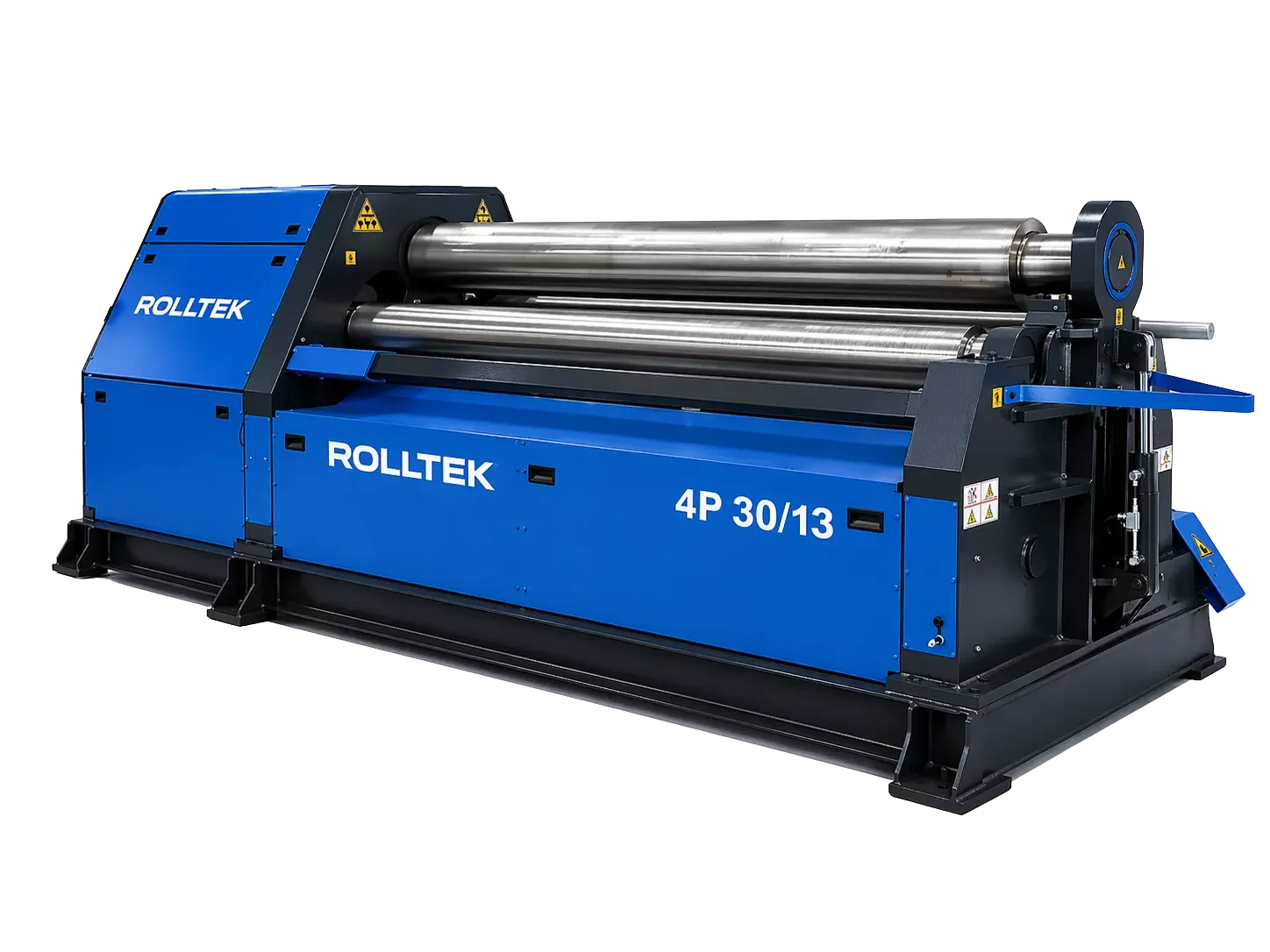

TITAN 4P full size 1

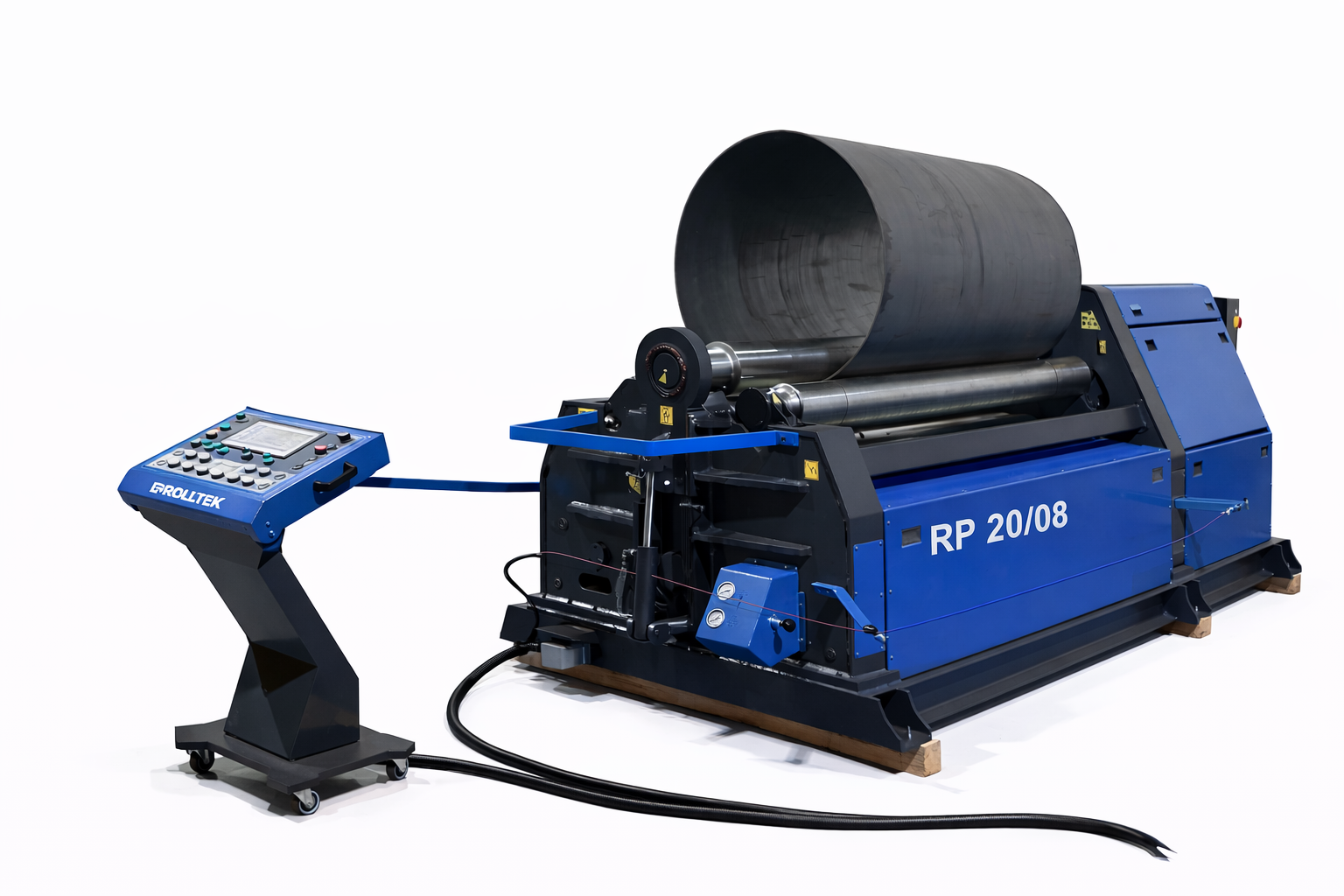

TITAN 4P full size 2
TITAN 4P full size 3
Premium · CNC/NC

TITAN 4P

Hydraulic 4-Roll · Planetary Guide · CNC / NC Control

The flagship TITAN. Built for high-tonnage, high-production rolling with full CNC integration, automatic balancing, cone bending, infrared safety, and energy-saving standby modes. Produced to highest quality standards with a 1-year warranty.

Guide System
Planetary
Control
CNC / NC
Touch Screen
7″ Multi-functional
Working Lengths
82″ · 102″ · 122″ · 161″ · 200″
Max Thickness (82″)
3-1/8″
Max Thickness (200″)
1-3/16″
Cone Bending
✓ Standard
Auto Balance
✓ Single Button
Frame
A572 Gr50 Welded Steel
Warranty
1 Year
Get a Quote All RollTek
TITAN 4P — Full Capacity Table Mild Steel · 36,000 PSI Yield Point
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4P-20/06821/48 ga.
TITAN 4P-20/08825/161/4
TITAN 4P-20/10823/85/16
TITAN 4P-20/13821/23/8
TITAN 4P-20/16825/81/2
TITAN 4P-20/208213/165/8
TITAN 4P-20/2582113/16
TITAN 4P-20/30821-3/161
TITAN 4P-20/35821-3/81-3/16
TITAN 4P-20/40821-9/161-3/8
TITAN 4P-20/45821-3/41-9/16
TITAN 4P-20/508221-3/4
TITAN 4P-20/55822-3/162
TITAN 4P-20/60822-3/82-3/16
TITAN 4P-20/65822-9/162-3/8
TITAN 4P-20/70822-3/42-3/8
TITAN 4P-20/80823-1/82-3/4
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4P-25/061021/48 ga.
TITAN 4P-25/081025/161/4
TITAN 4P-25/101023/85/16
TITAN 4P-25/131021/23/8
TITAN 4P-25/161025/81/2
TITAN 4P-25/2010213/165/8
TITAN 4P-25/25102113/16
TITAN 4P-25/301021-3/161
TITAN 4P-25/351021-3/81-3/16
TITAN 4P-25/401021-9/161-3/8
TITAN 4P-25/451021-3/41-9/16
TITAN 4P-25/5010221-3/4
TITAN 4P-25/551022-3/162
TITAN 4P-25/601022-3/82-3/16
TITAN 4P-25/7510232-3/8
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4P-30/061221/48 ga.
TITAN 4P-30/081225/161/4
TITAN 4P-30/101223/85/16
TITAN 4P-30/131221/23/8
TITAN 4P-30/161225/81/2
TITAN 4P-30/2012213/165/8
TITAN 4P-30/25122113/16
TITAN 4P-30/301221-3/161
TITAN 4P-30/351221-3/81-3/16
TITAN 4P-30/401221-9/161-3/8
TITAN 4P-30/5012221-3/4
TITAN 4P-30/601222-3/82
TITAN 4P-30/701222-3/42-3/8
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4P-40/061611/48 ga.
TITAN 4P-40/081615/161/4
TITAN 4P-40/101623/85/16
TITAN 4P-40/131621/23/8
TITAN 4P-40/161635/81/2
TITAN 4P-40/2016313/165/8
TITAN 4P-40/25164113/16
TITAN 4P-40/301651-3/161
TITAN 4P-40/351651-3/81-3/16
TITAN 4P-40/401651-9/161-3/8
TITAN 4P-40/451661-3/41-9/16
TITAN 4P-40/5016621-3/4
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4P-50/062001/48 ga.
TITAN 4P-50/082005/161/4
TITAN 4P-50/102003/85/16
TITAN 4P-50/132001/23/8
TITAN 4P-50/162005/81/2
TITAN 4P-50/2020013/165/8
TITAN 4P-50/25200113/16
TITAN 4P-50/302001-3/161

* Specifications based on steel with a yield point of 36,000 PSI. ROLLTEK reserves the right to change specifications without prior notice.

Standard Features

  • NC Control System
  • 7″ multi-functional touch screen
  • PLC control — manual, semi-auto & fully automatic
  • 3-Stage Rotation Speed setting
  • Bearing guidance system
  • A572 Gr50 quality frame construction
  • Bottom roll pressure setting
  • Hydraulic top roll lifting and drop-end
  • Automatic balance system by single button
  • Conical bending system and auxiliary parts
  • Top and bottom rolls driven by hydraulic motor and planetary gearbox
  • Planetary system
  • Hidden encoder to save roll rotation
  • Protection system against overloads
  • Continuous turning by single button
  • Induction-hardened and polished rolls (1045)
  • Three-stage view position on mobile control panel
  • Online remote connection
  • Formula page for calculating radius and depth
  • Sound-light buzzer warning system
  • Emergency stop wire around the machine
  • Maintenance time warning page
  • Alarm page for machine warnings
  • CE Certified
  • Transparent protection covers for control panel

Optional Features

  • CNC System
  • Rear laser emergency stop barrier
  • Variable Rotation Speed
  • Central support
  • Hydraulic side supports (2 pieces)
  • Material feeding table
  • Material output table
  • Changeable top roll
  • Automatic central lubrication system
  • Oil cooling system
  • Automation system for different voltage and frequency
3 images — click image for full view

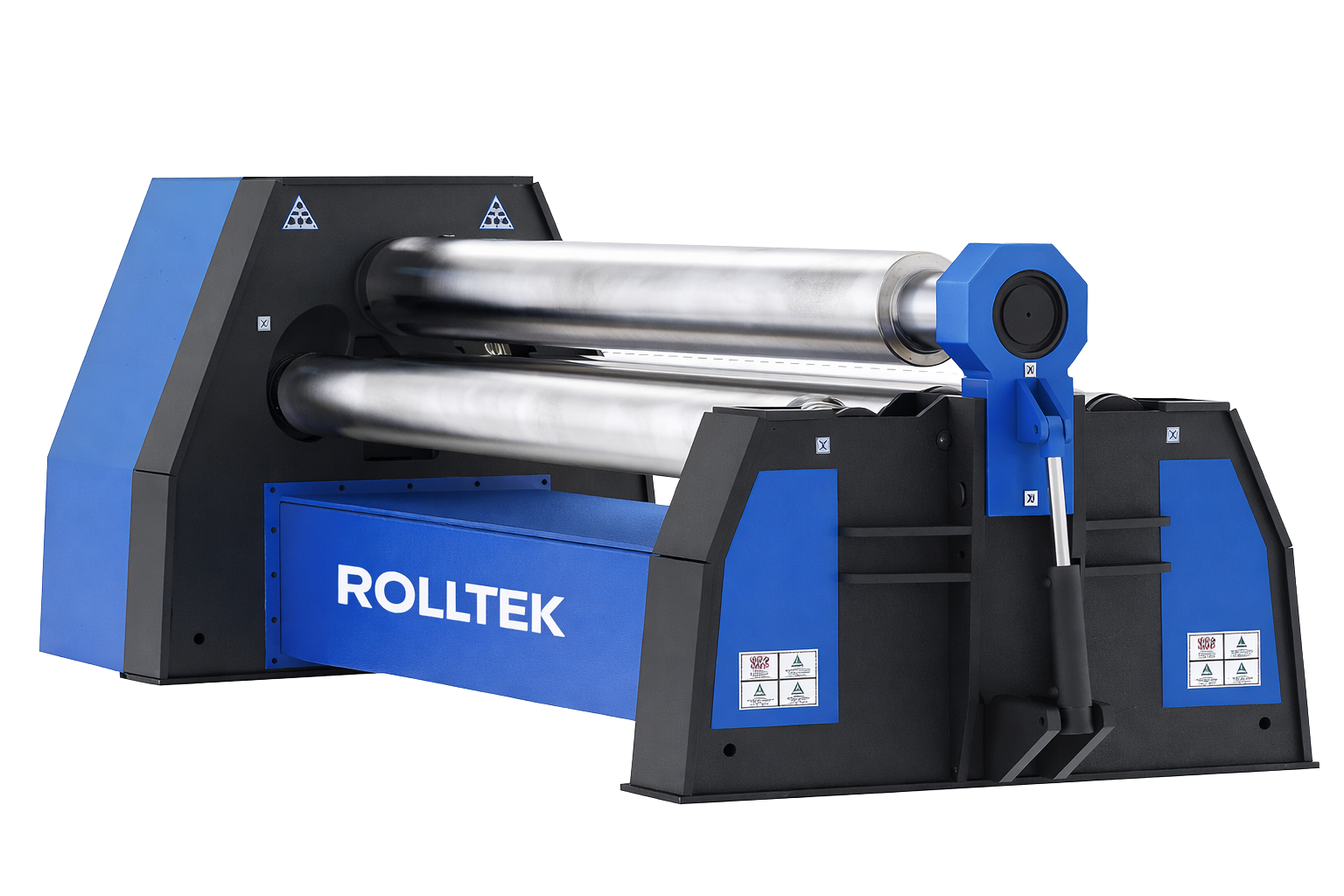

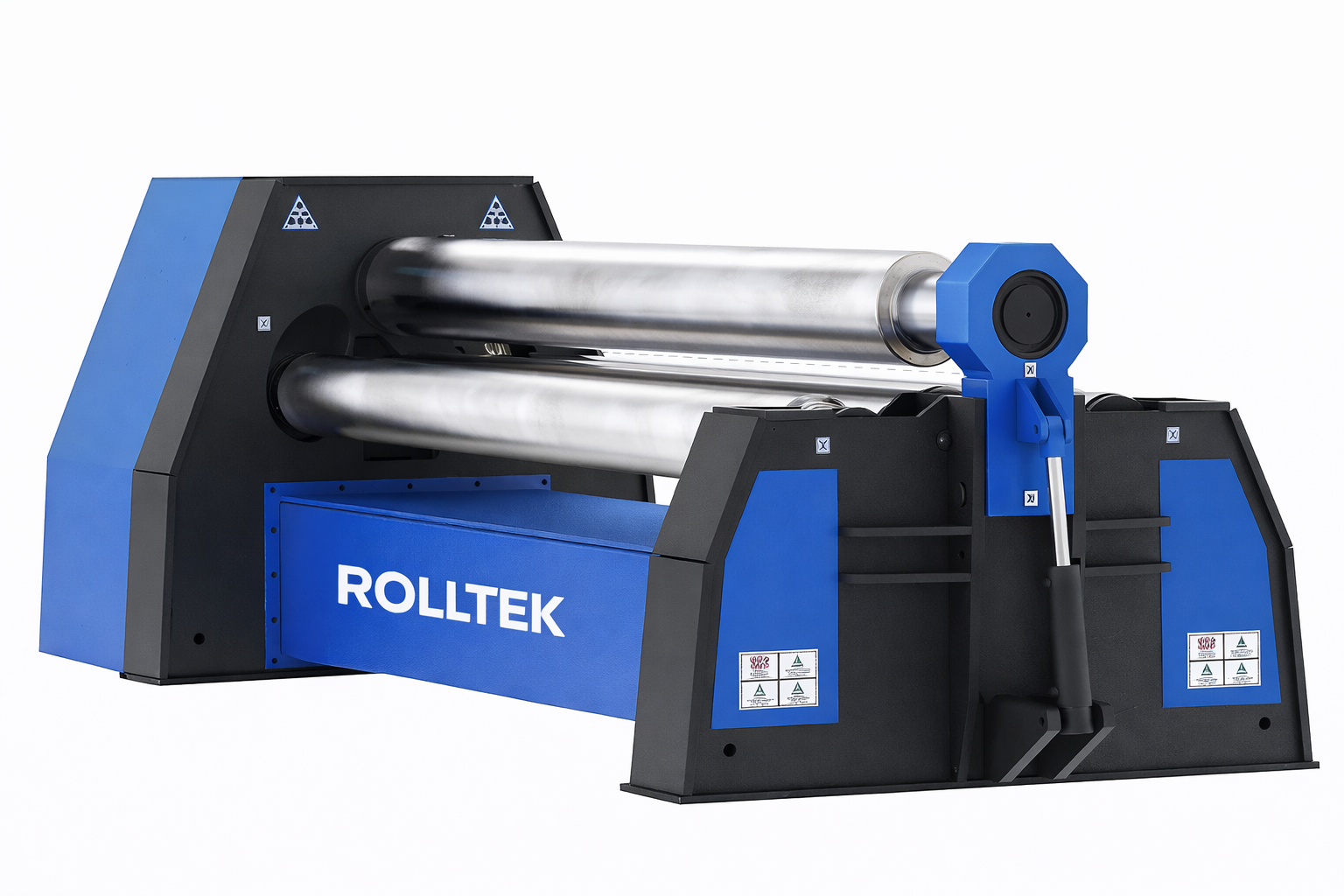

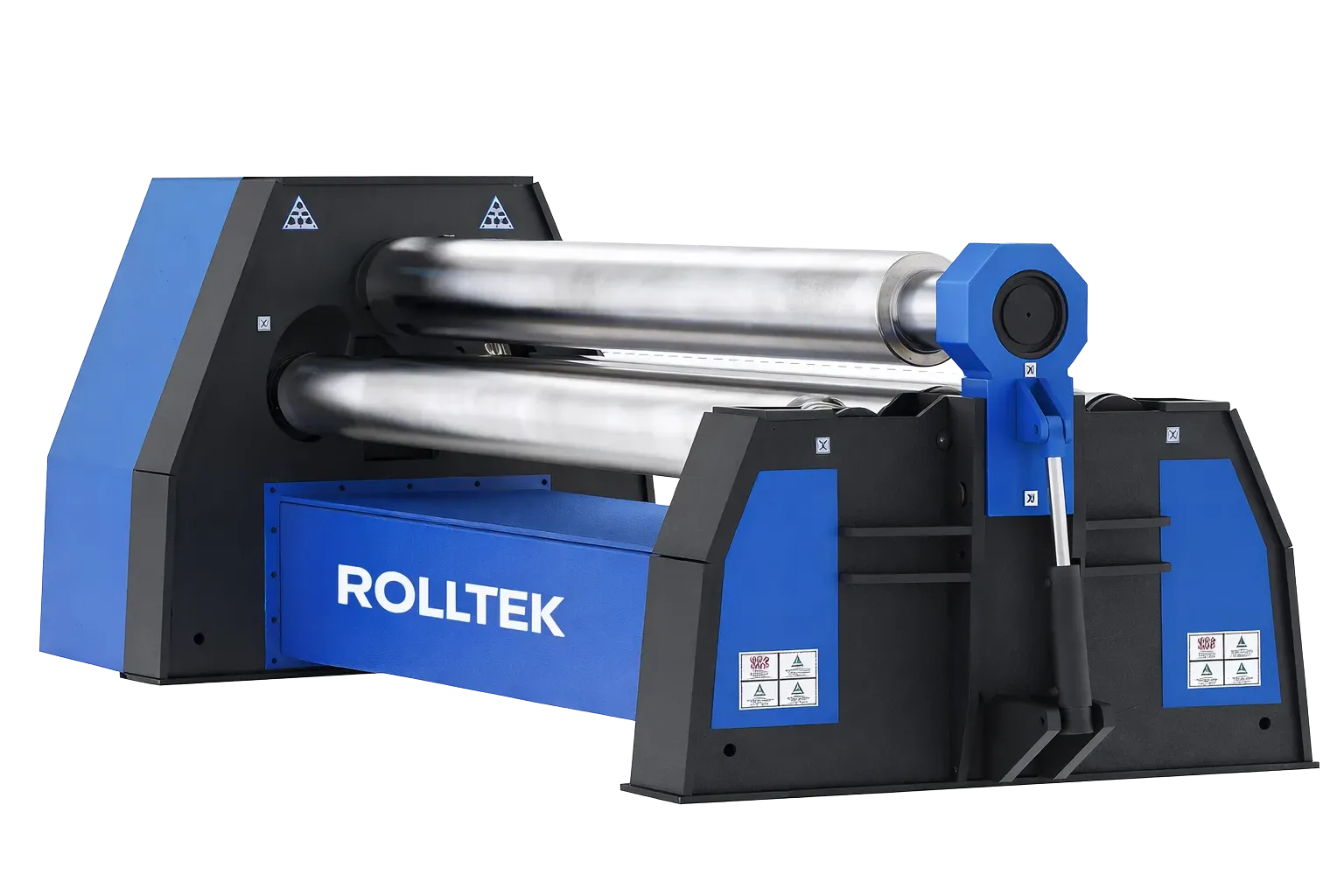

TITAN 4E full size 1
TITAN 4E full size 2
TITAN 4E full size 3
Best Value · Planetary

TITAN 4E

Hydraulic 4-Roll · Planetary Guide · NC Control

Same planetary guide precision as the 4P in a cost-optimized package. Durable A572 Gr50 frame with induction-hardened rolls, conical bending standard, and CE certification. Ideal for shops that need reliable production repeatability without the full CNC feature set.

Guide System
Planetary
Control
NC (Digital Display)
Working Lengths
82″ · 102″ · 122″ · 161″
Max Thickness (82″)
1-9/16″
Max Thickness (161″)
5/8″
Cone Bending
✓ Standard
Frame
A572 Gr50 Welded Steel
Rolls
Induction-hardened 1045
Certification
CE Certified
ISO Standard
ISO & CE Compliant
Get a Quote All RollTek
TITAN 4E — Full Capacity Table Mild Steel · 36,000 PSI Yield Point
ModelWorking Length (in)Max. Thickness (in)Pre-Bending (in)
TITAN 4E-20/06821/48 ga.
TITAN 4E-20/08825/161/4
TITAN 4E-20/10823/85/16
TITAN 4E-20/13821/23/8
TITAN 4E-20/16825/81/2
TITAN 4E-20/208213/165/8
TITAN 4E-20/2582113/16
TITAN 4E-20/30821-3/161
TITAN 4E-20/40821-9/161-3/16
ModelWorking Length (in)Max. Thickness (in)Pre-Bending (in)
TITAN 4E-25/061021/48 ga.
TITAN 4E-25/081025/161/4
TITAN 4E-25/101023/85/16
TITAN 4E-25/131021/23/8
TITAN 4E-25/161025/81/2
TITAN 4E-25/2010213/165/8
TITAN 4E-25/25102113/16
TITAN 4E-25/301021-3/161
ModelWorking Length (in)Max. Thickness (in)Pre-Bending (in)
TITAN 4E-30/061221/48 ga.
TITAN 4E-30/081225/161/4
TITAN 4E-30/101223/85/16
TITAN 4E-30/131221/23/8
TITAN 4E-30/161225/81/2
TITAN 4E-30/2012213/165/8
TITAN 4E-30/25122113/16
ModelWorking Length (in)Max. Thickness (in)Pre-Bending (in)
TITAN 4E-40/061611/48 ga.
TITAN 4E-40/081615/161/4
TITAN 4E-40/101613/85/16
TITAN 4E-40/131611/23/8
TITAN 4E-40/161615/81/2

* Specifications based on steel with a yield point of 36,000 PSI. ROLLTEK reserves the right to change specifications without prior notice.

Standard Features

  • Digital Display
  • Bearing guidance system
  • A572 Gr50 quality frame construction
  • Conical bending system and auxiliary parts
  • Top roll driven by hydraulic motor and planetary gearbox
  • Planetary guide system
  • Protection system against overloads
  • Induction-hardened and polished rolls (1045)
  • Mobile control panel
  • Emergency stop wire around the machine
  • CE Certified

Optional Features

  • Rear laser emergency stop barrier
  • Central support
  • Hydraulic side supports (2 pieces)
  • Material feeding table
  • Material output table
  • Changeable top roll
  • Oil cooling system
  • Automation system for different voltage and frequency
9 images — click image for full view

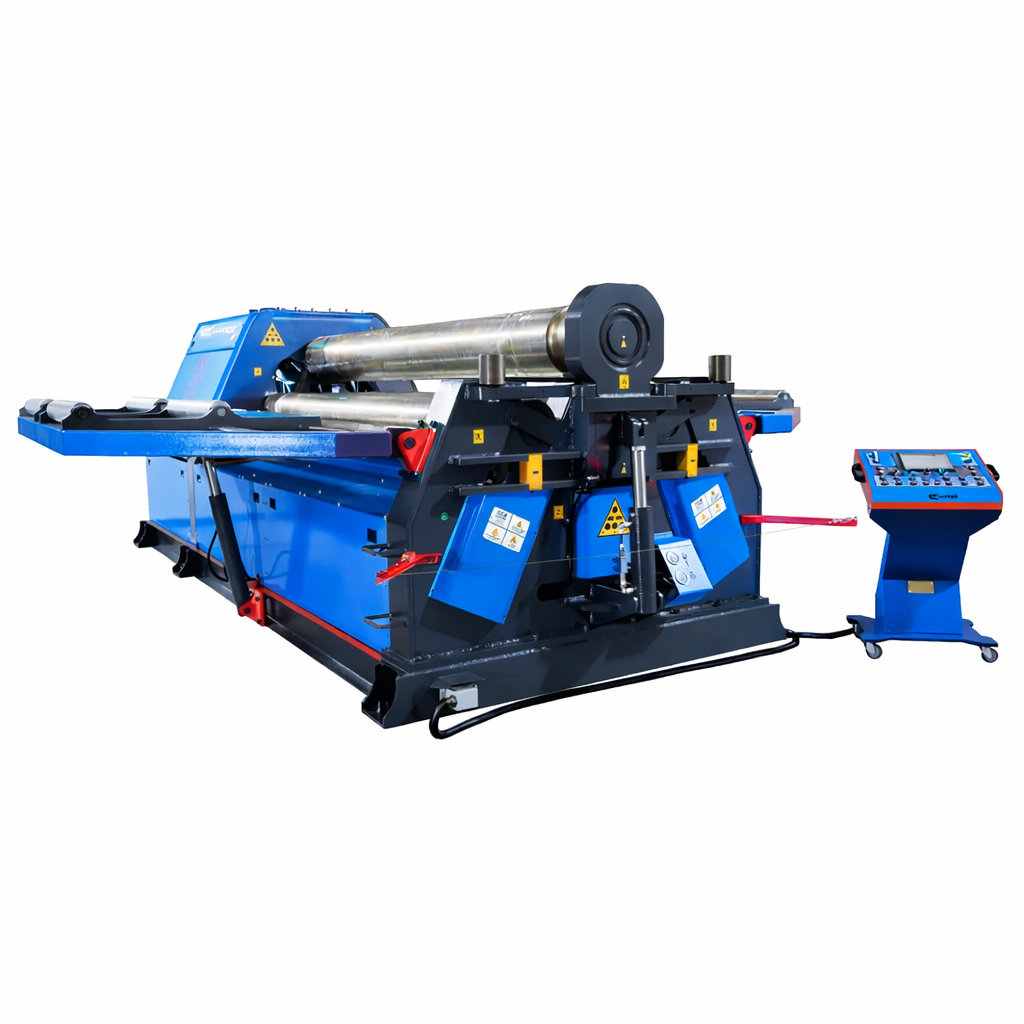

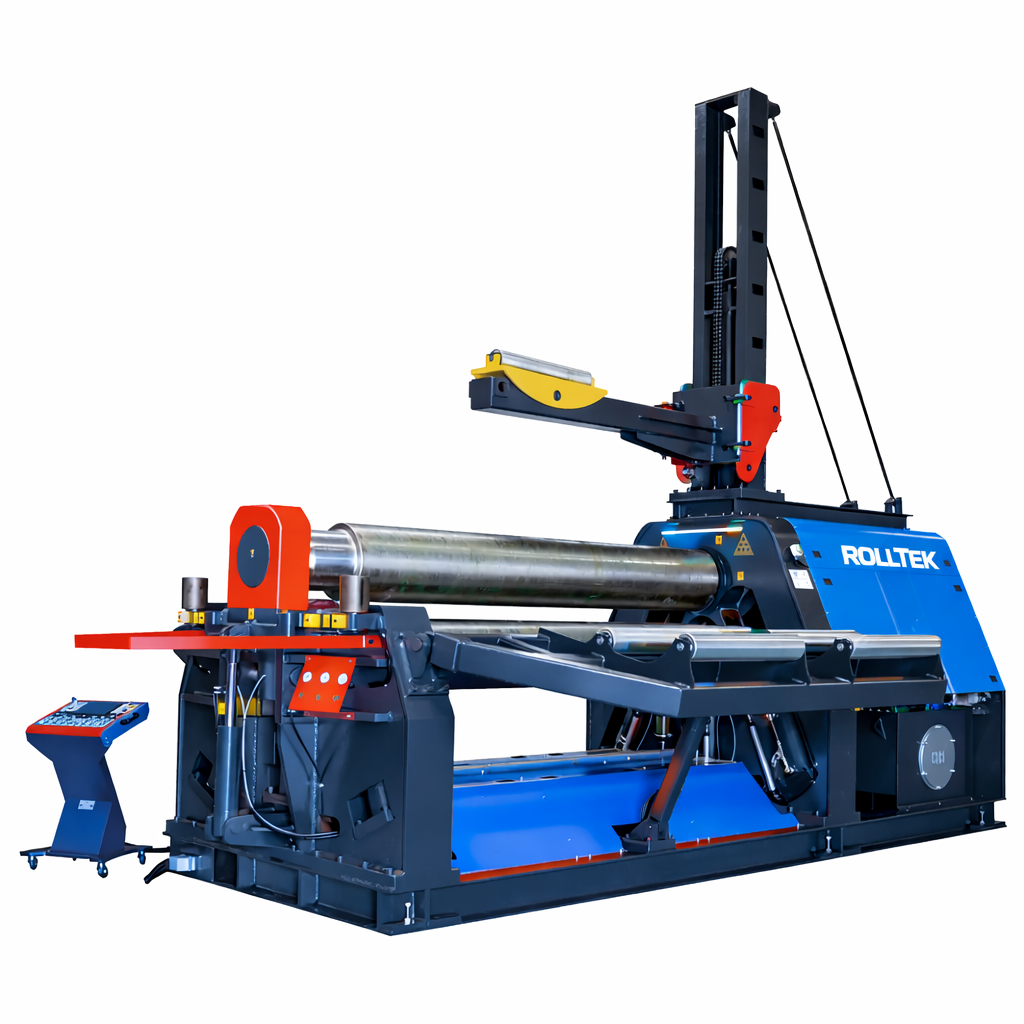

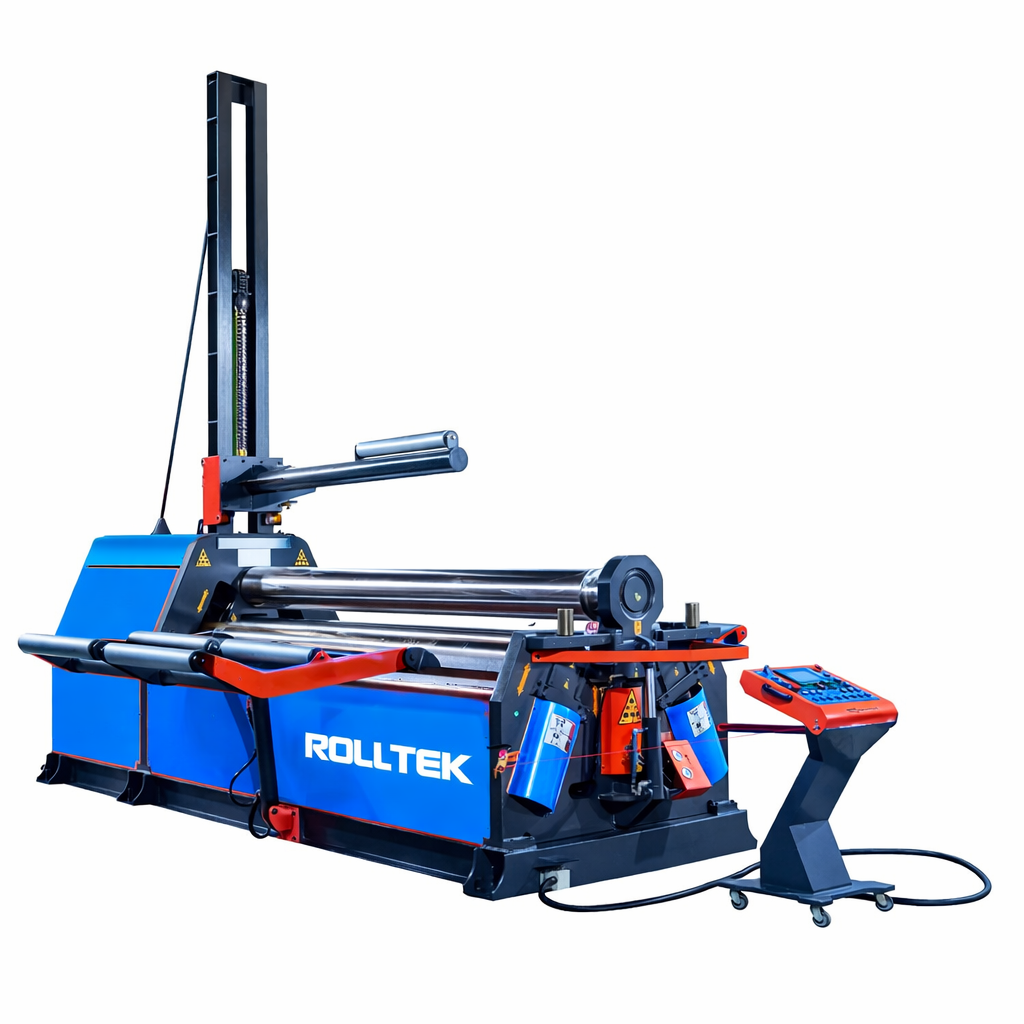

TITAN 4L full size 1
TITAN 4L full size 2

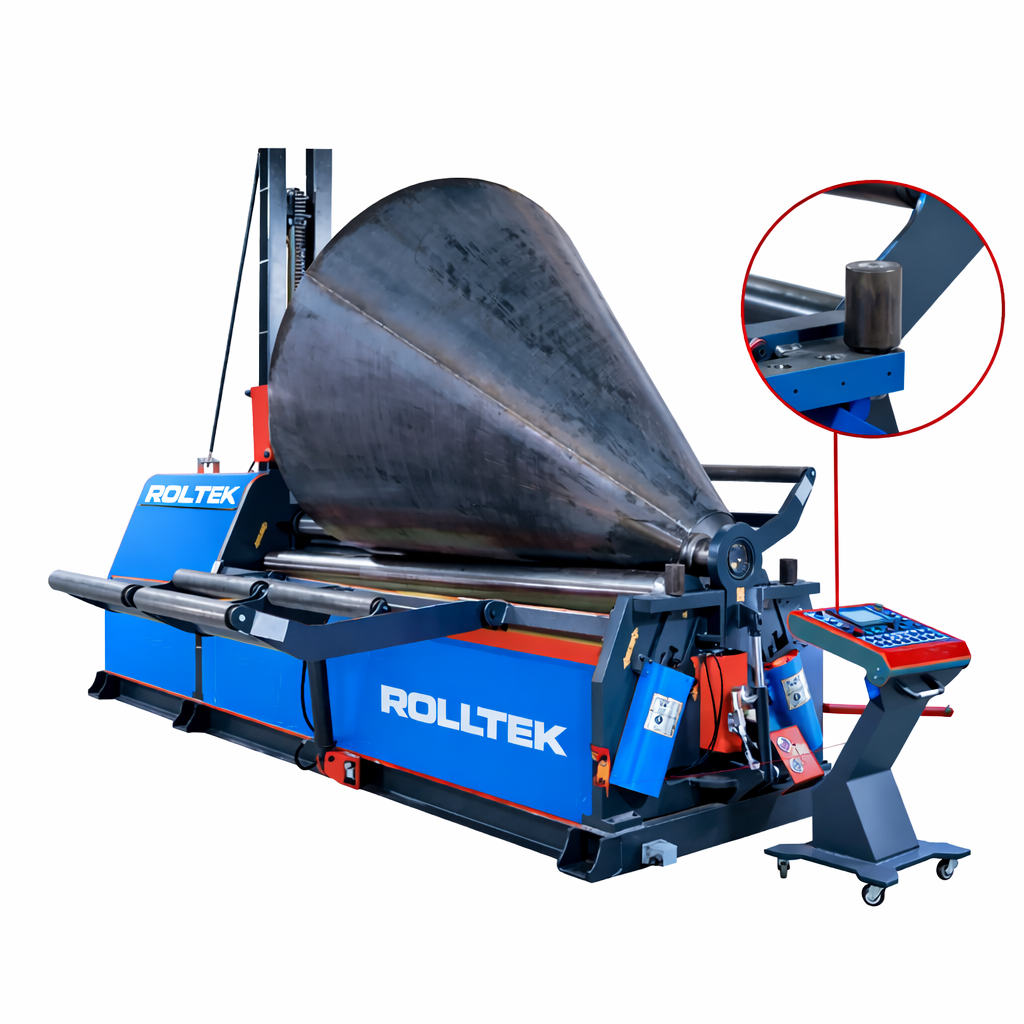

TITAN 4L full size 3
TITAN 4L full size 4
TITAN 4L full size 5

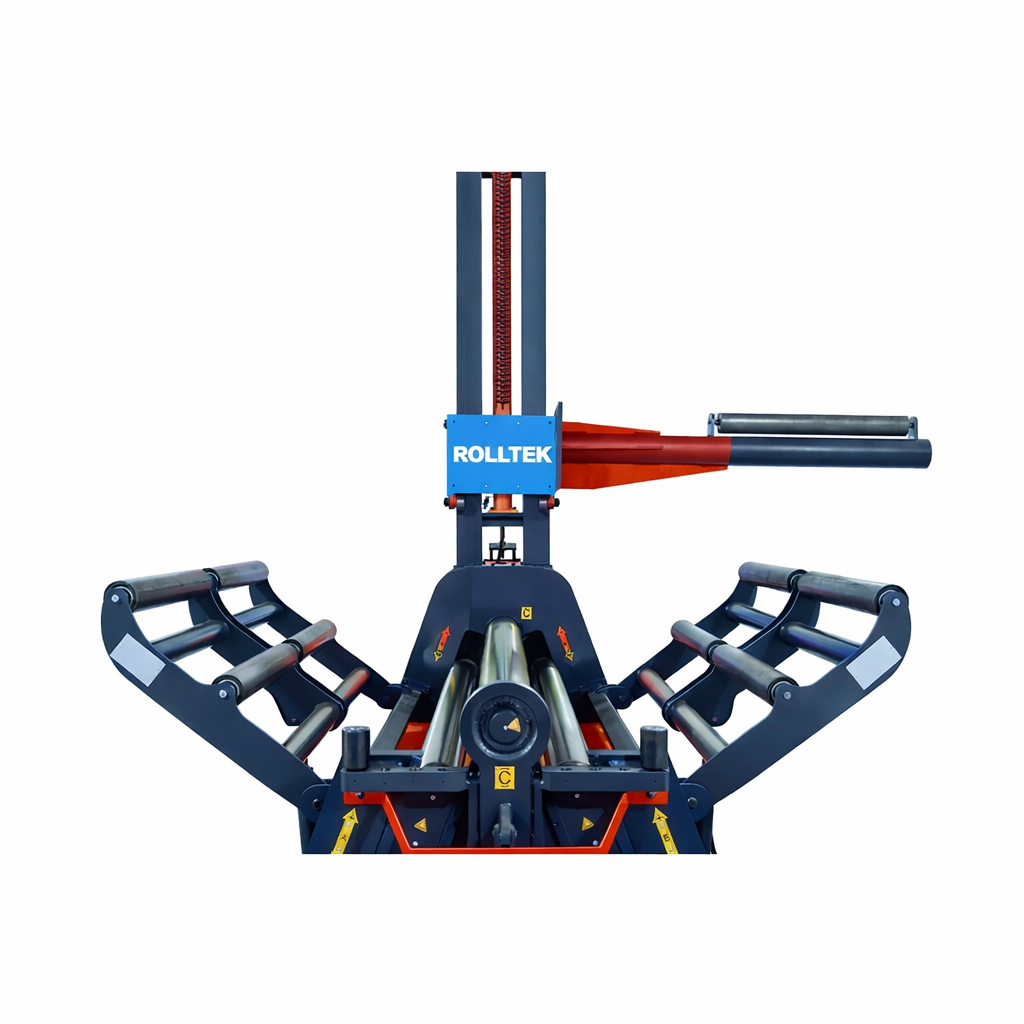

TITAN 4L full size 6

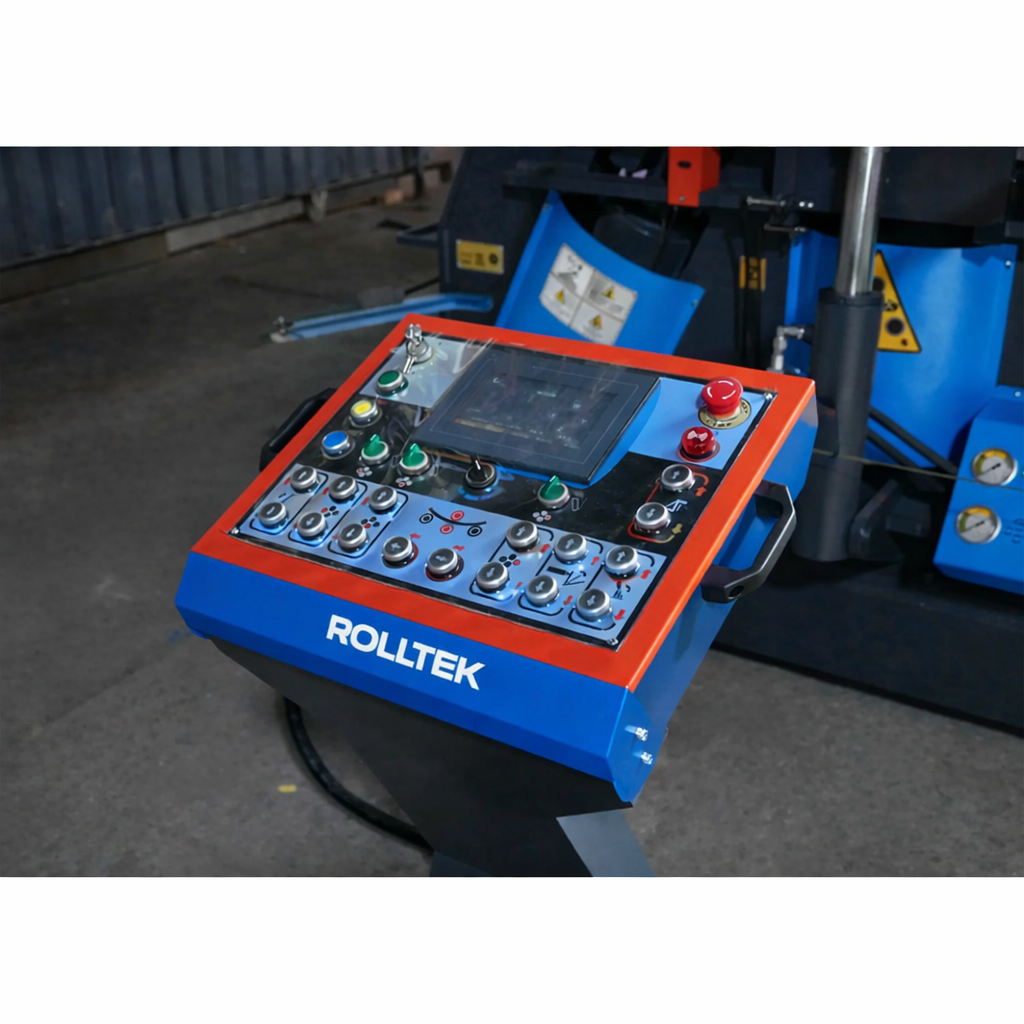

TITAN 4L full size 7

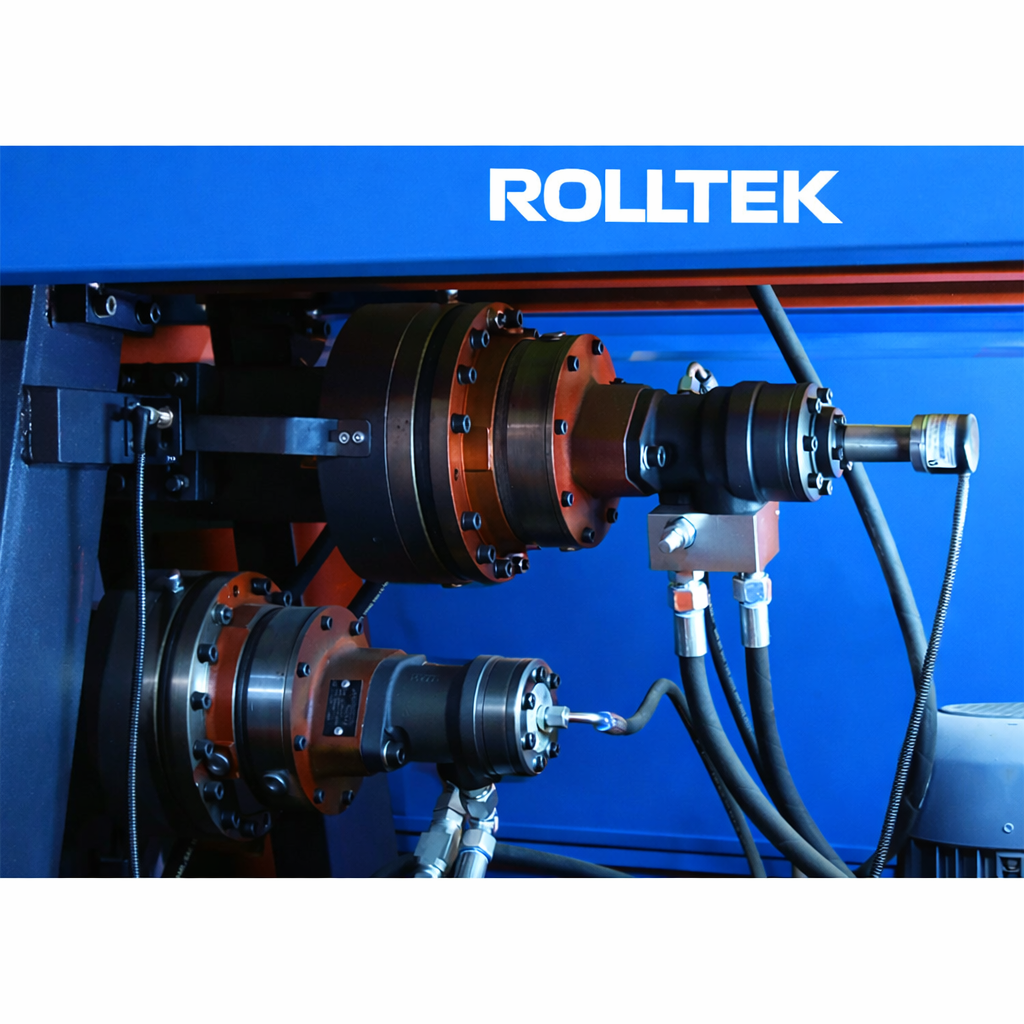

TITAN 4L full size 8

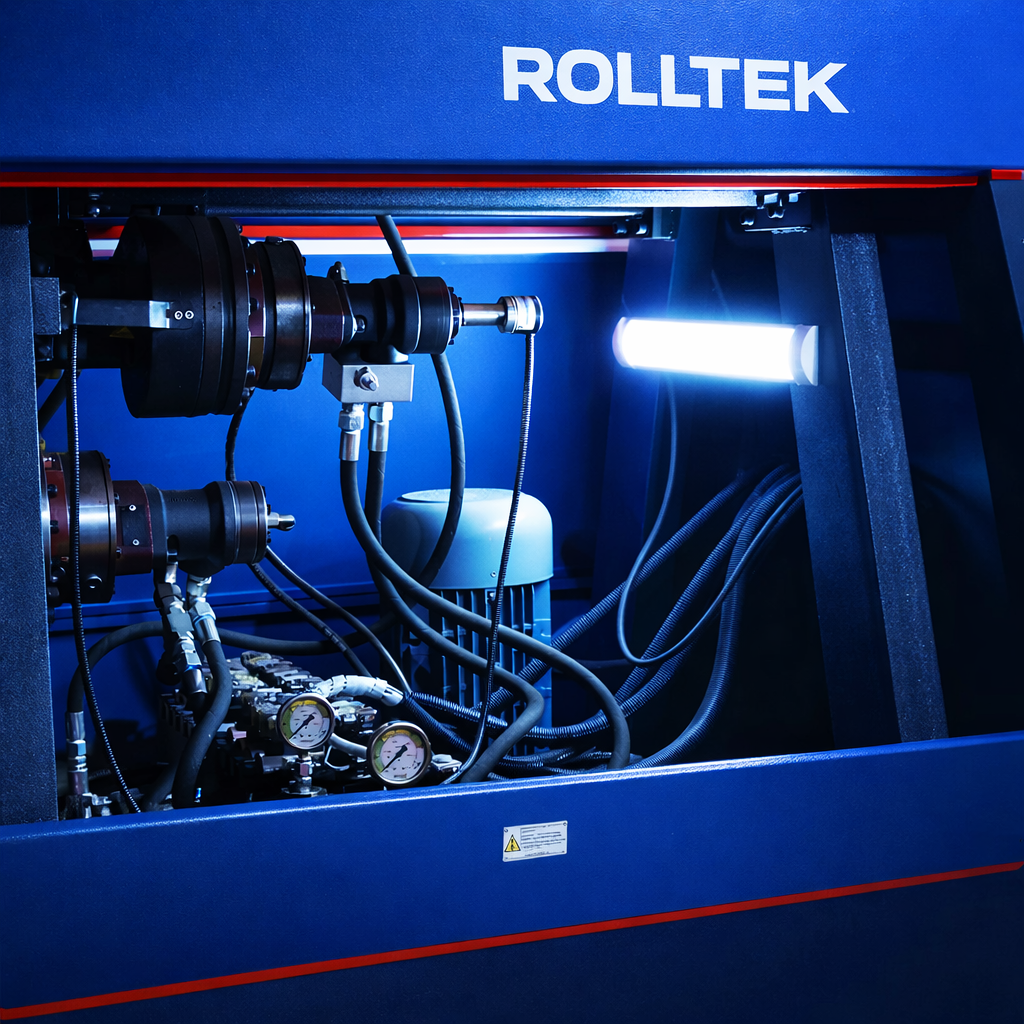

TITAN 4L full size 9
Workhorse · Linear

TITAN 4L

Hydraulic 4-Roll · Linear Guide · Spherical Roller Bearings · NC

Maximum durability across the widest length range in the TITAN family — up to 240″. Spherical roller bearings and a linear guide system deliver long service life and straightforward operation, with optional CNC and full PLC automation available.

Guide System
Linear
Control
NC (optional CNC)
Touch Screen
7″ / 10″ Multi-functional
Working Lengths
82″ · 102″ · 122″ · 161″ · 200″ · 240″
Max Thickness (82″)
3-1/8″
Max Thickness (240″)
1-3/16″
Cone Bending
✓ Standard
Auto Balance
✓ Single Button
Bearings
Spherical Roller
Frame
A572 Gr50 Welded Steel
Get a Quote All RollTek
TITAN 4L — Full Capacity Table Mild Steel · 36,000 PSI Yield Point
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-20/06821/48 ga.
TITAN 4L-20/08825/161/4
TITAN 4L-20/10823/85/16
TITAN 4L-20/13821/23/8
TITAN 4L-20/16825/81/2
TITAN 4L-20/208213/165/8
TITAN 4L-20/2582113/16
TITAN 4L-20/30821-3/161
TITAN 4L-20/35821-3/81-3/16
TITAN 4L-20/40821-9/161-3/8
TITAN 4L-20/45821-3/41-9/16
TITAN 4L-20/508221-3/4
TITAN 4L-20/55822-3/162
TITAN 4L-20/60822-3/82-3/16
TITAN 4L-20/65822-9/162-3/8
TITAN 4L-20/70822-3/42-3/8
TITAN 4L-20/80823-1/82-3/4
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-25/061021/48 ga.
TITAN 4L-25/081025/161/4
TITAN 4L-25/101023/85/16
TITAN 4L-25/131021/23/8
TITAN 4L-25/161025/81/2
TITAN 4L-25/2010213/165/8
TITAN 4L-25/25102113/16
TITAN 4L-25/301021-3/161
TITAN 4L-25/351021-3/81-3/16
TITAN 4L-25/401021-9/161-3/8
TITAN 4L-25/451021-3/41-9/16
TITAN 4L-25/5010221-3/4
TITAN 4L-25/551022-3/162
TITAN 4L-25/601022-3/82-3/16
TITAN 4L-25/7510232-3/8
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-30/061221/48 ga.
TITAN 4L-30/081225/161/4
TITAN 4L-30/101223/85/16
TITAN 4L-30/131221/23/8
TITAN 4L-30/161225/81/2
TITAN 4L-30/2012213/165/8
TITAN 4L-30/25122113/16
TITAN 4L-30/301221-3/161
TITAN 4L-30/351221-3/81-3/16
TITAN 4L-30/401221-9/161-3/8
TITAN 4L-30/5012221-3/4
TITAN 4L-30/601222-3/82
TITAN 4L-30/701222-3/42-3/8
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-40/061611/48 ga.
TITAN 4L-40/081615/161/4
TITAN 4L-40/101623/85/16
TITAN 4L-40/131621/23/8
TITAN 4L-40/161635/81/2
TITAN 4L-40/2016313/165/8
TITAN 4L-40/25164113/16
TITAN 4L-40/301651-3/161
TITAN 4L-40/351651-3/81-3/16
TITAN 4L-40/401651-9/161-3/8
TITAN 4L-40/451661-3/41-9/16
TITAN 4L-40/5016621-3/4
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-50/062001/48 ga.
TITAN 4L-50/082005/161/4
TITAN 4L-50/102003/85/16
TITAN 4L-50/132001/23/8
TITAN 4L-50/162005/81/2
TITAN 4L-50/2020013/165/8
TITAN 4L-50/25200113/16
TITAN 4L-50/302001-3/161
TITAN 4L-50/352001-3/81-3/16
ModelWorking Length (in)Max. Thickness (in)Pre-Bending Thickness (in)
TITAN 4L-60/062401/48 ga.
TITAN 4L-60/082405/161/4
TITAN 4L-60/102403/85/16
TITAN 4L-60/132401/23/8
TITAN 4L-60/162405/81/2
TITAN 4L-60/2024013/165/8
TITAN 4L-60/25240113/16
TITAN 4L-60/302401-3/161

* Specifications based on steel with a yield point of 36,000 PSI. ROLLTEK reserves the right to change specifications without prior notice.

Standard Features

  • NC Control
  • Multi-functional touch screen (7″ up to 12″ top roll dia.; 10″ for 12″+ top roll dia.)
  • PLC control — manual, semi-auto & fully automatic
  • 3-Stage Rotation Speed setting
  • Bearing guidance system
  • A572 Gr50 quality frame construction
  • Bottom roll pressure setting
  • Hydraulic top roll lifting and drop-end
  • Automatic balance system by single button
  • Conical bending system and auxiliary parts
  • Top and bottom rolls driven by hydraulic motor and planetary gearbox
  • Linear guide system
  • Hidden encoder to save roll rotation
  • Protection system against overloads
  • Continuous turning by single button
  • Induction-hardened and polished rolls (1045)
  • Three-stage view position on mobile control panel
  • Online remote connection
  • Formula page for calculating radius and depth
  • Sound-light buzzer warning system
  • Emergency stop wire around the machine
  • Maintenance time warning page
  • Alarm page for machine warnings
  • CE Certified
  • Transparent control panel screen protection

Optional Features

  • CNC System
  • Rear laser emergency stop barrier
  • Variable speed feature
  • Central support
  • Hydraulic side supports (2 pieces)
  • Material feeding table
  • Material output table
  • Changeable top roll
  • Automatic central lubrication system
  • Oil cooling system
  • Automation system for different voltage and frequency
Side-by-Side

TITAN Model Comparison

Full specification comparison across all three TITAN tiers sourced directly from the RollTek Titan Series spec sheet.

SpecificationTITAN 4P
CNC · Planetary		TITAN 4E
NC · Planetary		TITAN 4L
NC · Linear
Guide SystemPlanetaryPlanetaryLinear
Control TypeCNC / NCNCNC (opt. CNC)
Touch Screen7″ Multi-functionalDigital Display7″ / 10″ Multi-functional
PLC Auto Modes✓ Manual/Semi/Full Auto–✓ Manual/Semi/Full Auto
Auto Balance System✓ Single Button–✓ Single Button
Pre-bend Both Ends✓ Single Pass✓ Single Pass✓ Single Pass
Cone Bending✓ Standard✓ Standard✓ Standard
Hydraulic Drop-End✓ Standard–✓ Standard
Hidden Encoder✓ Standard–✓ Standard
Online Remote Connect✓ Standard–✓ Standard
Induction-Hardened Rolls✓ 1045 Grade✓ 1045 Grade✓ 1045 Grade
Frame MaterialA572 Gr50A572 Gr50A572 Gr50
Max Working Length200″161″240″
Max Plate Thickness (82″)3-1/8″1-9/16″3-1/8″
CE Certified✓✓✓
Best ForCNC automationMid-range productionMax durability & reach
4-Roll Advantage

Why 4-Roll Outperforms 3-Roll

The TITAN 4-roll design eliminates the most costly bottleneck in plate rolling — manual plate handling between passes.

40–60%
Throughput increase vs. manual 3-roll operation
18–24 mo
Typical ROI window for high-production shops
1 Pass
Pre-bend and roll both ends without flipping the plate
240″
Maximum working length available in the TITAN 4L
Engineering

Built into Every TITAN

Core technologies shared across all three TITAN models.

🔧

Induction-Hardened Rolls

1045 grade rolls — induction-hardened and polished for wear resistance and long service life even when rolling high-yield-strength plate continuously.

⚙️

A572 Gr50 Frame

Stress-relieved, zero-deflection frame in A572 Grade 50 structural steel. No flex means no dimensional error across the full working length.

🎯

Single-Pass Pre-Bending

The pinching roll holds the plate square while both ends pre-bend in one continuous cycle — no flipping, no repositioning, no wasted time.

📐

Conical Bending System

Tilting side rolls and auxiliary conical bending parts standard on all models for storage tank heads, pressure vessel reducers, and tower transitions.

🛡️

Overload Protection

Hydraulic overload protection prevents damage to rolls, frame, and tooling during unexpected material variations or operator errors.

📊

Mobile Control Panel

Operator-facing mobile control panel with three-stage view positioning for convenient setup and through-cycle monitoring on every TITAN model.

Technology

3-Roll vs. 4-Roll: Which Fits Your Shop?

Match machine type to your material envelope, production volume, and takt time requirements.

Initial Pinch 3-Roll

  • Requires manual plate flipping between passes
  • Pre-bends one end at a time
  • Higher operator skill dependency
  • Lower initial investment
  • Best for low-volume structural work
  • Suitable for dedicated, repeat jobs
  • Single-pass rolling — no plate flipping required
  • Pre-bend both ends in one continuous cycle
  • Automatic plate squaring reduces skill dependency
  • Full CNC integration available (TITAN 4P)
  • Part-to-part consistency across high-production runs
  • Ready-to-weld cylinders with no secondary fit-up
Applications

Where TITAN Plate Rolls Are at Work

Specified across pressure vessels, wind towers, shipbuilding, heat exchangers, and heavy structural fabrication.

Pressure Vessels & Storage Tanks

TITAN 4-roll machines deliver the pre-bend precision required by ASME Section VIII pressure vessel codes. Single-pass rolling ensures parallel edges for automated circumferential welding with no manual fit-up correction.

Wind Tower Sections

Rolling large-diameter, thick-wall wind tower cans requires zero-deflection frames and cone bending capability. The TITAN 4P handles full-length transitions with CNC-controlled precision; the TITAN 4L covers lengths up to 240″.

Shipbuilding & Marine

Hull plates, pipe spools, and structural curves in marine-grade alloys demand wide working envelopes and consistent repeatability — core strengths of the full TITAN family.

Heat Exchangers & Boilers

Shell-and-tube heat exchanger fabrication requires consistent ID from part to part. The TITAN 4P CNC system stores job parameters and recalls them for repeat orders, eliminating setup time on known parts.

Structural & Architectural Fabrication

Curved structural sections, arched beams, and complex profiles all benefit from the TITAN’s combination of capacity and control across a wide material envelope including mild steel, stainless, aluminum, and Hardox.

Not Sure Which TITAN Fits?

The TITAN series covers material up to 3-1/8″ thick and 240″ wide across all three tiers. Our application engineers will size the right model for your production profile. Request a quote and we’ll help you choose.

Ready to spec your TITAN?

Tell us your plate thickness, working width, material, and production volume. We’ll configure the right TITAN tier for your shop.

Request a Quote › Back to All RollTek Equipment

Request a Quote — TITAN Series

We respond within 1 business day.
×
Machine Selection
Material & Capacity
Contact Information
Rise Tek Machinery — Footer
