VERTEX Series — 3-Roll Plate Rolls
Four model tiers — from full hydraulic precision to economy mechanical — with model-specific working widths, material ratings, and pre-bending limits.
- 4
- Model Tiers
- 67+
- Total Models
- 25.6″–120.1″
- Working Length Range
- .47″
- 3H Pre-bend at 61″ / ×5 ØTop / 34,000 PSI
Choose Your VERTEX
Select a model to view full specifications, complete capacity tables, and standard features.

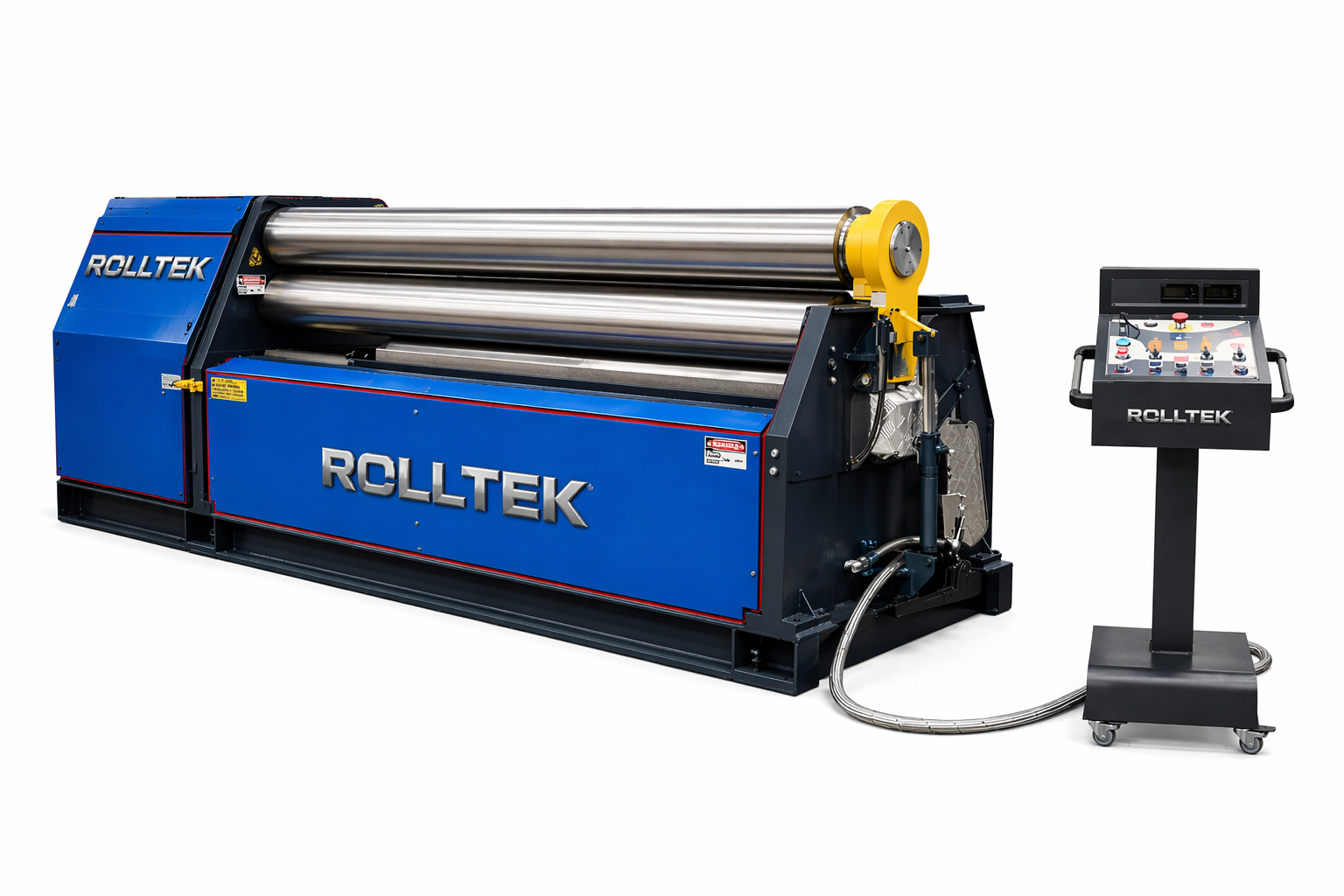

VERTEX 3H

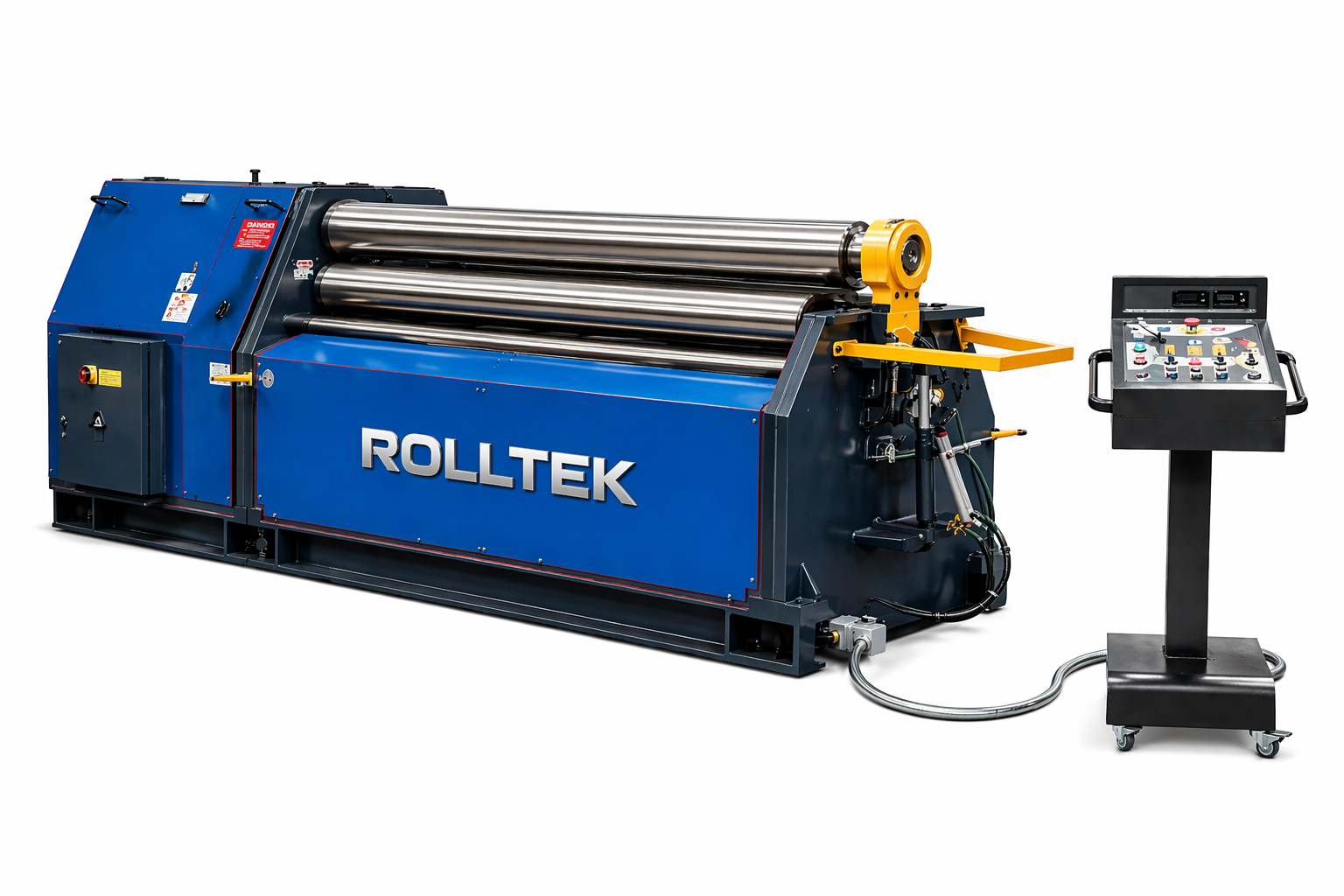

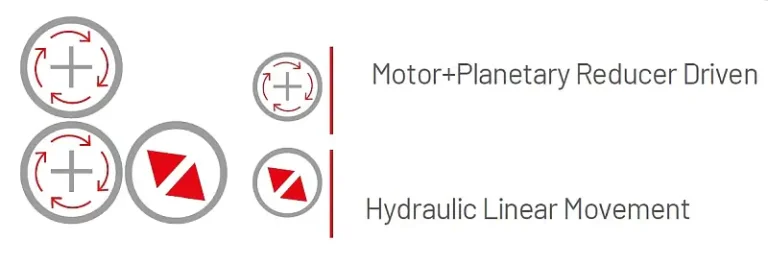

Hydraulic 3-roll with planetary gearbox powering top & bottom rolls, hydraulic drop-end, and hydraulic side & bottom roll movement. The 3H 1550×250 lists .47″ pre-bending at the ×5 top-roll-diameter condition, at 61″ working length in 34,000 PSI yield steel. Check the selected model row before sizing a job.
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 650×80 | 25.6 | 13 ga. | 11 ga. |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 1050×80 | 41.3 | 16 ga. | 14 ga. |
| VERTEX 3H 1050×100 | 41.3 | 14 ga. | 13 ga. |
| VERTEX 3H 1050×130 | 41.3 | 13 ga. | 11 ga. |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 1270×80 | 50.0 | 19 ga. | 16 ga. |
| VERTEX 3H 1270×100 | 50.0 | 16 ga. | 14 ga. |
| VERTEX 3H 1270×130 | 50.0 | 11 ga. | 9 ga. |
| VERTEX 3H 1270×150 | 50.0 | 9 ga. | .2" |
| VERTEX 3H 1270×180 | 50.0 | .22" | .3" |
| VERTEX 3H 1270×200 | 50.0 | .39" | .39" |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 1550×80 | 61.0 | 26 ga. | 19 ga. |
| VERTEX 3H 1550×100 | 61.0 | 19 ga. | 16 ga. |
| VERTEX 3H 1550×130 | 61.0 | 13 ga. | 10 ga. |
| VERTEX 3H 1550×150 | 61.0 | 10 ga. | 7 ga. |
| VERTEX 3H 1550×180 | 61.0 | .2" | .28" |
| VERTEX 3H 1550×200 | 61.0 | .28" | .35" |
| VERTEX 3H 1550×220 | 61.0 | .31" | .39" |
| VERTEX 3H 1550×250 | 61.0 | .39" | .47" |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 2050×130 | 80.7 | 14 ga. | 11 ga. |
| VERTEX 3H 2050×150 | 80.7 | 11 ga. | 9 ga. |
| VERTEX 3H 2050×180 | 80.7 | 9 ga. | .24" |
| VERTEX 3H 2050×200 | 80.7 | .24" | .31" |
| VERTEX 3H 2050×220 | 80.7 | .28" | .35" |
| VERTEX 3H 2050×250 | 80.7 | .31" | .39" |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 2550×150 | 100.4 | 14 ga. | 11 ga. |
| VERTEX 3H 2550×180 | 100.4 | 11 ga. | 9 ga. |
| VERTEX 3H 2550×200 | 100.4 | 9 ga. | .24" |
| VERTEX 3H 2550×220 | 100.4 | .2" | .28" |
| VERTEX 3H 2550×250 | 100.4 | .24" | .31" |
| Model | Working Length (in) | Prebend ×1.5 ØTop (in) | Prebend ×5 ØTop (in) |
|---|---|---|---|
| VERTEX 3H 3100×180 | 120.1 | 14 ga. | 11 ga. |
| VERTEX 3H 3100×200 | 120.1 | 11 ga. | 9 ga. |
| VERTEX 3H 3100×220 | 120.1 | 9 ga. | .24" |
| VERTEX 3H 3100×250 | 120.1 | .2" | .28" |
* Specifications based on steel with a yield point of 34,000 PSI. ROLLTEK reserves the right to change specifications without prior notice. Ratings are model-specific. The 3H columns are pre-bending ratings; the 3MA separates pre-bending from bending at the stated diameter conditions. The 3HX and 3MB tables do not provide separate pre-bending ratings. Confirm actual thickness and material grade rather than treating gauge and inch entries as interchangeable.
Standard Features
- Welded Frames

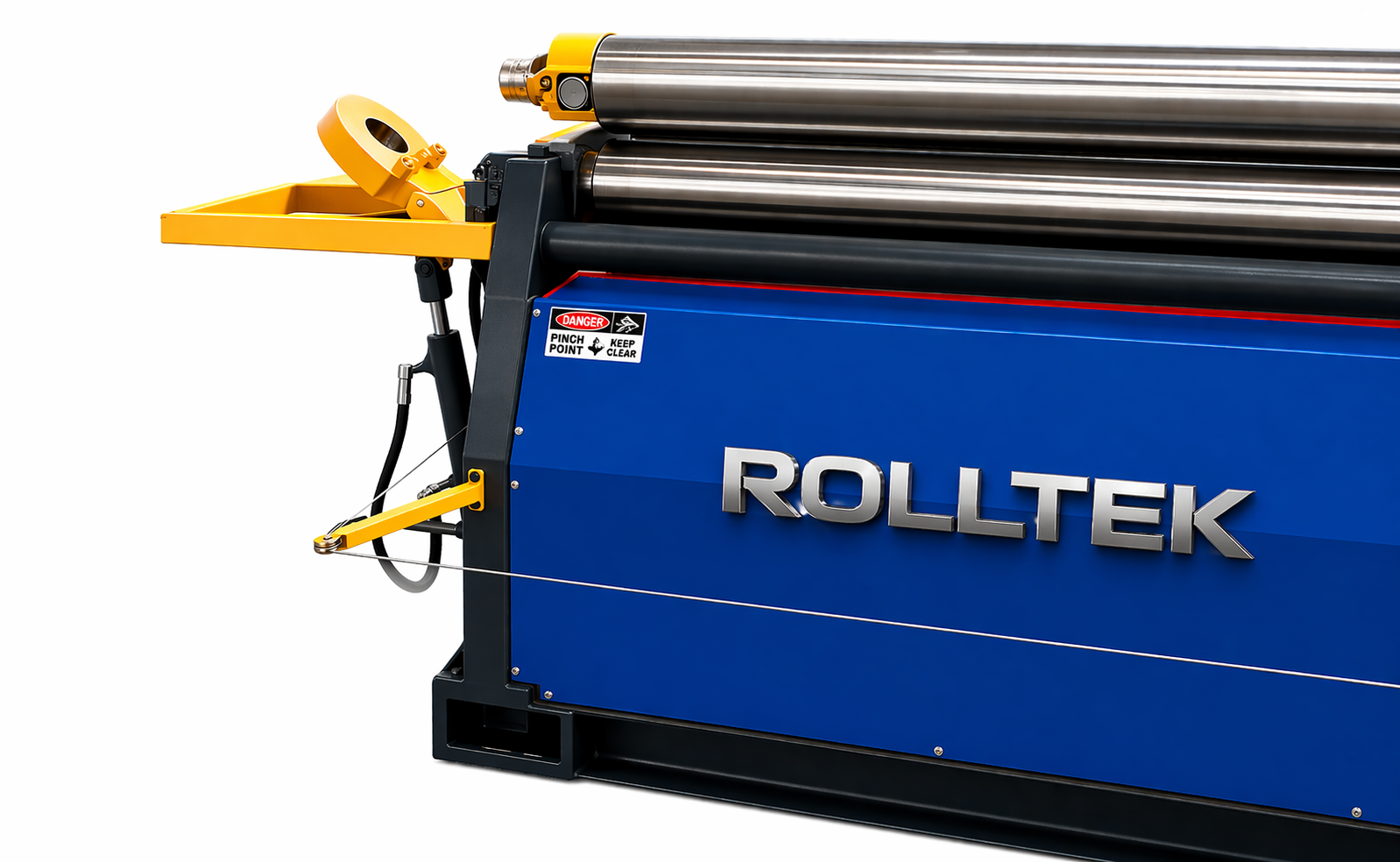

- Hydraulic Drop-end
- Mobile Control Panel
- Powered Rolls – Planetary Gearbox (Top & Bottom)
- Hydraulic movement of Side & Bottom Roll
- Main Motor with Brake
- Conical Bending, Pre-Bending available
- Side Roll with Ball Bearings for thin sheet works
- CSA + UL Certified
- 1050 Grade certificated forged steel rolls
- Hardened rolls
- Digital Read-Outs ×2
- User Manual
Optional Features
- Center Support for large diameters
- Hydraulic Side Supports for large diameters
- Ground and polished rolls

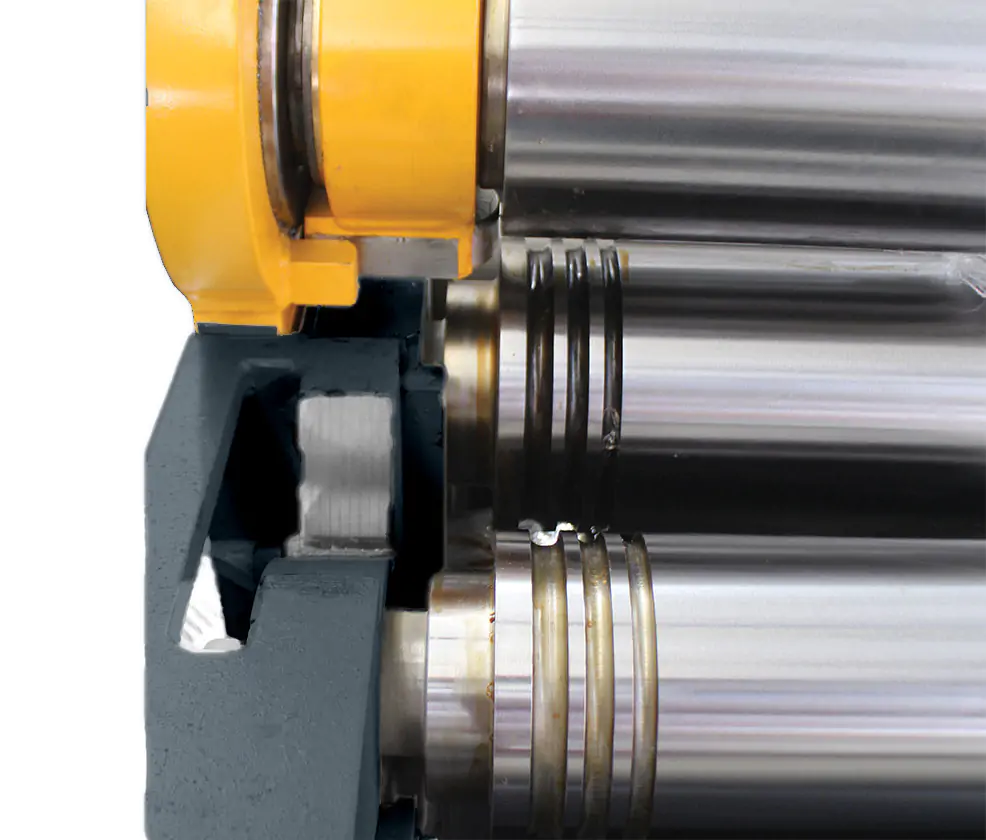

- Wire grooves on roll ends
- NC Control
- Double Speed Rotation
- Adjustable Rotation Speed – Stepless
- Hydromotor Power

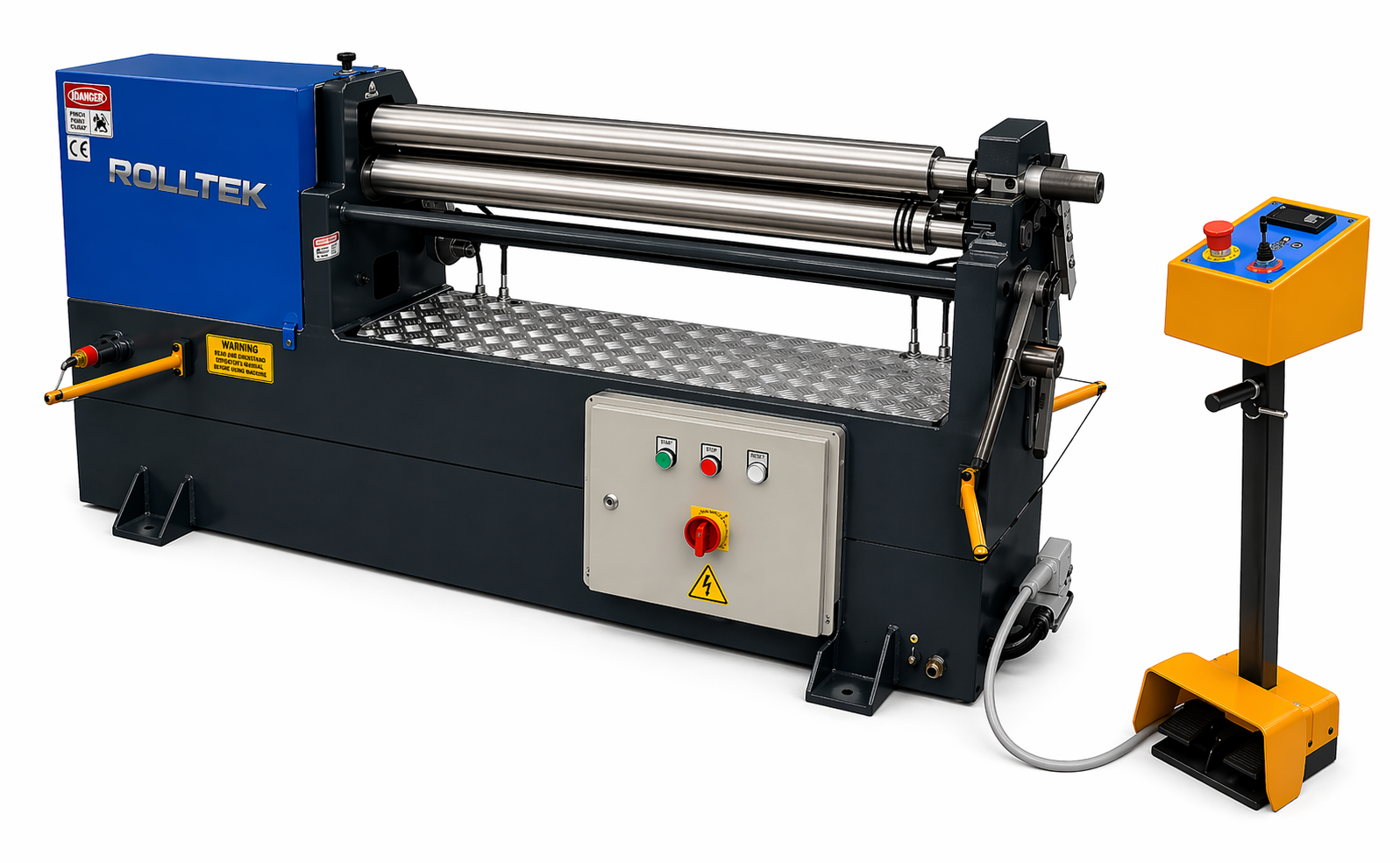

VERTEX 3HX
Mechanical gear drive for all 3 rolls with hydraulic rear roll cylinder for precise positioning. Cast iron mainframes for vibration dampening. Joystick-controlled conical bending with induction-hardened rolls standard.
| Model | Working Length (in) | Bending Capacity | Roll Diameters Ø (in) |
|---|---|---|---|
| VERTEX 3HX-50x35 | 50 | 13 ga. | 3.54 |
| VERTEX 3HX-61x35 | 61 | 14 ga. | 3.54 |
| VERTEX 3HX-81x37 | 81 | 16 ga. | 3.74 |
* Specifications based on steel with a yield point of 34,000 PSI. ROLLTEK reserves the right to change specifications without prior notice. Ratings are model-specific. The 3H columns are pre-bending ratings; the 3MA separates pre-bending from bending at the stated diameter conditions. The 3HX and 3MB tables do not provide separate pre-bending ratings. Confirm actual thickness and material grade rather than treating gauge and inch entries as interchangeable.
Standard Features
- All 3-Rolls powered by a single gearbox and gear system
- SAE 1050 quality certificated induction-hardened steel rolls with high tensile strength

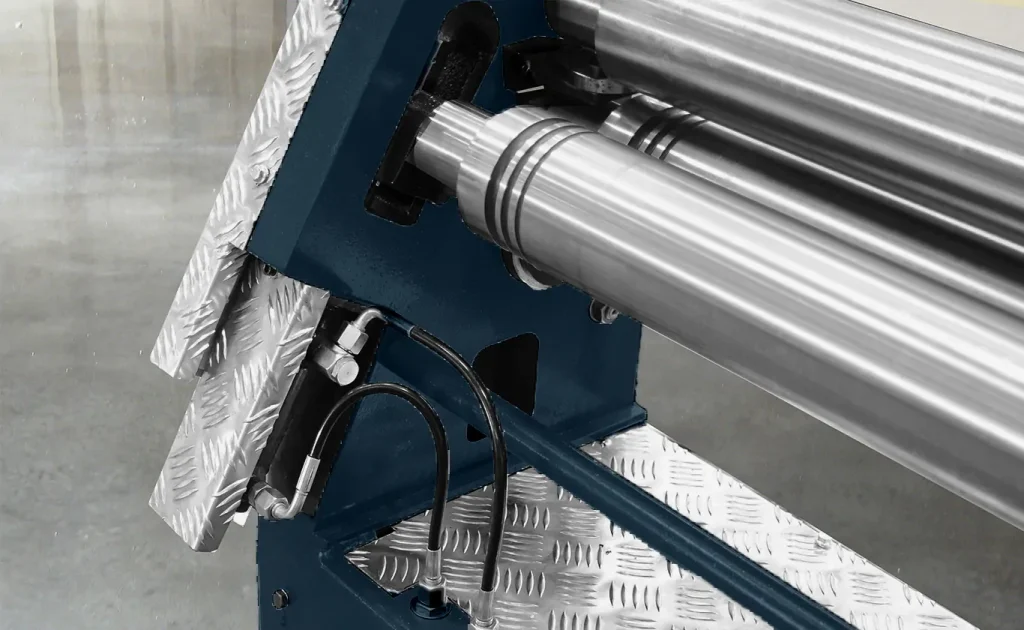

- Cast iron mainframes
- Mobile control panel with foot pedal

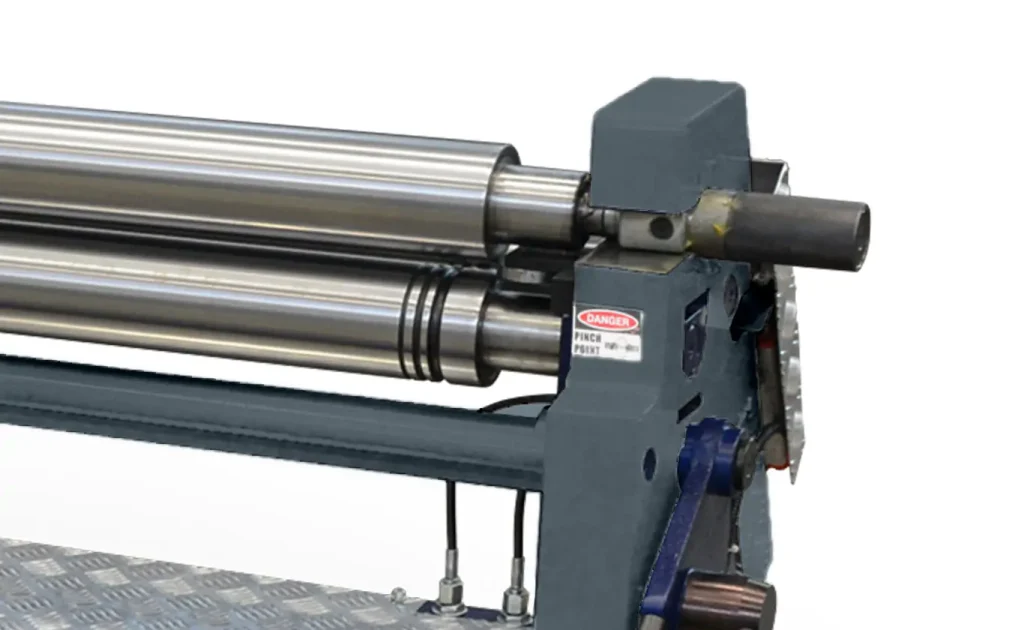

- Conical bending device — easy conical positioning with joystick
- Precision bending with brake motor
- CSA + UL Certified
- User's manual
- Digital read-out and joystick for rear roll position control
- Manual drop-end mechanism
- Wire grooves on rolls Ø.16 – Ø.27 – Ø.39″
- Hydraulic rear roll cylinder
Optional Features
- Contact us for optional upgrade details

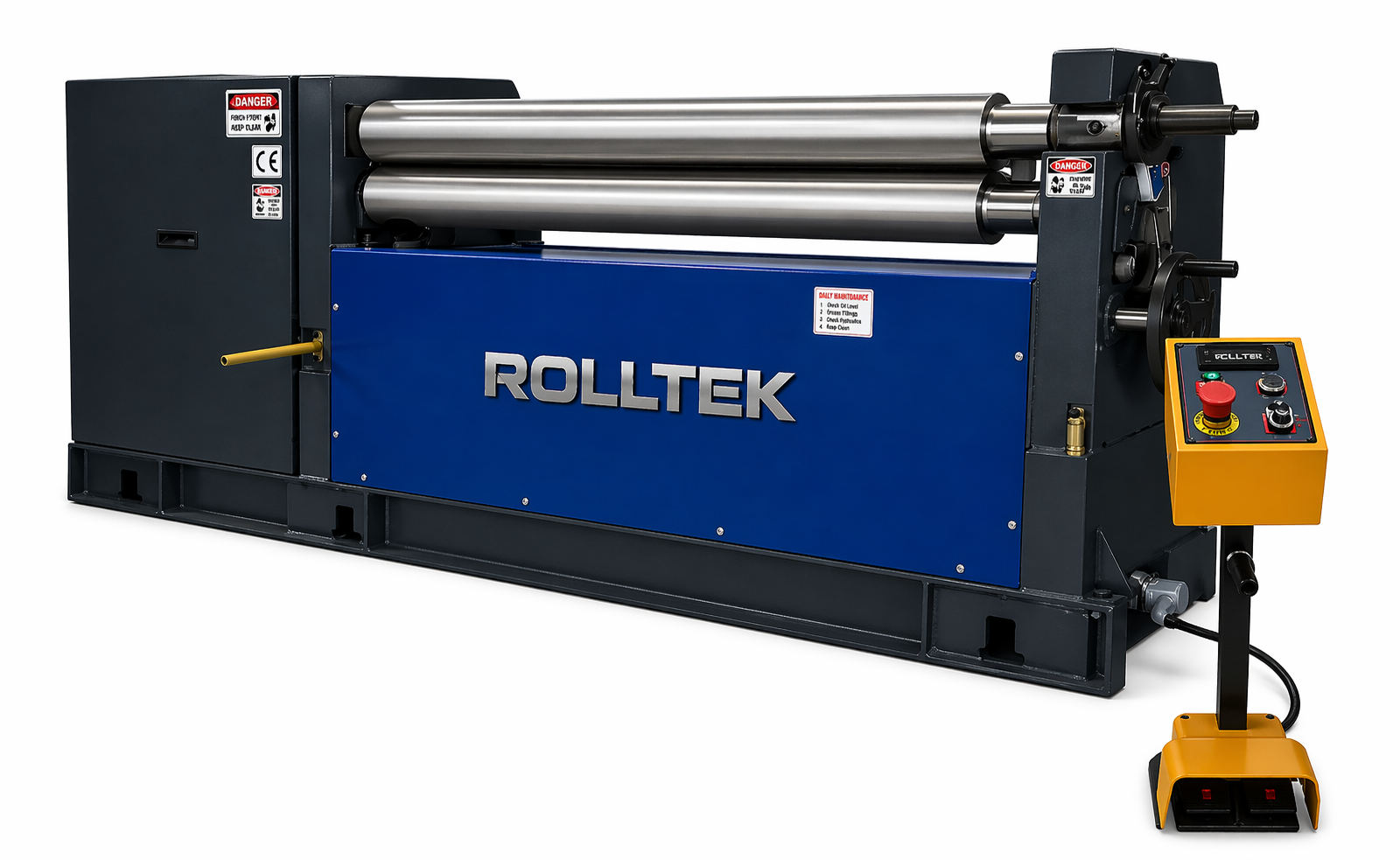

VERTEX 3MA

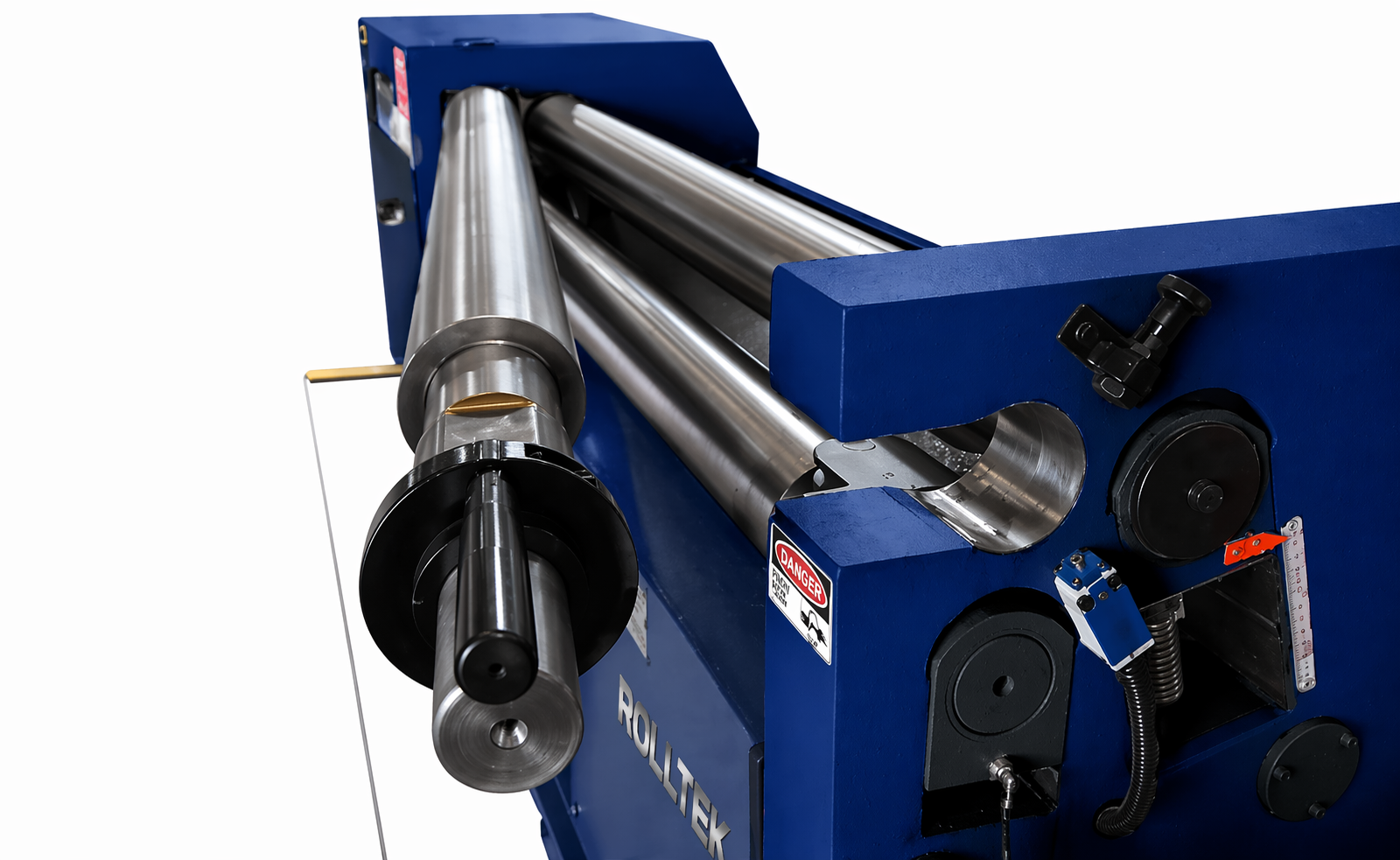

Planet reducer driven with motorised back roll adjustment. The most upgradeable VERTEX — optional NC control, plastic-coated rolls for Alucobond, profile bending sets, and variable speed. Central lubrication standard. CSA + UL certified.
| Model | Working Length (in) | Prebend ×1.5 Ø (in) | Prebend ×5 Ø (in) | Bend ×1.5 Ø (in) | Bend ×5 Ø (in) |
|---|---|---|---|---|---|
| VERTEX 3MA 1050×130 | 41 | .20 | .24 | .24 | .28 |
| VERTEX 3MA 1050×150 | 41 | .24 | .28 | .28 | .31 |
| VERTEX 3MA 1050×170 | 41 | .28 | .31 | .31 | .35 |
| VERTEX 3MA 1050×190 | 41 | .31 | .35 | .35 | .39 |
| Model | Working Length (in) | Prebend ×1.5 Ø (in) | Prebend ×5 Ø (in) | Bend ×1.5 Ø (in) | Bend ×5 Ø (in) |
|---|---|---|---|---|---|
| VERTEX 3MA 1550×130 | 61 | 9 ga. | .20 | .20 | .24 |
| VERTEX 3MA 1550×150 | 61 | .20 | .24 | .24 | .28 |
| VERTEX 3MA 1550×170 | 61 | .24 | .28 | .28 | .31 |
| VERTEX 3MA 1550×190 | 61 | .28 | .31 | .31 | .35 |
| Model | Working Length (in) | Prebend ×1.5 Ø (in) | Prebend ×5 Ø (in) | Bend ×1.5 Ø (in) | Bend ×5 Ø (in) |
|---|---|---|---|---|---|
| VERTEX 3MA 2050×130 | 81 | 14 ga. | 11 ga. | 11 ga. | 9 ga. |
| VERTEX 3MA 2050×150 | 81 | 11 ga. | 9 ga. | 9 ga. | .20 |
| VERTEX 3MA 2050×170 | 81 | 9 ga. | .20 | .20 | .24 |
| VERTEX 3MA 2050×190 | 81 | .20 | .24 | .24 | .28 |
| VERTEX 3MA 2050×220 | 81 | .24 | .28 | .28 | .31 |
| Model | Working Length (in) | Prebend ×1.5 Ø (in) | Prebend ×5 Ø (in) | Bend ×1.5 Ø (in) | Bend ×5 Ø (in) |
|---|---|---|---|---|---|
| VERTEX 3MA 2550×150 | 100 | 14 ga. | 11 ga. | 11 ga. | 9 ga. |
| VERTEX 3MA 2550×180 | 100 | 11 ga. | 9 ga. | 9 ga. | .20 |
| VERTEX 3MA 2550×190 | 100 | 9 ga. | .20 | .20 | .24 |
| VERTEX 3MA 2550×220 | 100 | .20 | .24 | .24 | .28 |
| Model | Working Length (in) | Prebend ×1.5 Ø (in) | Prebend ×5 Ø (in) | Bend ×1.5 Ø (in) | Bend ×5 Ø (in) |
|---|---|---|---|---|---|
| VERTEX 3MA 3050×160 | 120 | 16 ga. | 14 ga. | 14 ga. | 11 ga. |
| VERTEX 3MA 3050×190 | 120 | 14 ga. | 11 ga. | 11 ga. | 9 ga. |
| VERTEX 3MA 3050×200 | 120 | 11 ga. | 9 ga. | 9 ga. | .20 |
| VERTEX 3MA 3050×220 | 120 | 9 ga. | .20 | .20 | .24 |
* Specifications based on steel with a yield point of 34,000 PSI. ROLLTEK reserves the right to change specifications without prior notice. Ratings are model-specific. The 3H columns are pre-bending ratings; the 3MA separates pre-bending from bending at the stated diameter conditions. The 3HX and 3MB tables do not provide separate pre-bending ratings. Confirm actual thickness and material grade rather than treating gauge and inch entries as interchangeable.
Standard Features
- Welded frames
- All models are planet reducer driven
- SAE 1050 quality certificated steel rolls with high tensile strength
- Steel welded main frames
- Mechanical manual openable drop-end
- Mobile control panel

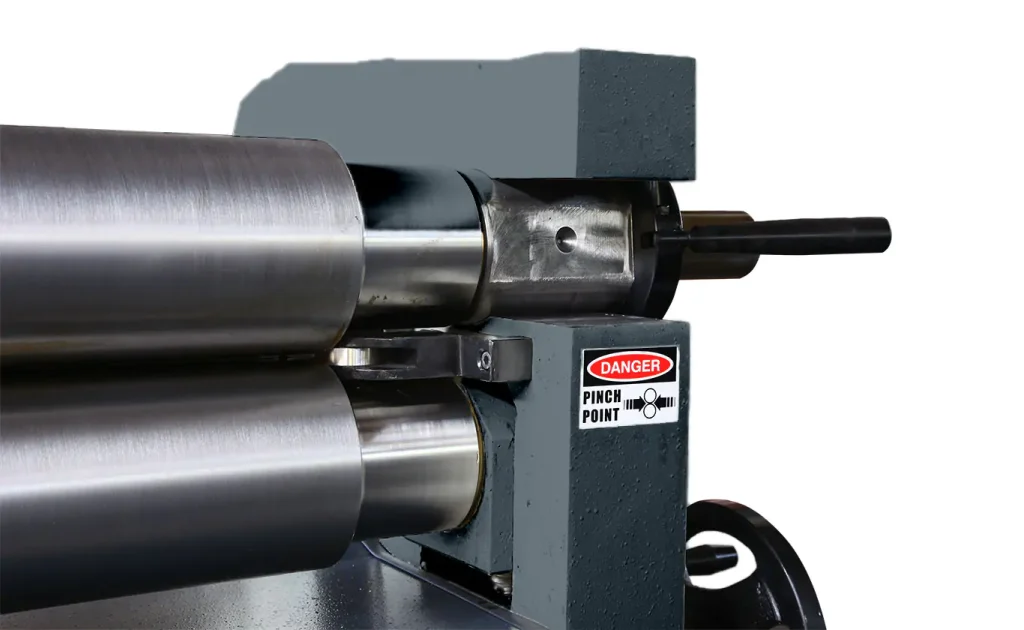

- Conical bending device
- Central lubrication system
- Top roll support system with planetary reducer
- Precision bending with brake motor
- Motorised adjustment of back roll
- CSA + UL Certified
- User manual
Optional Features
- Digital read-out for back roll
- Induction hardened rolls

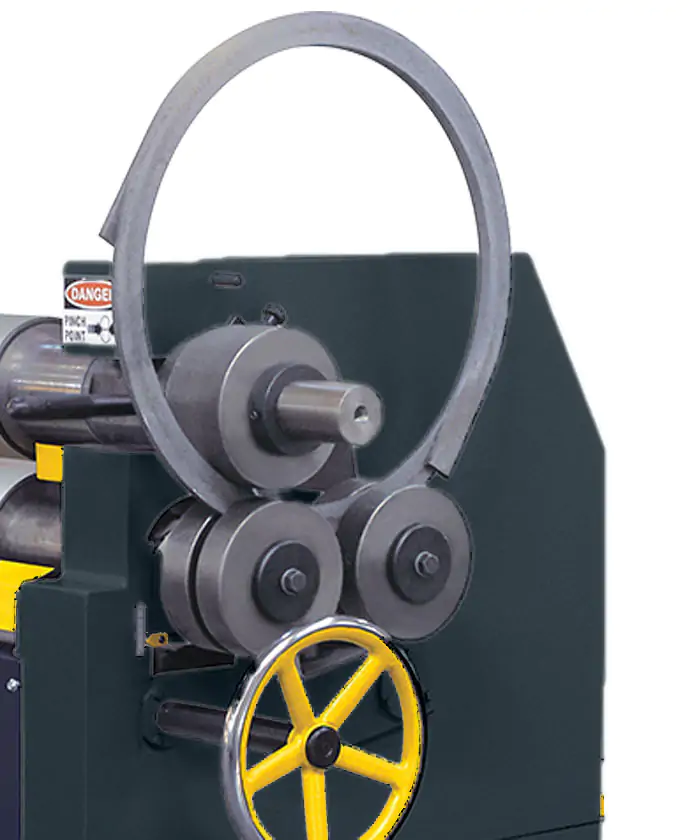

- Extended roll shafts for profile and pipe bending
- Profile and section bending roll set
- Motorized bottom roll
- Plastic coated top roll for Alucobond/Composite sheet bending
- Variable rotation speed control — stepless
- NC Control

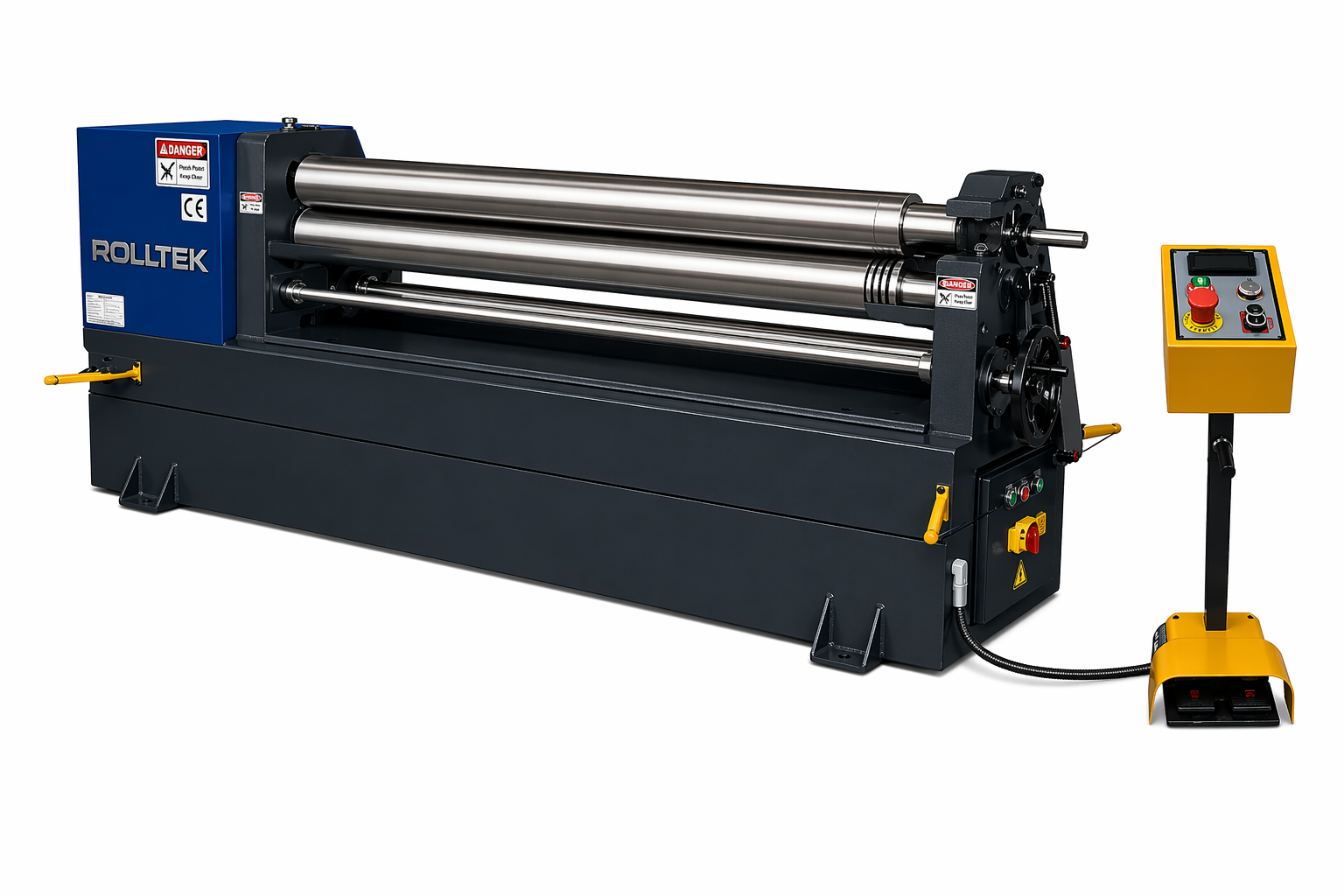

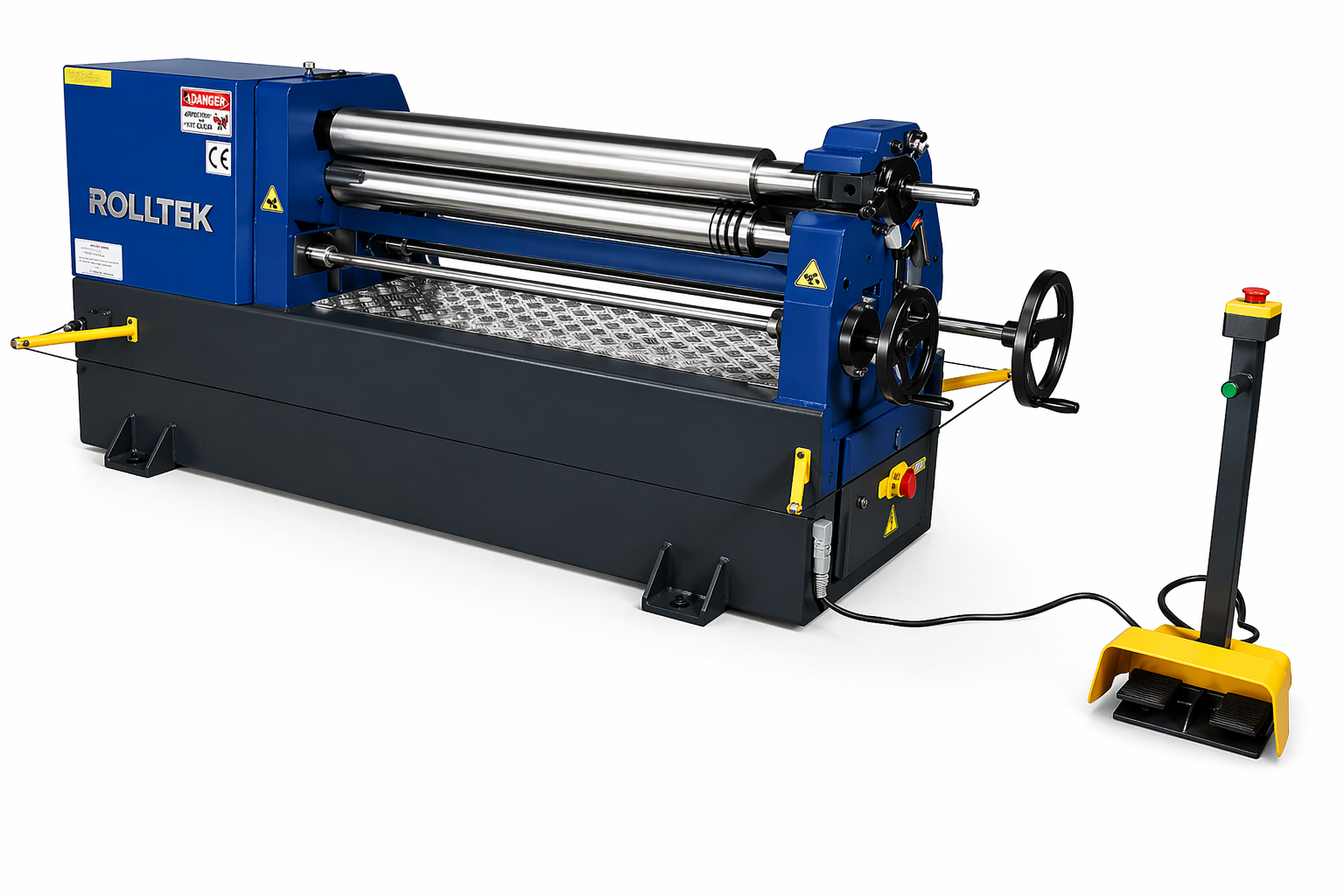

VERTEX 3MB
Enhanced frame rigidity with ductile iron castings and two-roll gearbox drive. Wire grooves standard for rod bending. The lowest entry price in the VERTEX family with dual CSA + UL certification. Model 2550×140 includes powered back roll as standard.
| Model | Working Length (in) | Bending (ga.) | Bending (in) | Roll Diameters Ø (in) |
|---|---|---|---|---|
| VERTEX 3MB 1050×110 | 41 | 9 ga. | .16 | 4.33 |
| VERTEX 3MB 1050×130 | 41 | 9 ga. | .20 | 5.12 |
| Model | Working Length (in) | Bending (ga.) | Bending (in) | Roll Diameters Ø (in) |
|---|---|---|---|---|
| VERTEX 3MB 1250×120 | 50 | 9 ga. | .20 | 4.72 |
| VERTEX 3MB 1270×140 | 50 | 9 ga. | .20 | 5.51 |
| Model | Working Length (in) | Bending (ga.) | Bending (in) | Roll Diameters Ø (in) |
|---|---|---|---|---|
| VERTEX 3MB 1550×110 | 61 | 11 ga. | .16 | 4.33 |
| VERTEX 3MB 1550×140 | 61 | 11 ga. | .20 | 5.51 |
| Model | Working Length (in) | Bending (ga.) | Bending (in) | Roll Diameters Ø (in) |
|---|---|---|---|---|
| VERTEX 3MB 2050×110 | 81 | 9 ga. | .16 | 4.33 |
| VERTEX 3MB 2050×130 | 81 | 9 ga. | .20 | 5.12 |
| VERTEX 3MB 2050×140 | 81 | 9 ga. | .16 | 5.51 |
| Model | Working Length (in) | Bending (ga.) | Bending (in) | Roll Diameters Ø (in) |
|---|---|---|---|---|
| VERTEX 3MB 2550×140 | 100 | 12 ga. | .10 | 5.51 |
* Specifications based on steel with a yield point of 34,000 PSI. ROLLTEK reserves the right to change specifications without prior notice. Ratings are model-specific. The 3H columns are pre-bending ratings; the 3MA separates pre-bending from bending at the stated diameter conditions. The 3HX and 3MB tables do not provide separate pre-bending ratings. Confirm actual thickness and material grade rather than treating gauge and inch entries as interchangeable.
Standard Features
- Two rolls powered by a single gearbox and gear system for top and bottom rolls
- SAE 1050 quality certificated steel rolls with high tensile strength
- Ductile iron cast main frames
- Mobile control panel by foot pedal
- Conical bending device
- Manual drop-end
- Top roll support system with bearing

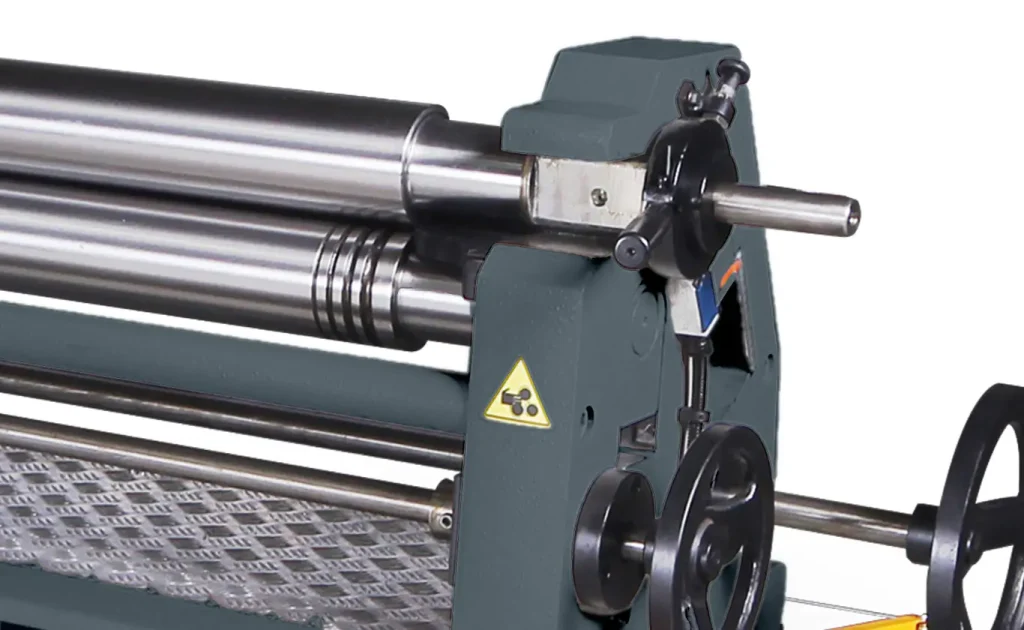

- Wire grooves at the end of the rolls
- Precision bending with brake motor
- Model VERTEX 3MB 2550×140 includes powered back roll as standard
- CSA + UL Certified
- User manual
Optional Features
- Powered back roll adjustment
- Digital readout for rear roll
- Induction hardened rolls
- Adjustable stepless speed
VERTEX Model Comparison
Full specification comparison across all four VERTEX tiers.
| Feature | VERTEX 3H | VERTEX 3HX | VERTEX 3MA | VERTEX 3MB |
|---|---|---|---|---|
| Drive Type | Full Hydraulic | Mech + Hyd Rear | Planet Reducer | Gearbox |
| Frame | Welded Steel | Cast Iron | Welded Steel | Ductile Iron Cast |
| Roll Grade | 1050 Forged + Hardened | 1050 Induction-Hardened | 1050 Certificated | 1050 Certificated |
| Listed Models | 33 | 3 | 21 | 10 |
| Working Length Range | 25.6″–120.1″ | 50″–81″ | 41″–120″ | 41″–100″ |
| Pre-bending | ✓ Standard | – | ✓ Standard | – |
| Conical Bending | ✓ Standard | ✓ Joystick | ✓ Standard | ✓ Standard |
| Drop-end | Hydraulic | Manual | Manual | Manual |
| Digital Read-outs | ✓ 2× Standard | ✓ Standard | Optional | Optional |
| Hydraulic Roll Adjust | ✓ Side + Bottom | ✓ Rear Only | Motorised | – |
| NC Control | Optional | – | Optional | – |
| Wire Grooves | Optional | ✓ Standard | Optional | ✓ Standard |
| Central Lubrication | – | – | ✓ Standard | – |
| Foot Pedal | – | ✓ Standard | – | ✓ Standard |
| Certification | CSA + UL | CSA + UL | CSA + UL | CSA + UL |
| Profile/Pipe Bending | – | – | Optional Roll Set | – |
| Alucobond/Composite | – | – | Optional Coated Roll | – |
| Ideal Shop Size | Large / Production | Mid-size | Small–Large / Versatile | Small–Mid / Economy |
Why Choose a 3-Roll Initial Pinch?
Compare the quoted machine, handling equipment, setup time, and finished-part requirements for your work mix.
- 67+
- Models across four tiers — from 25.6″ to 120.1″ working length
- .47″
- 3H 1550×250 listed pre-bending at 61″ width, ×5 ØTop Roll; 34,000 PSI yield steel
- CSA
- All VERTEX models are CSA + UL dual certified for North American and international compliance
- 4 Tiers
- Hydraulic, Hybrid, Mechanical A, Mechanical B — every budget covered
Built into Every VERTEX
Core technologies shared across the VERTEX platform.
SAE 1050 Steel Rolls
All VERTEX models use SAE 1050 certificated steel rolls — forged, induction-hardened, or certificated depending on tier. High tensile strength for consistent surface quality.
Conical Bending
Conical bending equipment is listed across the tiers. Confirm cone angle, material, minimum diameter, supports, and the selected model configuration; cylindrical capacity ratings do not establish cone capacity.
Brake Motor Precision
Brake motors assist controlled stopping. Repeatability still depends on setup, springback, operator practice, material consistency, and inspection of the finished part.
Mobile Control Panel
Every VERTEX includes a mobile control panel — repositionable for optimal operator visibility during setup and rolling cycles.
Drop-End Mechanism
Drop-end mechanisms assist cylinder removal. The 3H uses a hydraulic drop-end; 3HX, 3MA, and 3MB use manual mechanisms. Measure the complete loading, rolling, unloading, and inspection cycle for a throughput comparison.
Certified & Documented
All VERTEX models carry dual CSA + UL certification with full user manuals. Compliant for Canadian shops and international markets.
Where VERTEX 3-Roll Plate Rolls Are at Work
Versatile initial pinch rolling for fabrication shops of every size.
HVAC & Ductwork
VERTEX 3MA and 3MB models handle light-gauge sheet for round duct, spiral fittings, and HVAC housings. CSA + UL certification meets Canadian building code requirements for manufactured components.
Structural Fabrication
Rolled plate for columns, curved panels, and architectural metalwork. Select capacity by working width, material yield strength, target diameter, and required end preparation. Beam or profile bending requires suitable equipment and tooling.
Tank & Vessel Work
Tank and vessel shell applications require a job-specific capacity check. The 3H and 3MA tables list pre-bending ratings; remaining end flats, roundness, edge alignment, and weld fit-up require verification on the actual part.
Wire & Rod Bending
The VERTEX 3HX and 3MB include wire grooves on rolls as standard — ready for wire, rod, and small-diameter round stock bending without additional tooling.
Composite & Specialty Materials
The VERTEX 3MA offers an optional plastic-coated top roll for Alucobond and composite panel bending — the only VERTEX model with this capability. Extended roll shafts available for profile and pipe bending.
Not Sure Which VERTEX Fits?
The VERTEX series covers 67+ models across four tiers. Request a quote and our application engineers will recommend the right model for your shop.
Plan your plate rolling job
Ready to choose your VERTEX?
Tell us your material thickness, working width, and production needs. We’ll recommend the right VERTEX tier for your shop.
