Han’s Laser · F1 Series

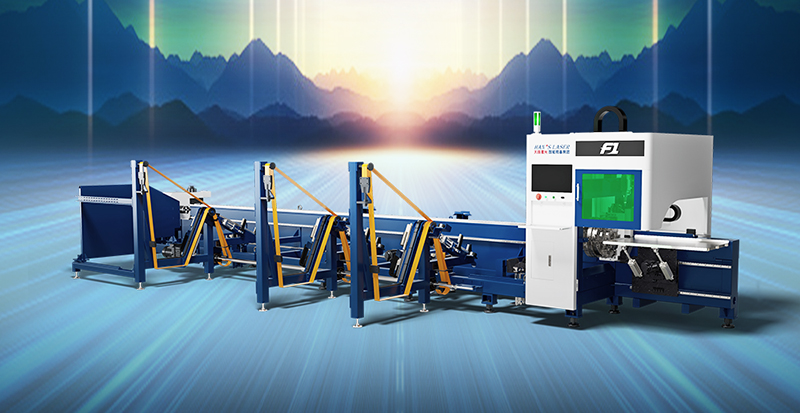

F1 High Speed
Fiber Laser Tube Cutter
Φ10–120mm · 2.0G Acceleration · 150 m/min
F1 Series
High Speed
Small-Diameter Tube
Han’s Laser · F1 Series
Φ10–120mm · 2.0G Acceleration · 150 m/min

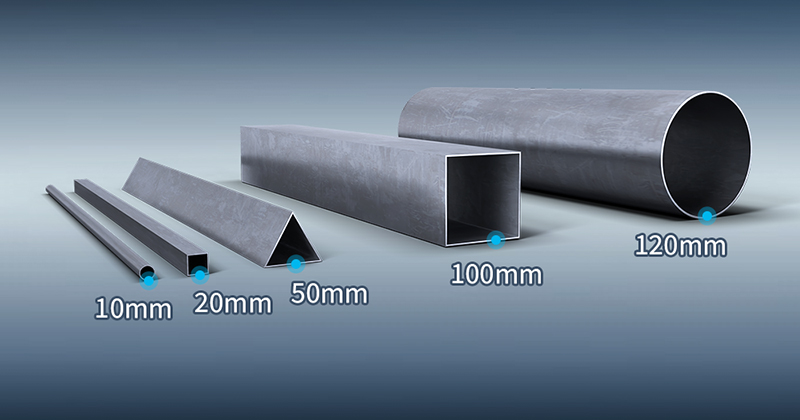

The F1 is Han’s Laser’s answer to modern mass-production demands for small-diameter tube cutting. Built for furniture, fitness equipment, and automotive sectors, it handles round tubes from Φ10mm to Φ120mm and square tubes from 10mm to 100mm with a maximum acceleration of 2.0G and rapid traverse speed of 150 m/min — a new standard for high-speed tube processing.
Overview
Five breakthrough technologies combine to set a new speed benchmark for small-diameter tube cutting in high-volume production environments.

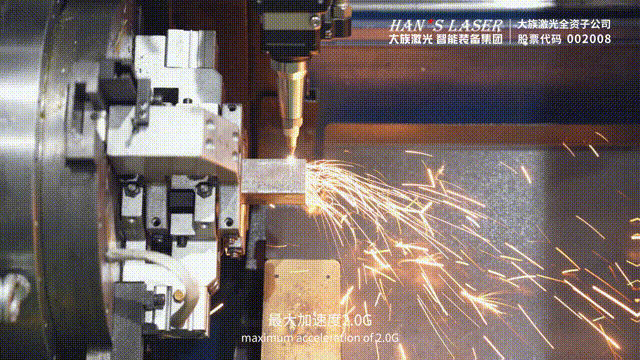

The F1 achieves a maximum acceleration of 2.0G with a rapid traverse speed of 150 m/min and chuck rotation speed of 150 r/min. Advanced leapfrog (frog jump) cutting, fly cutting, non-lift fly cutting, and cyclone cutting modes maximize throughput on small-diameter tubes for demanding production schedules.

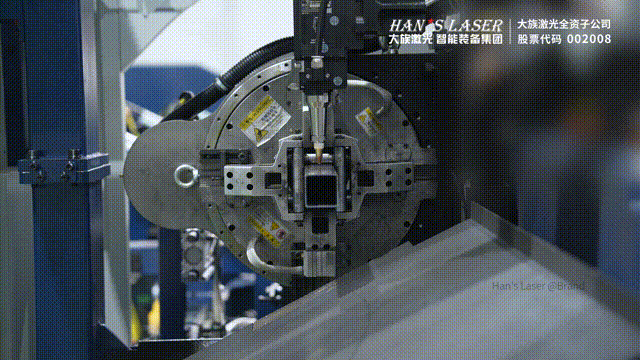

The integrated automated loading system delivers a new tube to the cutting position in just 20 seconds. Automatic switching between pneumatic and optional servo overtravel configurations adapts to varying tube lengths and diameters without manual intervention, enabling true lights-out production for small-tube operations.

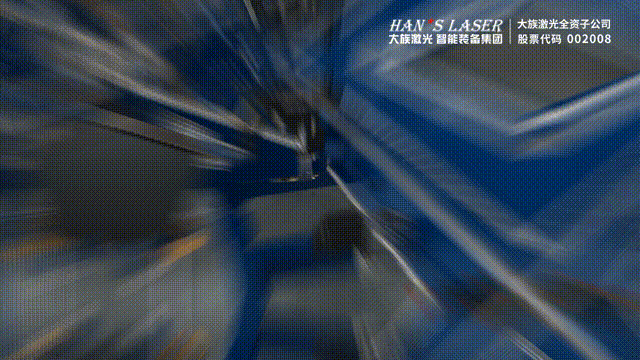

A servo-assisted dual support system prevents tube sagging and vibration throughout the cut zone. The synchronized auxiliary supports maintain consistent contact with the tube, ensuring dimensional accuracy and surface quality on even the thinnest small-diameter profiles at maximum cutting speed.

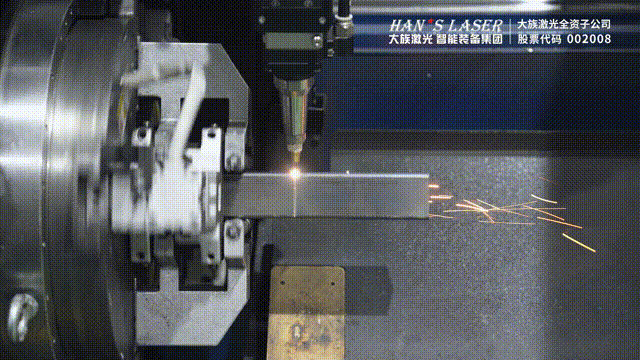

Optimized clamping geometry and intelligent cut sequencing minimize the remnant tail length on each tube — directly reducing material waste per part. In high-volume small-tube production, even a few millimetres saved per cut translates to significant raw material cost reductions over time.

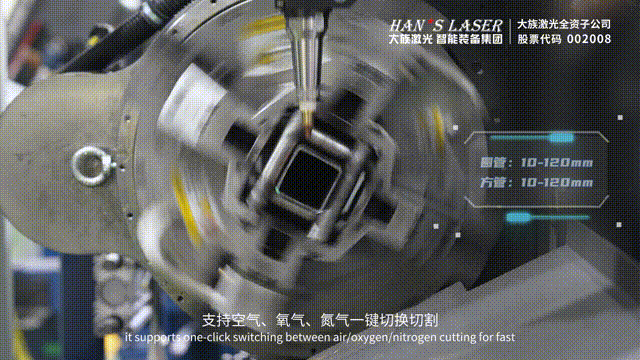

One-click switching between air, oxygen, and nitrogen cutting gases with edge detection and single-side compensation handles complex profiles and notched geometries. Whether it's bevel cuts, compound angles, or intricate slot patterns, the F1 executes with consistent accuracy at high speed.
Applications
Guardrails, hardware furniture, office equipment, fitness, automotive, kitchen & bathroom, and more.

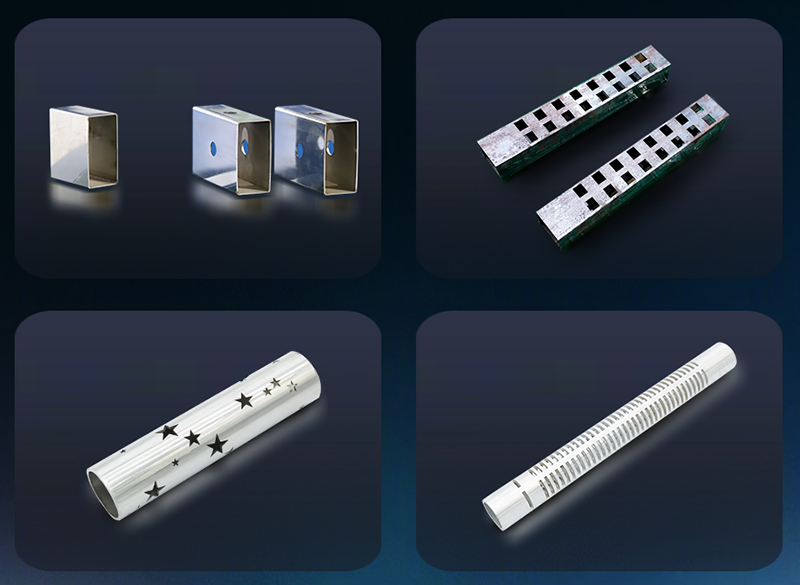

Cutting Samples
Technical Data
For reference only — all data subject to actual technical documents.
| Specification | F1 Series |
|---|---|
| Tube Diameter — Round | Φ10 – 120 mm |
| Tube Size — Square / Rect | 10 – 100 mm |
| Max. Acceleration | 2.0 G |
| Rapid Traverse Speed | 150 m/min |
| Chuck Rotation Speed | 150 r/min |
| Auto-Load Cycle Time | 20 secondsPer tube |
| Cutting Gas | Air / Oxygen / Nitrogen (One-Click Switch) |
| Support System | Servo-Assisted Dual Auxiliary Support |
| Cutting Modes | Leapfrog / Fly Cut / Non-Lift Fly / Cyclone |
| Advanced Features | Edge Detection · Single-Side Compensation |
| Profile Types | Round · Square · Rectangular · Special |
Material Compatibility
Process Overview
Automated loading system delivers tube to cutting position in 20 seconds.
Clamping chuck centers the tube. Dual servo supports engage to prevent sag.
150 m/min traverse, 2.0G acceleration. Leapfrog and fly-cut modes for max throughput.
Finished parts collected. Minimal tail waste. Ready for next tube automatically.
Target Industries
Package Contents
Available in Canada
RiseTek Machinery — authorized Canadian Han’s Laser distributor, Mississauga, Ontario.
