PD Series Precision Fiber Laser Tube Cutting Machine | Han’s Laser | RiseTek Machinery Canada
Available in CanadaContact RiseTek for pricing & lead time
Φ20–180mmUp to 260 kg12.2m Length120 m/min4-Claw Pneumatic1–4kW CustomizableCSA Certified

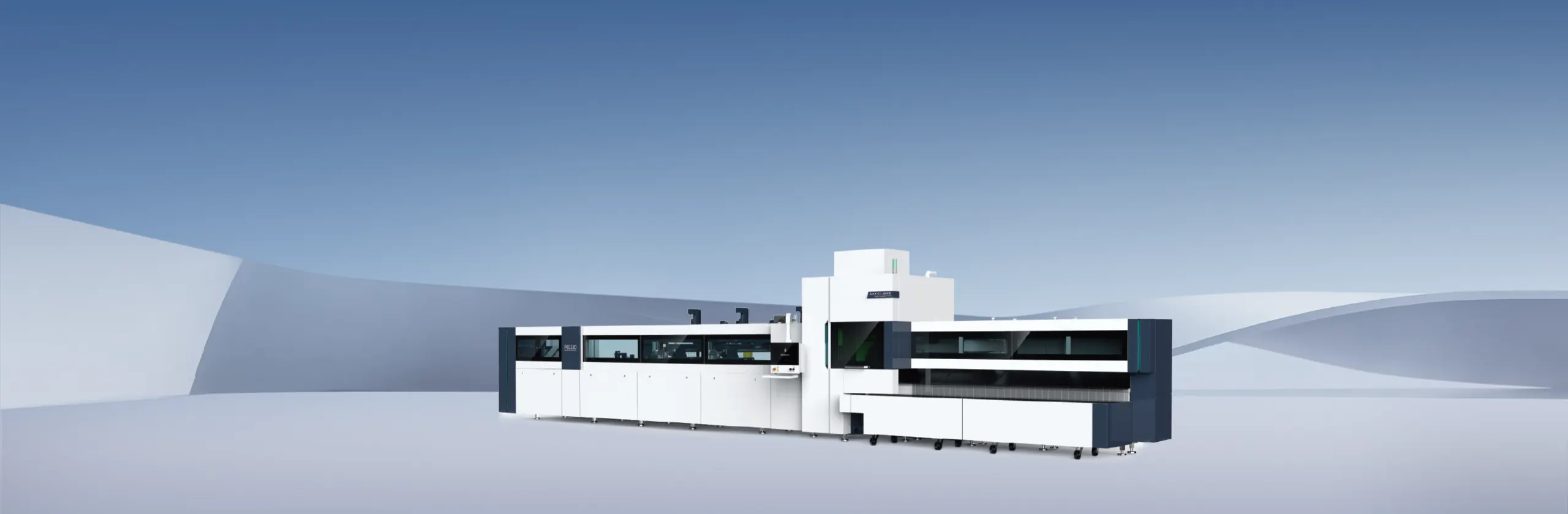

The PD Series is Han’s Laser’s precision fiber laser tube cutting platform — engineered for small and medium tube and pipe processing from Φ20mm to Φ180mm, up to 260kg, with material lengths to 12,200mm. Modular design with pneumatic 4-claw self-centering chucks, mechanical transmission for stable 24-hour continuous production, floating servo support, and customizable laser power from 1kW to 4kW.

Select Model

View Specs ↓
Request a QuoteDownload Spec Sheet
🇨🇦 Canadian Support
✅ CSA Certified
🔧 On-site Installation
🎓 Training Included

Overview

Modular Design.
Flexible Combination.

Pneumatic 4-claw self-centering chucks, mechanical transmission with internal oil circuit, floating servo support, and adjustable console — every component built for precision and 24/7 reliability.

Fully Enclosed Dustproof Claw

Pneumatic clamping with four-claw roller and self-centering function. Plate-welded structure — annealed, rough machined, vibration aged, and precision finished for excellent rigidity and dynamic performance.

Mechanical Transmission Chuck

Fool-proof design with internal oil circuit circulation. Wired transmission safety testing device ensures reliable, low-risk operation and long-term stability.

Clamping System

High safety when gas is cut off. Mechanical transmission with high safety factor for stable 24-hour production. Digital monitoring provides real-time pipe size identification.

Rear Chuck

Exhaust structure with excellent sealing. Front and rear exhausters remove high-temperature gas, eliminating thermal deformation and cutting dust.

Floating Support

X-axis gear-and-rack transmission with linear guide rail. Servo auxiliary support floats to prevent pipe sagging and improve processing accuracy.

Adjustable Console

Real-time height adjustment with multi-angle rotation for convenient observation across multi-shift production.

Optional

Choose your feeding configuration.

Semi Automatic Feeding

Place pipes on the material rack — the system auto-feeds to clamping position. Photoelectric detection ensures accurate clamping.

Full Automatic Feeding

Fully automatic loading from bundled silo for true lights-out production. Pipe length detection ensures accurate clamping.

Cutting Samples

Precision results on every profile.

Technical Data

PD Series · Four Models

For reference only — all data subject to actual technical documents.

SpecificationP6010DP6018DP8018DP10018D
Laser Source Power1000W / 2000W / 3000W / 4000W (Customizable)
Max. Machining RangeΦ20–110mmΦ20–180mmΦ20–180mmΦ20–180mm
Max. Material Length6,200mm(6m)6,200mm(6m)8,200mm(8m)12,200mm(12m)
Max. Speed (A,B Axis)120 r/min (Optional: 150 r/min)
X/Y Rapid Traverse120 m/min
Max. Load Capacity260 kg
Chuck SystemPneumatic 4-Claw Self-Centering · Front + Rear
Profile TypesRound · Square · Rectangular · Oval · Special

Full data sheet available upon request

Material Compatibility

Cuts every small-medium tube profile.

Carbon Steel
Round, square, oval
Stainless Steel
Precision grade
Aluminum Alloy
All tempers
Special Profiles
Angle, channel, custom

Process Overview

From raw tube to finished part.

01
Tube Loading

Pipes loaded onto material rack. Photoelectric detection ensures accurate clamping.

02
4-Claw Self-Centering

Pneumatic rollers grasp and clamp with self-centering linkage. Floating servo support engages.

03
Fiber Laser Cutting

120 m/min rapid traverse. Exhausters remove cutting gas and dust.

04
Part Unloading

Cut workpieces slide onto finished frame. 24-hour continuous production.

Applications

Engineered for your industry.

🪑
Furniture & Office
Chair frames, desk legs, shelving, decorative tube.
🏋️
Fitness Equipment
Gym frames, bike tubing, weight bench structures.
🚗
Automotive
Exhaust, seat frames, chassis components.
🏠
HVAC
Ductwork, fittings, mechanical tubing.
⚙️
Hardware
Handles, fittings, hinges, assemblies.
🚲
Bicycle & Mobility
Bicycle frames, scooter components.
🌱
Agriculture
Greenhouse structures, irrigation pipe.
🏗️
Construction
Handrails, scaffolding, fence tubing.

Package Contents

Everything you need to start cutting tube.

🏭
PD Series Machine
Complete machine, assembled and factory tested.
💻
Han’s CNC Software
Tube nesting, 3D simulation, parameter library.
🔧
On-site Installation
Installation, commissioning, calibration.
🎓
Operator Training
Training by certified RiseTek technicians.
📋
Documentation
Manuals, maintenance schedules, diagrams.
🇨🇦
Canadian Support
Local parts, on-site service, tech assistance.

Available in Canada

Local support.
Canadian service.

RiseTek Machinery — authorized Canadian Han’s Laser distributor, Mississauga, Ontario.

🇨🇦
Authorized Distributor
Factory-level support, genuine parts, certified technicians.
✅
CSA Certification
Meets CSA electrical safety standards for Canadian workplaces.
🔧
Local Parts & Service
Canadian parts inventory for fast turnaround on repairs.

Common Questions

PD Series — FAQ

Φ20–180mm (P6018D/P8018D/P10018D) or Φ20–110mm (P6010D). Max 260 kg. Lengths 6m–12.2m.
1kW, 2kW, 3kW, or 4kW fiber laser sources, customizable to your application.
Semi-auto: operator places pipes, machine auto-feeds. Full-auto: draws from bundled silo for lights-out production.
Pneumatic four-claw rollers with self-centering linkage auto-center on varying diameters. Dustproof enclosed design.
Yes — engineered for continuous 24-hour production with high safety factor mechanical transmission.
On-site installation, training, Han’s Laser warranty, Canadian parts inventory, CSA-compliant.
