Han’s Laser · Authorized Canadian Distributor
Fully integrated automated loading, unloading, sorting, and FMS-controlled production for your fiber laser cutting line. SL, SLU, and ALU Series — engineered by Han’s Laser, supported across Canada by RiseTek Machinery.
Machinery by Han’s Laser Smart Equipment Group · ISO 9001 & ISO 14001 Certified · Since 1996
Automation Overview
Fiber laser automation devices replace manual sheet handling with intelligent, continuous material flow — connecting your storage warehouse, laser cutter, and finished-part sorting into one self-running production cell.
Operating a high-power fiber laser cutter without automation means your machine is idle every time an operator loads a sheet, unloads finished parts, or sorts scrap. For most fabricators, that’s 30–50% of their available cutting hours lost to handling.
Han’s Laser fiber laser automation systems eliminate that loss. The SL Series introduces semi-automatic loading with vacuum suction cups and automated raw-material trucks. The SLU Series adds full automated loading and unloading with comb-fork sorting, dual-layer carts, and PLC-controlled material flow. The ALU Series goes further — adding multi-level storage towers, robotic loading and unloading, and the optional HansAPC-FMS 4.0 flexible management control system to deliver true lights-out, “unmanned” production.
Every system is engineered to integrate directly with Han’s Laser fiber laser sheet cutters — from the entry-level MINI S to the high-power HF Expert and HF Series — so your investment in automation amplifies the cutting machine you already plan to run.
Han’s Laser · Fiber Laser Automation Series
From semi-automatic single-machine loading to fully unmanned multi-cell production lines — three platforms for three stages of factory automation.
Semi-Auto Loading Unit · Integrated CNC System for Efficient Production
The SL Series semi-automatic loading unit integrates loading and unloading controls, automated feeding, CNC cutting, and material handling into a single workflow. It supports sheet metal up to 40mm thick and links a vacuum loading system with the production CNC for seamless task scheduling, material transfer, and machining — boosting efficiency while keeping operation user-friendly and capital cost low.
High-Efficiency Automated Loading and Unloading System
The SLU Series delivers fully automated pick-up, loading, processing, and unloading in one continuous cycle — designed for high productivity, low operational cost, and user-friendly control. Built around a C-shaped bracket assembly line, an integrated loading/unloading device, and dual electronic carts, it eliminates manual sheet handling and connects directly to your fiber laser cutter via PLC-controlled scheduling.
Laser Automation Solution · “Unmanned” Production · Modular 1→N Expansion

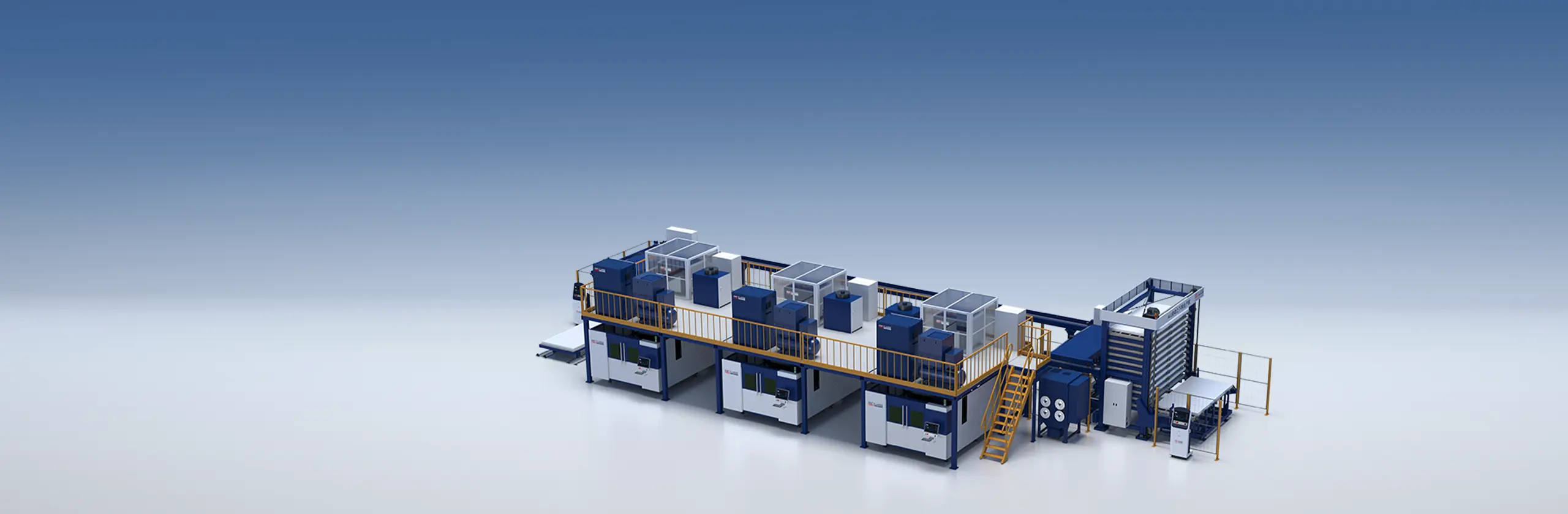

The ALU Series Laser Automation Solution is Han’s Laser’s flagship lights-out production platform — engineered for maximum “unmanned” output and minimum operator headcount. A multi-level storage tower (10/15/20/30/40 spaces, customizable), independent loading and unloading robots, and electric double-layer exchangeable carts feed your fiber laser cutter continuously. The full system is orchestrated by an FMS smart control system with self-diagnosis and modular expansion interfaces for one-drag-two, one-drag-three, and beyond.
Side by Side
Inside the ALU Series
Every ALU Series automation cell is built from purpose-engineered sub-systems that work together as one — from raw sheet storage to finished-part handoff.
Integration with Fiber Laser Machines
Han’s Laser automation devices are engineered to integrate natively with the full Han’s Laser fiber laser cutting lineup — sharing the same CNC architecture, communication bus, and FMS control framework. Whether you run a single MINI S or a fleet of HF Expert and HF Series cutters, the SL, SLU, and ALU systems plug in cleanly.
Technical Data — SL Series
For reference only. All data subject to actual technical documents.
| Specification | SL-3015 | SL-4020 |
|---|---|---|
| SL Series | Semi-Automatic Loading Unit · Han’s Laser | |
| Max. Loading Format | 3000 × 1500 × 40 mm | 4000 × 2000 × 40 mm |
| Loading Speed | 60 m/min | 60 m/min |
| Hoist Speed | 8 m/min | 8 m/min |
| Sorting Cart Load | 4 T | 4 T |
| Sorting Cart Speed | 20 m/min | 20 m/min |
| Max. Carry-on Weight | 1,400 kg | 2,500 kg |
Technical Data — SLU Series
For reference only. All data subject to actual technical documents.
| Specification | SLU Series | |
|---|---|---|
| SLU Series | Full Automatic Loading & Unloading System · Han’s Laser | |
| Floor Space (L × W × H) | 18.5 m × 5.6 m × 4 m | |
| Max. Travelling Speed | 40 m/min | |
| Max. Positioning Speed | 8 m/min | |
| Max. Loaded Sheet Size | 3000 × 1500 × 5 mm | |
| Max. Unloaded Sheet Size | 3000 × 1500 × 5 mm | |
| Control System | PLC Control System · ProfiNet Bus | |
| Max. Suction Weight | 180 kg | |
| Number of Electronic Carts | 2 | |
| Cart Bearing Capacity | 4 T each | |
| Cart Horizontal Speed | 20 m/min | |
| Power Supply | 380 V · 50 Hz · 3-Phase | |
Technical Data — ALU Series
For reference only. All data subject to actual technical documents.
| Specification | ALU3015-B | ALU4020-B |
|---|---|---|
| ALU Series | Laser Automation Solution · “Unmanned” Production · Han’s Laser | |
| Max. Sheet Metal Size | ≤ 3000 × 1500 × 20 mm | ≤ 4000 × 2000 × 16 mm |
| Max. Load Per Layer | 3 T | 3 T |
| Max. Height Per Layer | 50–90 mm | 50–90 mm |
| Max. Lifting Speed | 12 m/min | 12 m/min |
| Max. Transfer Speed | 15 m/min | 15 m/min |
| Max. Transfer Weight | 3 T | 3 T |
| Storage Rack Layers | 10 / 12 / 15 (based on factory height) | |
| Storage Spaces | 10 / 15 / 20 / 30 / 40 (customizable) | |
| Control System | FMS Smart Control · Optional HansAPC-FMS 4.0 | |
Why Han’s Laser Automation
Servo-controlled robotic loading and unloading with comb-fork unloading and vacuum suction loading — built for 24-hour continuous duty across millions of cycles.
HansAPC-FMS 4.0 dispatches tasks, schedules machines, monitors performance, and exchanges data with ERP, MES, WMS, and CAM systems — your laser cell becomes a data node.
Start with one laser cutter, scale to a multi-machine cell. Reserved interfaces support one-drag-two and one-drag-three configurations without rebuilding the system.
Layering sensors, thickness detection, weight verification, and over-limit alarms ensure only one sheet at a time enters the cutter — eliminating costly double-feed errors.
Distributed PLC control on ProfiNet bus with IEC-standard programming, anomaly monitoring, and built-in self-diagnostic functions — easier to maintain, faster to recover.
RiseTek Machinery handles Canadian sales, on-site installation, operator training, parts inventory, and aftermarket support — local expertise for your Han’s Laser automation cell.
Applications
Available in Canada
RiseTek Machinery is your authorized Canadian Han’s Laser distributor — based in Mississauga, Ontario, serving fabricators and manufacturers across Canada with local parts inventory, certified technicians, and full after-sale support for fiber laser automation systems.
Fiber laser automation devices are the difference between a laser cutter that runs on operator availability and a laser cutter that runs on demand. RiseTek Machinery supplies the full Han’s Laser automation lineup — SL, SLU, and ALU Series — across Canada, with on-site installation, CSA-compliant electrical, and a Canadian parts inventory. Whether you need semi-automatic loading on a single MINI S or a fully unmanned multi-cell production line built around HF Expert and HF Series cutters, every system is engineered to integrate natively with the laser cutter you already plan to run.
The most immediate gain from fiber laser automation comes from eliminating the manual handling between sheets. Vacuum-suction loading, comb-fork unloading, and dual-layer exchange carts mean your operator stops carrying material — and your laser stops waiting. For a typical 6 kW or 12 kW fiber laser cutter running 8 hours a day, automation can recover 30–50% of lost cutting time by removing operator-in-the-loop bottlenecks. The SLU Series and ALU Series both deliver fully automated load and unload; the SL Series provides a lower-cost entry point with semi-automated loading and a sorting truck for finished parts.
Modern automation isn’t just about moving sheets — it’s about scheduling them. Han’s Laser automation devices use a PLC distributed control system on ProfiNet bus, with the optional HansAPC-FMS 4.0 flexible management control system orchestrating dispatch order execution, dynamic task scheduling, and real-time data exchange with external ERP, MES, WMS, and CAM systems. The ALU Series ships with FMS as a core capability; the SLU Series supports FMS as an optional integration. This is the layer that turns your laser cell into a data node in the broader factory — the missing link between cutting capacity and production planning.
The ALU Series is engineered for true lights-out production — multi-level storage towers (10 to 40 customizable spaces), independent loading and unloading robots, and a reserved expansion interface that lets you scale from one laser cutter to a multi-machine cell. One automation system can drag two, three, or more cutting machines as your capacity grows, without rebuilding the cell from scratch. This matters for capital planning: your first automation investment is not a sunk cost — it’s the foundation for the next two.
Fiber laser automation devices are designed as a complete production-cell upgrade — not a standalone product. They pair directly with Han’s Laser fiber laser sheet cutting machines including HF Expert, HF S Smart, MINI S, HF Series, G-O Series, and HF 50. Tube laser platforms in the fiber laser tube cutting lineup (TX Series and PD Series) include semi-automatic and fully-automatic feeding options as part of the tube platform itself. RiseTek’s specification team will build the bill of materials around your shop, your sheet sizes, your throughput target, and your ERP environment — so you buy a working cell, not a list of parts.
RiseTek Machinery is the authorized Han’s Laser distributor for Canada, headquartered in Mississauga, Ontario. We deliver factory-level support without international shipping delays — Canadian parts inventory, certified technicians, CSA-compliant electrical, on-site installation, FMS commissioning, and operator training. Our service department supports the full Han’s Laser fiber laser automation lineup along with the sheet and tube cutting machines that pair with it. Whether you’re building your first automated cell or scaling to a fully unmanned production line, our team will help you specify the right SL, SLU, or ALU configuration and stand behind it for the life of the machine.
