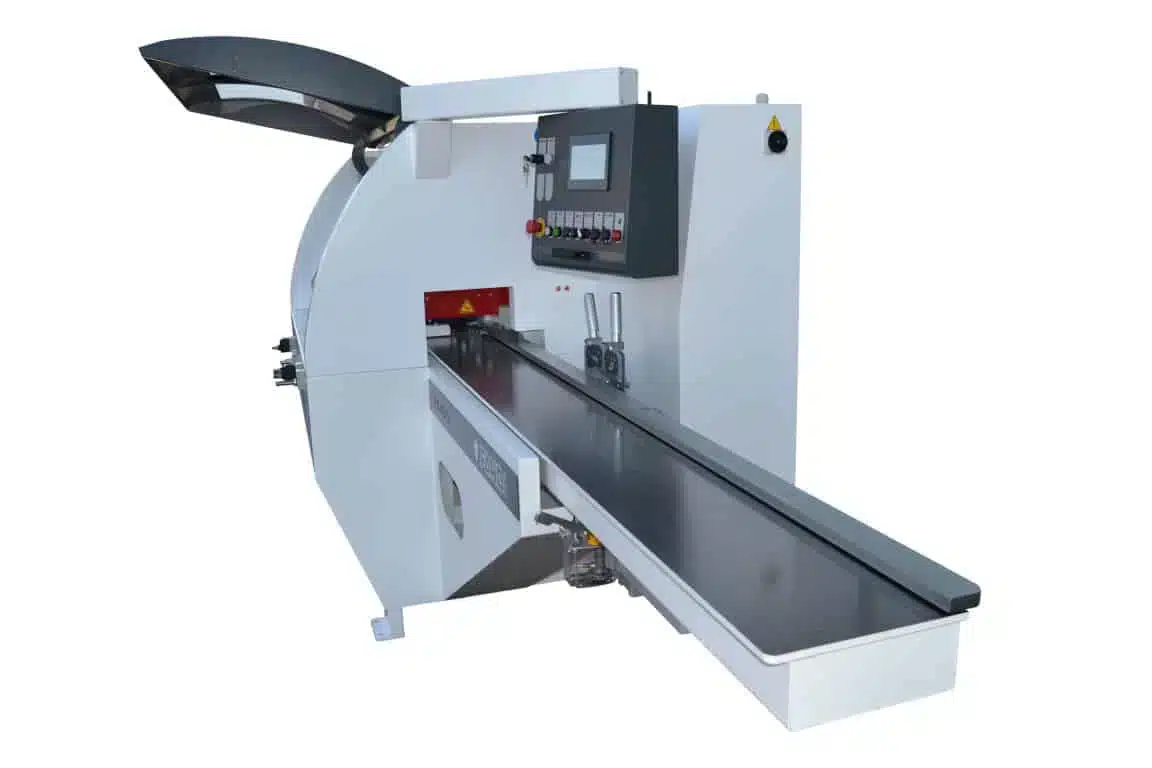

P 240/4 – 240/5 – 240/6 PLUS

P230/4 PLUSP240/5 PLUSP240/6 PLUS
Planer shaft motor power (1st group)HP 5.5HP 5.5HP 5.5
Motor power spindle moulder right (2nd group)HP 5.5HP 5.5HP 5.5
Spindle spindle motor power left (3rd group)HP 5.5HP 5.5HP 5.5
Motor power upper horizontal shaft (4th group)HP 7.5HP 7.5HP 7.5
Motor power lower horizontal shaft (5th group)//HP 5.5//
Motor power shaft 2° horizontal lower (6th group)////HP 5.5
Feed motor power HP 3HP 3HP 3
Crossbar lifting motor powerHP 1HP 1HP 1
Max. working width (with tool diameter. 125 mm)mm 240mm 240mm 240
Min working width (with tool diameter. 125 mm)mm 25mm 25mm 25
Maximum working height (with tool diameter 125 mm)mm 180mm 180mm 180
Min working height (with tool diameter 125 mm)mm 8mm 8mm 8
Min workpiece length (single workpiece)mm 460mm 590mm 500
Inverter feed speedm/1′ 4-30m/1′ 4-30m/1′ 4-30
Shaft rotation speedrpm 6000rpm 6000rpm 6000
Diameter of drive rollers (4 toothed and 2 rubberized)mm 130mm 130mm 130
Tool shaft diametermm 40mm 40mm 40
Planing tool dimensions (horizontal)mm 125 x 230mm 125 x 230mm 125 x 250
Tool dimensions (vertical)mm 125 x 230mm 125 x 230mm 125 x 180
Suction port diameter (nr. 4)mm 140mm 140mm 140
Tool diameter 1st groupmm 125mm 125mm 125
Min/max diameter of profile tools (excluding 1st group)110-200 mm110-200 mm110-200 mm
Under the worktop diam. max tools (on vertical shafts)mm 160mm 160mm 160
Max tool throat diametermm 160mm 160mm 160
CA MACHINE EQUIPMENT
  • Monobloc steel base suitably ribbed
  • Steel entry surface with milled tubular structure 2500 mm long
  • Hardox worktop HB 400
  • Transmission by poly-V belts on all tool shafts, guarantee maximum engine power output
  • Independent motor unit on each workgroup
  • Upper crossbar equipped with motorized vertical movement, with drive rollers and pressers adjustable at the same time as the upper shaft for greater speed and ease of set-up
  • Feed system by means of universal joints, double rear chain and speed variator with inverter
  • Upper towing supported by double column
  • Drag by means of 4 toothed rollers and upper rubber rollers at the exit
  • Air curtain on the work surface to facilitate the sliding of the workpiece
  • Left vertical shaft adjustable at the same time as the pressure group and output guide, for greater speed and ease of set-up
  • Pre-straightening system on the right side by means of skim cutter (on request) mounted on planer spindle
  • 0.1 mm precision decimal reading of 3° – 4° – 5° – 6° shaft movements
  • Quick tool adjustment system on the 2nd – 3rd – 4th – 5th – 6th group
  • Possibility of mounting cutters on all shafts (except the 1st) up to a maximum diameter of 200 mm and a minimum diameter of 110 mm. With profile cutters with a diameter of 161 mm to 200 mm, the minimum diameter can vary from 110 mm to 160 mm
  • Axial adjustment of the right and left spindle moulder from 0mm to -90mm by means of controls located on the front of the machine
  • 35 mm 2nd shaft radial adjustment
  • 3rd group radial pressure adjustment with respect to the shaft of 35 mm (to compensate for diameter)
  • 4th shaft axial adjustment of 40 mm
  • Radial adjustment of the 4th shaft by 35 mm (for diameter compensation)
  • Max tool diameter: 200 mm above the worktop and 160 mm below the worktop
  • Pneumatic pre-planer roller with control panel exclusion
  • Pneumatic pressure on drive units
  • Manual lubrication of the worktable
  • Direct motor start with illuminated pushbuttons from the control panel
  • Soundproof protection cabin complete with safety microswitch
  • Control panel with magnetothermal protection
  • Padlockable main switch
  • Nr. 2 emergency buttons
  • Low-voltage auxiliary circuit
  • Service keys
  • Hood compartment light
  • Mobile console to facilitate the operator in the machine set-up and production cycle start-up

ACCESSORIES ON REQUEST

Tool set: n. 02 heads 190 x 125 x 40; n. 02 heads 250 x 125 x 40; n. 01 skim cutter 12 x 145 x 40 (disposable knives); n. 01 caliber knife register

Spiral tool set: n. 02 heads 190 x 125 x 40; n. 02 heads 270 x 125 x 40; n. 01 skim tiller 12 x 145 x 40

Brush head 270 x 125 x 40

Head 190 x 125 x 40

UL/CSA Regulatory

Difference Volts 220 and special voltages

Difference 60 hz

Automatic lubrication of the work table

Central lubrication of the guides by means of a manually operated pump

Centralized lubrication of the guides by means of a pump that can be operated from the electrical panel
Centralized lubrication of vertical spindle moulders – manual


Centralized lubrication of vertical spindle moulders – automatic

Automatic air and oil atomization

Additional drive shaft extension in front of the 3rd group, complete with 45 mm toothed roller

Additional pulling device for short workpieces (mounted in front of the spindle moulder on the right) with workpiece H > 35mm the minimum working width increases to 80mm (instead of 25mm): Minimum working length single piece: 490 mm; Minimum push working length: 300 mm

Additional 18 mm thick toothed roller

Additional 45 mm thick toothed roller

Additional 20 mm thick rubber roller

Additional 50 mm thick rubber roller

Motorized adjustment 3rd group (working width) complete with electric motor and buttons (opening/closing) and decimal adjustment by means of nr. 01 Electronic altitude display with bright LEDs

Electronic display with bright LEDs for measuring work at height

2-axis electronic control: automatic positioning management of the left vertical shaft (Y axis) and the upper horizontal shaft (Z axis). Automatic engine start-up including feeding. 7″ color touch monitor. Minimum working height 10mm. Axial adjustment of spindle moulder right and left 80mm instead of 90mm

3-axis electronic control: automatic engine start including advancement. 7″ color touch monitor. Minimum working height 10mm. Axial adjustment of spindle moulder right and left 80mm instead of 90mm

4-axis electronic control for the automatic positioning management of the vertical right shaft vertically (Z axis) and of the vertical left shaft vertically and horizontally (Z and Y axis) and of the upper horizontal shaft vertically (Z axis). Automatic engine start-up including feeding. 7″ color touch monitor. Minimum working height 10mm. Axial adjustment of spindle moulder right and left 80mm instead of 90mm

5-axis electronic control: automatic engine start including advancement. 7″ color touch monitor. Minimum working height 10mm. Axial adjustment of spindle moulder right and left 80mm instead of 90mm

Automatic device for searching the width of the piece obtained by automatic movement of the 3rd shaft; It offers the possibility of machining workpieces of different widths in succession. The system is moved by means of a ball screw that can be disengaged by control from the electrical panel

10″ color monitor for PLC

15″ color monitor for PLC

Automatic pre-planer override device when it enters the 1st drive roller

Variable speed drive with inverter kW 3

Skim coat cutter (disposable knives)

Pair of knife gauges

Split pneumatic pressure on the drive rollers

1st planer motor kW 5.5 (HP 7.5)
1st planer motor kW 7.5 (10 HP); Mandatory automatic delta star start

Spindle moulder motor right kW 5.5 (HP 7.5)

Spindle moulder motor right kW 7.5 (HP 10); Mandatory automatic star delta start

Spindle moulder motor left kW 5.5 (HP 7.5)

Spindle moulder motor left kW 7.5 (HP 10)

Upper horizontal motor kW 7.5 (10 HP); Mandatory automatic star delta start

Upper horizontal motor kW 9 (HP 12); Mandatory automatic star delta start

Motor 2° horizontal upper kW 5.5 (HP 7.5)

Motor 2nd horizontal upper kW 7.5 (HP 10); Mandatory automatic star delta start

2nd upper horizontal motor kW 9 (HP12); Mandatory automatic star delta start

Motor 2nd horizontal lower KW 5.5 (HP 7.5)

Motor 2nd horizontal lower KW 7.5 (HP 10); Mandatory automatic star delta start

Motor 2nd horizontal lower kW 9 (12 HP); Mandatory automatic star delta start

Automatic star-delta start for single tool motor Mandatory on 10 / 12 HP motors

Ring set consisting of rings of various thicknesses for a total length of 200 mm

Kit for minimum working width 15 mm with two 10 mm sprockets

Drag unit on the infeed table for insertion into the workpiece
