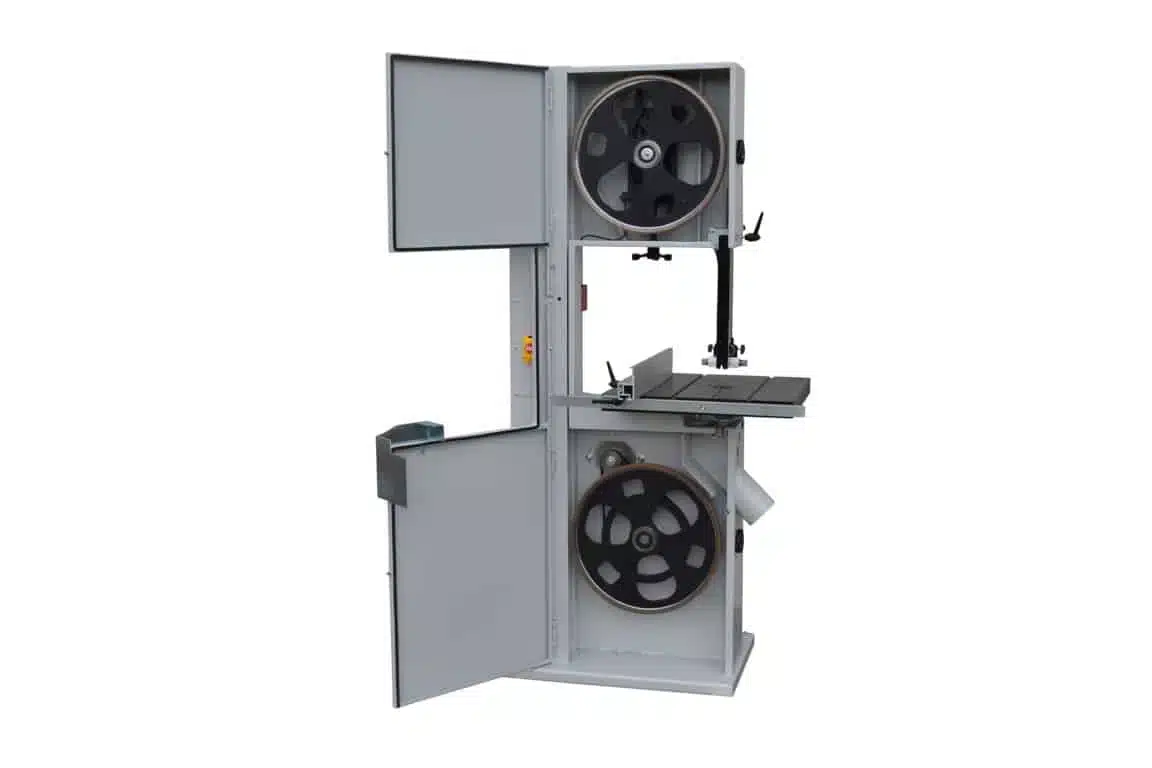

SC 800
| Cast iron flywheel diameter | mm 800 |
| Flywheel width | mm 40 |
| Cutting width | mm 785 |
| Max. cutting height | mm 500 |
| Belt length | mm 5550/5470 |
| Belt width | 10 mm ÷ 40 |
| Belt speed | m/sec 25 |
| Worktop dimensions | mm 1130×800 |
| Motor power | HP 5.5 |
| Machine weight | kg 620 |
STANDARD MACHINE EQUIPMENTCA MACHINE EQUIPMENT
- Blade sleeve complete with spacer rings as follows: nr.2 mm 50 / nr.4 mm 20 / nr.4 mm 15 / nr.4 mm 10 / nr.4 mm 5 / nr.4 mm 2 / nr.4 mm 1 / nr.4 mm 0.5 / nr.4 mm 0.3
- Automatic lubrication
- Band blade
- Adjustable upper blade guide with rack and pinion movement
- Manual star/delta start
- N° 2 suction ports Ø 120 mm
- Blade tension indicator
- Electrical system in accordance with standards
- Self-braking motor
- Tilting table from 0° ÷ 20°
- Protections in accordance with standards
ACCESSORIES ON REQUEST
7.5 HP motor
10 HP Motor
Replacement blade
Adjustable lower blade guide
Guide slots on the table and angle bracket
Double-supported rail
Mechanical foot brake (standard version)
Motor protection with micro-switches on the doors (standard version)
V230 Three-phase electrical system
Inverter for speed regulation
