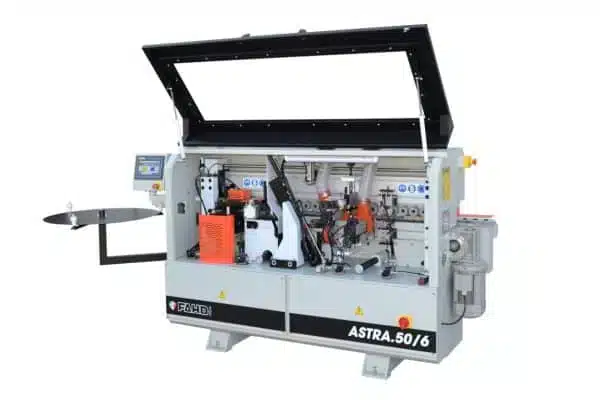

ASTRA.50/6
| Gluing unit | Trimming unit | Gleaning unit | |||
 |  |  | 1 FREE SPACE | 1 FREE SPACE | 1 FREE SPACE |
| Width min. panel | mm 80 |
| Min. length panel | mm 210 |
| Max. panel thickness | mm 50 |
| Min. thickness panel | mm 12 |
| Roll edge size | mm 0.4 (min.) – mm 3 (max.) |
| Feed speed | m 1′ 12 |
| Glue tank capacity | 2 lt |
| Total installed power | kW 6 |
| Air pressure | Bar 7 |
| Machine weight | kg 700 |
| Machine length | mm 2300 |
CA MACHINE EQUIPMENTOPERATING UNITS
- Roll holder ø 750 mm
- Large panel support roller conveyor
- Edge cutter in roll 3 mm thick
- Manual upper presser with handwheel and digital display
- Teflon-coated glue tank
- Protective cabin for gluing unit and operating units
- Nr. 3 extraction hoods ø 100 mm
- Operating units managed by 7” touch screen PLC
- Quick-release glue tank
- Gluing and edge pressure unit
- Glue Pot / Spreader Roller
- Temperature controlled from the control panel
- Glue pot with automatic temperature stand-by
- 2 pressure rollers ø 70 mm
- Trimming unit
- consisting of 1 HF motor 12,000 rpm – kW 0.37
- Gleaning unit
- consisting of 2 HF motors – kW 0.75 each
- Micrometric adjustment with digital display
ACCESSORIES ON REQUEST
Double-motor trimming machine Min. panel mm 110
Edge scraper
Scraper glue
Brushes
Cleaning agent
Heated inlet guide
