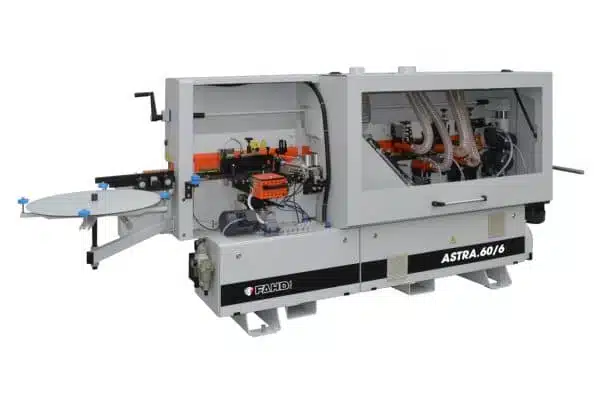

ASTRA.60/6
| Gluing unit | Trimming unit | Gleaning unit | Edge scraper assembly (OPT) | Glue scraper assembly (OPT) | Brush unit (OPT) |
 |  |  |  |  |  |
| Width min. panel | mm 100 |
| Min. length panel | mm 100 |
| Max. panel thickness | mm 60 |
| Min. thickness panel | mm 9 |
| Roll edge size | mm 0.4 (min.) – mm 3 (max.) |
| Feed speed | m 1′ 9.5 |
| Glue tank capacity | 2 lt |
| Total installed power | kW 5.3 |
| Air pressure | Bar 7 |
| Machine weight | kg 810 |
| Machine length | mm 3420 |
CA MACHINE EQUIPMENTOPERATING UNITS
- Roll holder ø 700 mm
- Large panel support roller conveyor
- Edge cutter in roll 3 mm thick
- Manual upper presser with handwheel and digital display
- Teflon-coated glue tank
- Protective cabin for operating units
- Nr. 2 suction hoods ø 110 mm + nr. 1 ø 120 mm
- Operating units managed by PLC
- Quick-release glue tank
- Gluing and edge pressure unit
- Glue Pot / Spreader Roller
- Temperature controlled from the control panel
- Glue pot with automatic temperature stand-by
- 1st pressure roller ø 70 mm frictioned, 2nd, 3rd roller ø 55 mm
- Trimming unit
- consisting of 2 HF 12,000 rpm tilting motors
- kW 0.22 each7
- Gleaning unit
- consisting of 2 HF motors – kW 0.55 each
- Micrometric adjustment with digital display
ACCESSORIES ON REQUEST
Protective cabin for gluing unit
Edge scraper with separating manifold and chip collection
Scraper glue
Brushes
Cleaning agent
Spare glue tank
Infrared lamp
Vertical copiers ”NESTING” for gleaning and edge scraper
