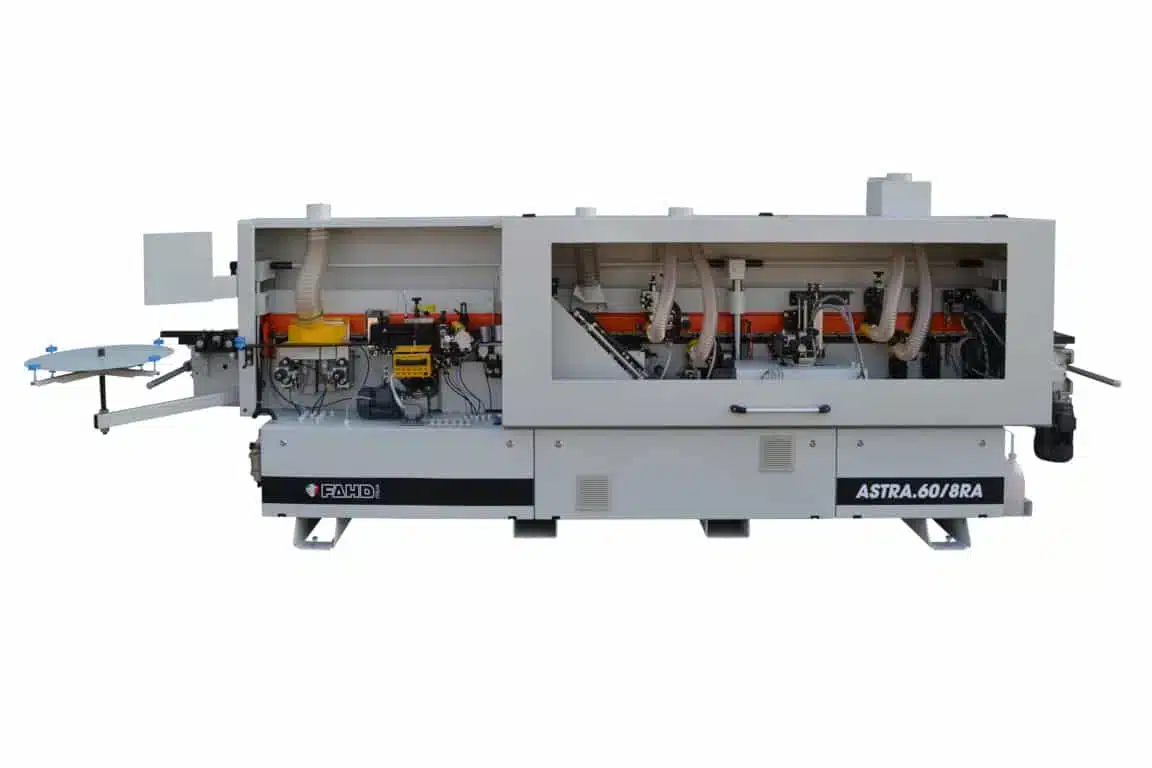

ASTRA.60/8RA
| Grinding unit | Gluing unit | Trimming unit | Gleaning unit | Rounding unit | |||
 |  |  |  |  | 1 FREE SPACE | 1 FREE SPACE | 1 FREE SPACE |
| Width min. panel | mm 100 |
| Min. length panel | mm 120 |
| Min. length panel with rounder | mm 250 |
| Max. panel thickness | mm 60 |
| Min. thickness panel | mm 10 |
| Roll edge size | mm 0.4 (min.) – mm 3 (max.) |
| Edge size in strips (with optional strip edge processing kit) | mm 5 |
| Feed speed | m 1′ 10/14 |
| Glue tank capacity | 2 lt |
| Total installed power | kW 9.6 |
| Air pressure | Bar 7 |
| Machine weight | kg 1180 |
| Machine length | mm 4200 |
CA MACHINE EQUIPMENTOPERATING UNITS
- Roll holder ø 700 mm
- Pair of diamond cutters
- Large panel support roller conveyor
- Edge cutter in roll 3 mm thick
- Manual upper presser with handwheel and digital display
- Teflon-coated glue tank
- Protective cabin for operating units
- Nr. 2 suction hoods ø 110 mm + nr. 2 ø 120 mm
- Operating units managed by 7″ touch screen PLC
- Operating units managed by PLC
- Quick-release glue tank

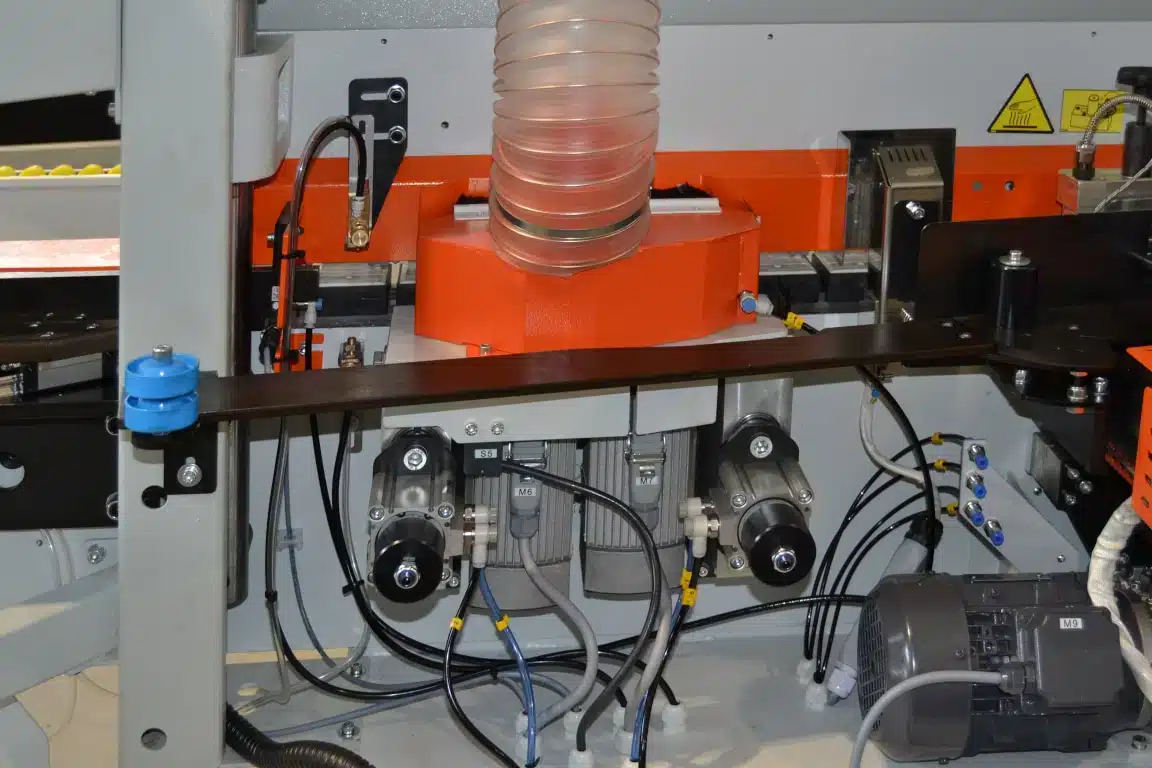

- Incoming grinding unit with vertical adjustment
- 2 HF engines 12,000 rpm – kW 1.5 each
- 2 cutters ø 50
- Useful working height 50 mm
- The two motors work independently to avoid chipping on the panel
- 1st motor counterclockwise rotation / 2nd motor clockwise rotation
- Gluing and edge pressure unit
- Glue Pot / Spreader Roller
- Temperature controlled from the control panel
- Glue pot with automatic temperature stand-by
- 1st pressure roller ø 70 mm frictioned, 2nd, 3rd roller ø 55 mm
- Trimming unit
- consisting of 2 HF 12,000 rpm tilting motors – kW 0.22 each
- Gleaning unit
- consisting of 2 HF engines – kW 0.55 each
- Micrometric adjustment with digital display
- Rounding unit
- consisting of 1 HF 12000 RPM motor – kW 0.55
ACCESSORIES ON REQUEST
Protective cabin for gluing unit
Edge scraper with separating manifold and chip collection
Scraper glue
Brushes
Anti-adhesive agent before grinding
Cleaning agent

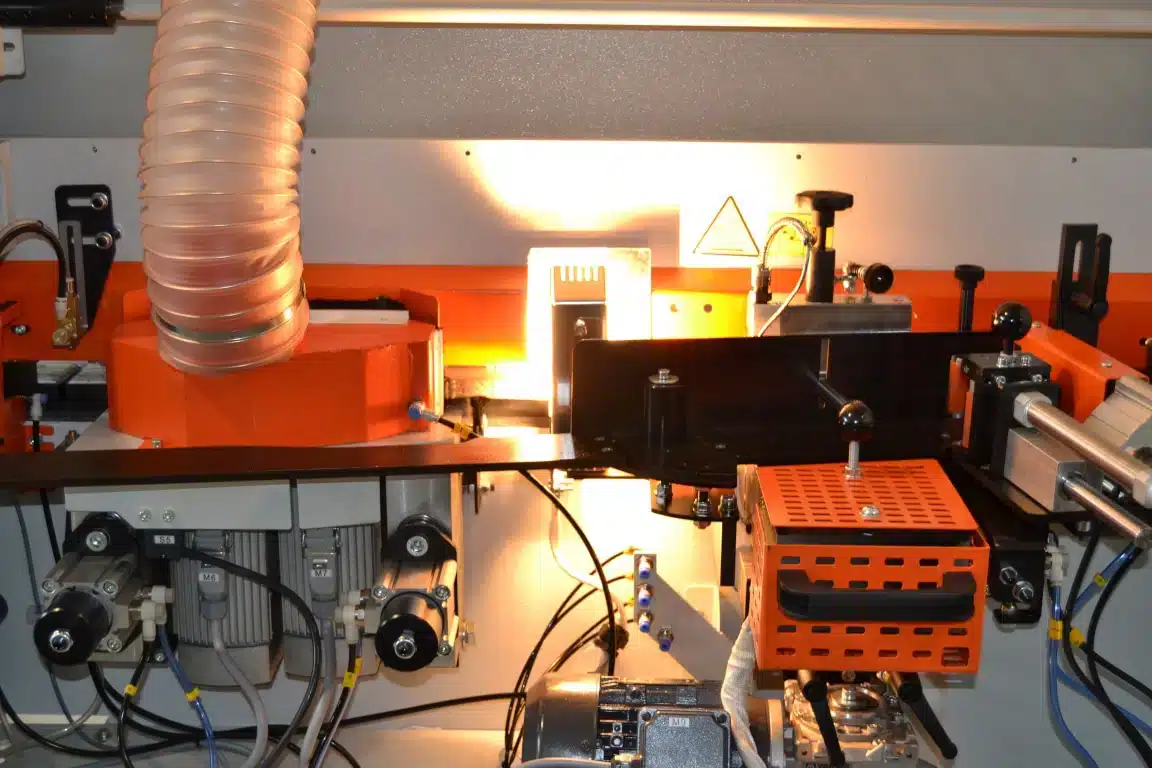

Infrared lamp
Replacement glue tank for EVA glue. To be deducted in the case of a machine equipped with only a combined PU/EVA tank
Predisposition for mounting the combined PU/EVA glue tank
PU/EVA combination glue tank
Diamond cutters h60
Vertical copiers ”NESTING” for gleaning and edge scraper
Edge processing kit in strips up to 5mm
Grinding engine power surcharge 2x kW 1.5
Software for connection with management system in compliance with the requirements of Industry 4.0 regulations (7″ touch screen control mandatory)
