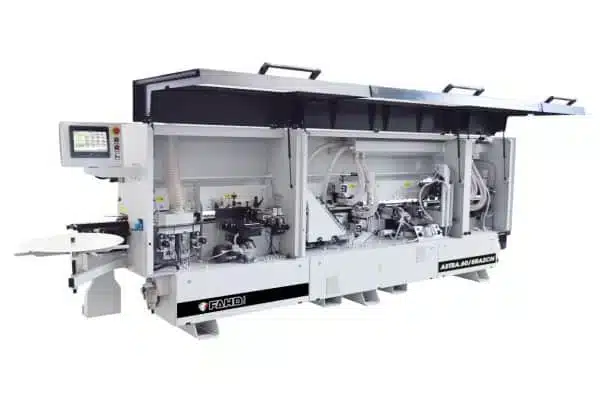

ASTRA.60/8RA2.CN
| Grinding unit | Gluing unit | Trimming unit | Gleaning unit | Rounding unit | Edge scraper assembly | Glue scraper unit | Brush unit |
 |  |  |  |  |  |  |  |
| Width min. panel | mm 100 |
| Min. length panel | mm 120 |
| Min. length panel with rounder | mm 120 |
| Max. panel thickness | mm 60 |
| Min. thickness panel | mm 10 |
| Roll edge size | mm 0.4 (min.) – mm 3 (max.) |
| Edge size in strips (with optional strip edge processing kit) | mm 5 |
| Feed speed | m 1′ 10 |
| Glue tank capacity | 2 lt |
| Total installed power | kW 9.6 |
| Air pressure | Bar 7 |
| Machine weight | kg 1730 |
| Machine length | mm 5100 |
CA MACHINE EQUIPMENTOPERATING UNITS
- Roll holder ø 700 mm
- Pair of diamond cutters
- Large panel support roller conveyor
- Edge cutter in roll 3 mm thick
- Manual upper presser with handwheel and digital display
- Teflon-coated glue tank
- Protective cabin for gluing unit and operating units
- Nr. 2 suction hoods ø 110 mm + nr. 2 ø 120 mm
- Operating units managed by 10″ touch screen PLC
- Operating units managed by PLC positioning by servo motors
- Quick-release glue tank
- Motorized pressure bar positioning managed by NC
- Motorized guide positioning managed by NC
- Anti-adhesive liquid nebulizer unit
- Incoming grinding unit
- 2 HF engines 12,000 rpm – kW 1.5 each
- 2 cutters ø 50
- Useful working height 45 mm ( 60 mm on request )
- The two motors work independently to avoid chipping on the panel
- 1st motor counterclockwise rotation / 2nd motor clockwise rotation
- INFRARED lamp
- Gluing unit
- Glue Pot / Spreader Roller
- Temperature controlled from the control panel
- Glue pot with automatic temperature stand-by
- Trimming unit
- consisting of 2 HF 12,000 rpm tilting motors – kW 0.22 each
- Gleaning unit motorized positioning managed by NC
- consisting of 2 HF engines – kW 0.55 each
- Micrometric adjustment with digital display
- Motorized positioning rounding unit managed by NC
- consisting of 1 HF 12000 RPM motor – kW 0.55 each
- Motorized positioning edge scraper unit managed by NC
- Cleaning liquid nebulizer unit
- Glue scraper unit
- Brush unit
ACCESSORIES ON REQUEST
12” touch screen control panel
Replacement glue tank for EVA glue. To be deducted in the case of a machine equipped with only a combined PU/EVA tank
Predisposition for mounting the combined PU/EVA glue tank
PU/EVA combination glue tank
Diamond cutters h60
Vertical copiers ”NESTING” for gleaning and edge scraper
Edge processing kit in strips up to 5mm
Software for connection with management system in compliance with the requirements of Industry 4.0 regulations (7″ touch screen control mandatory)
