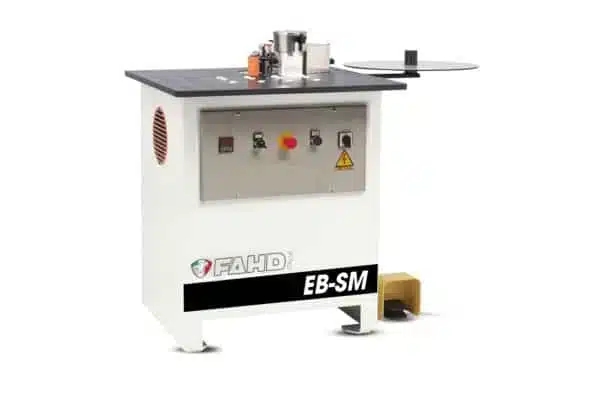

EB-SM
| Thickness min.-max. panel | 10-60 mm |
| Roll edge size | 0.4-3 mm |
| Minimum radius with concave curvature | mm 20 |
| 2 feed speeds | M 1′ 4-8 |
| Total power consumption | kW 2.5 |
| Air pressure | bar 7 |
| Machine weight | kg 150 |
| Overall dimensions | mm 800x710x1050 |
CA MACHINE EQUIPMENT
- Straight and curved parts
- Spreader roller height 60 mm
- Variable available counter gauge with plastic thicknesses
- Pneumatic shear for edge thickness up to 3 mm
- Top in thick solid bakelite
- Electronic temperature controller
- Pedal edge cutting control
ACCESSORIES ON REQUEST
Surcharge for voltage other than 380-400/50-60
