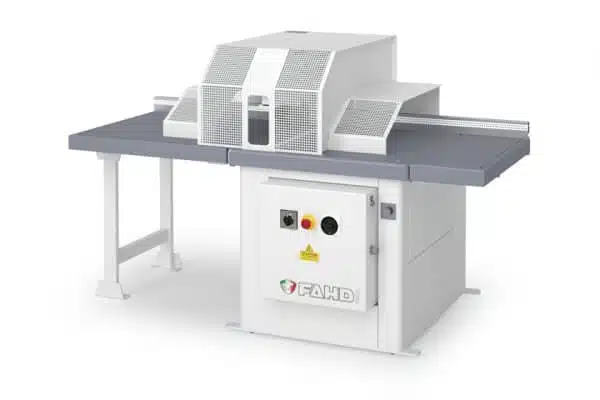

MT 60 – 60CF
| TA 60 | TA 60CF | |
| Blade diameter | mm 600 | mm 600 |
| Max. operating pressure | bar 70 | bar 70 |
| Motor power | HP 12 | HP 12 |
| Engine rpm | rpm 3000 | rpm 2636 |
| Machine weight | kg 570 | kg 780 |
STANDARD MACHINE EQUIPMENTCA MACHINE EQUIPMENT
- Hydraulic saw unit drive
- Blade ascent speed controller
- Protective grille on cutting area (TA 60)
- Widia blade
- 1 m work surface to the right of the blade
- 1 m work surface to the left of the blade
- Side material load
- Hydraulic saw unit drive
- Engine brake
- Two-hand hand-saving control
- Electrical system in accordance with CE standards
- Blade ascent speed controller
- Protective grille on cutting area (TA 60)
- Widia blade
- 1 m work surface to the right of the blade
- 1 m work surface to the left of the blade
- Side material load (TA 60)
- Front and side material loading (TA 60CF)
ACCESSORIES ON REQUEST
Pneumatic front protection (TA 60CF)
Extension of roller conveyor length 1 m
Manual side reference (60 mm)
Manual Side Reference (250 mm) (TA 60)
Manual Side Reference (400 mm) (TA 60CF)
Pneumatic Side Reference (60 mm) (TA 60)
Pneumatic Side Reference (550 mm) (TA 60)
Saw blade Ø 600 mm
Machine on 8° inclined base (TA 60)
V220 Powered Laser
