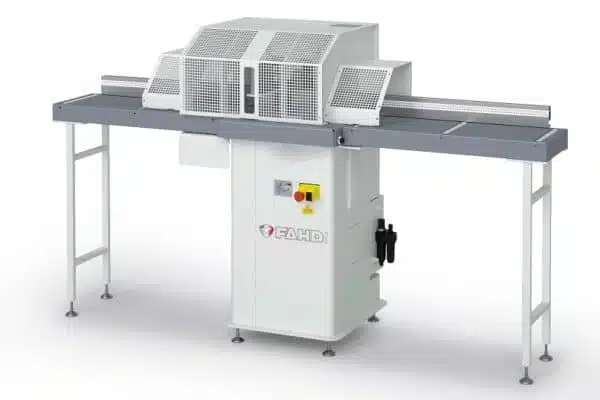

TA 35-45
| TA 35 | TA 45 | |
| Blade diameter | mm 350 | mm 450 |
| Max. operating pressure | bar 8 | bar 8 |
| Motor power | HP 4 | HP 4 |
| Engine rpm | rpm 3000 | rpm 3000 |
| Machine weight | 160 kg | kg 340 |
STANDARD MACHINE EQUIPMENTCA MACHINE EQUIPMENT
- Pneumatic saw unit drive
- Blade ascent speed controller
- Widia blade
- 1 m work surface to the right of the blade
- 1 m work surface to the left of the blade
- Pneumatic saw unit drive
- Engine brake
- Two-hand hand-saving control
- Electrical system in accordance with CE standards
- Blade ascent speed controller
- Protective grille on the cutting area
- Widia blade
- 1 m work surface to the right of the blade
- 1 m work surface to the left of the blade
ACCESSORIES ON REQUEST
Extension of roller conveyor length 1 m
Manual Side Reference (TA 35)
Pneumatic side reference (TA 35)
Manual Side Reference (60 mm) (TA 45)
Manual Side Reference (250 mm) (TA 45)
Pneumatic side reference (60 mm) (TA 45)
Pneumatic side reference (330 mm) (TA 45)
Engine HP 7.5 (TA 45)
Saw blade Ø 350 mm (TA 35)
Saw blade Ø 450 mm (TA 45)
Machine on 10° inclined base (TA 35)
Machine on 8° inclined base (TA 45)
