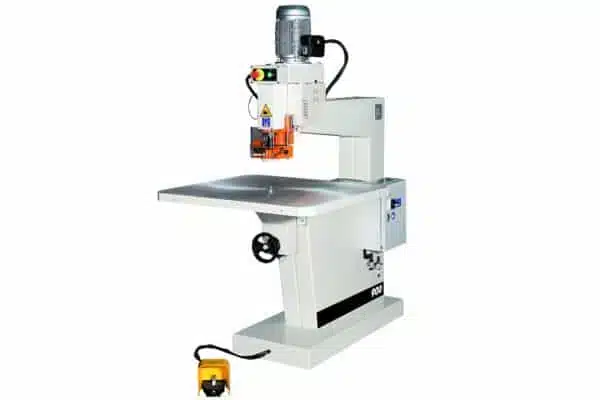

R 600-800-900
| R 600 | R 800 | R 900 | |
| Spindle-to-column distance | mm 600 | mm 800 | mm 900 |
| Vertical shaft stroke | mm 80 | mm 80 | mm 80 |
| Table dimensions | mm 800×600 | mm 800×600 | mm 800×600 |
| Vertical table travel | mm 140 | mm 140 | mm 140 |
| Motor power | HP 2/3 | HP 3/4 | HP 3/4 |
| Spindle speed | rpm 9000/18000 | rpm 9000/18000 | rpm 9000/18000 |
| Machine weight | kg 240 | kg 250 | 300 |
STANDARD MACHINE EQUIPMENTCA MACHINE EQUIPMENT
- Belt drive motor
- Main switch with push button
- Emergency button
- Nr.1 collet Ø 10mm and nr.1 collet Ø 12mm, nr.2 spindle locking keys and nr.5 TEMPLATE Ø 6,8,10,12,14 mm (R 900)
- Belt drive motor
- Main switch with push button
- Emergency button
- Extractor hood
- Safety switch on the brake
- Thermal relay on motor
- Top dimensions 1,000 x 800 mm
- Nr.1 collet Ø 10mm and nr.1 collet Ø 12mm, nr.2 spindle locking keys and nr.5 TEMPLATE Ø 6,8,10,12,14 mm (R 900)
ACCESSORIES ON REQUEST
Tilting head +/- 45° (for R 600 – R 800)
Vacuum pump 15 m³/h with table connections (for R 600 – R 800)
Guidance on the plan
Single-phase motor
Voltage different from standard
