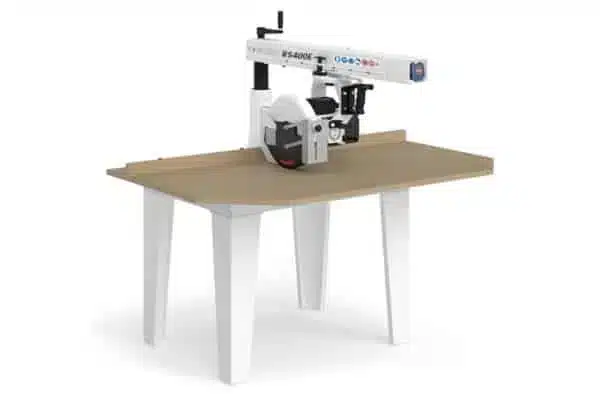

RS 400-600 E
| RS 400 E | RS 600 E | |
| Cutting capacity with a thickness of 20 mm | mm 400 | mm 600 |
| 45° truncation capability | mm 230 | mm 360 |
| Depth of cut | mm 65 | mm 85 |
| Cutting depth with 45° motor | mm 38 | mm 55 |
| Arm angle | 0 + 45° – 45° | 0 + 45° – 45° |
| Blade angle | 0 – 45° | 0 – 45° |
| Blade diameter | mm 250 | mm 300 |
| Number of bearings | 8 | 8 |
| Motor power | HP 4 | HP 4 |
| Engine rpm | rpm 2800 | rpm 2800 |
| Machine weight | kg 130 | kg 140 |
CA MACHINE EQUIPMENT
- Blade not included
- Motor protection with release coil
- Electronic brake
- Spring return
- End-stop
- Emergency button
- Quick column locking
- Patented trolley sliding system with pressed tubular steel guides
ACCESSORIES ON REQUEST
Rear Suction Hood
Roller bench per meter (Aluminum guide on the machine surface mandatory)
Aluminum guide on machine table
Manual Side Reference
Pneumatic Presser
Widia saw blade Ø 250 mm (RS 400 E)
Widia saw blade Ø 300 mm (RS 600 E)
