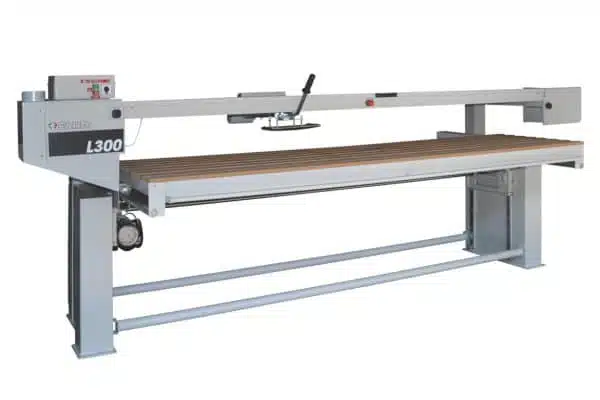

L 260 – 300
| L 260 | L 300 | |
| Length of the table | mm 2600 | mm 3000 |
| Top width | mm 800 | mm 800 |
| Vertical Plane Shift | mm 570 | mm 570 |
| Plane cross stroke | mm 800 | mm 800 |
| Main Motor Power | HP 3/4 | HP 3/4 |
| Belt length | mm 7050 | mm 7850 |
| Pulley diameter | mm 250 | mm 250 |
| Machine weight | kg 460 | kg 490 |
STANDARD MACHINE EQUIPMENTCA MACHINE EQUIPMENT

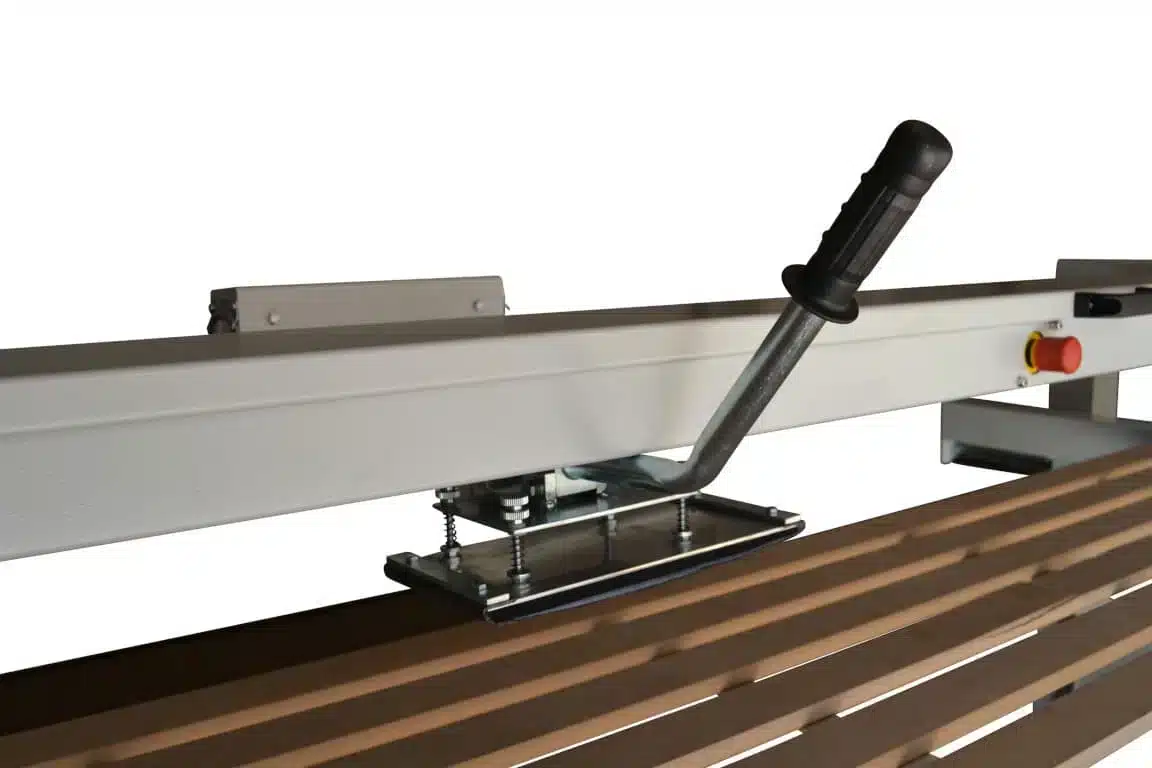

- Adjustable rack and pinion bracket
- 2 racks
- Start-up 0 – 1
- Automatic table lift
- Suction port on left casing Ø 120 mm
- Paper tape
- Electrical system in accordance with CE standards
- Self-braking electronics
- Protections in accordance with standards
- E-stop button in working position
- Microswitches for lower and upper carriage limit switches
ACCESSORIES ON REQUEST
Suction motor and dust filter with a bag ø 400 mm
Surcharge for single-phase version
Inverter for speed control
Workpiece stop on the top
Suction port Ø 120 mm on right casing
Replacement paper tape (6,050-7,050-7,850 x150 mm; grit 100)
