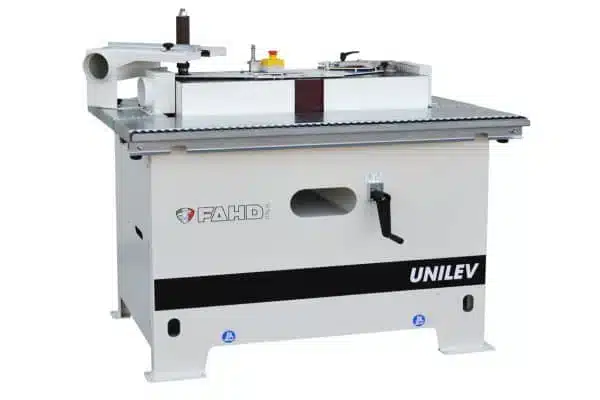

UNILEV
| Abrasive belt development | mm 2170 |
| Sanding belt height | mm 150 |
| Worktop length | mm 1440 |
| Overall width of worktops | mm 710 |
| Tilting the worktop | 0-45° |
| 2 belt speeds | m/sec 12-24 |
| Vertical displacement of oscillating unit | mm 130 |
| Motorized roller diameter | mm 160 |
| 2-speed belt motor power | HP 3/4 |
| Vertical oscillation | mm 20 |
| Suction hood diameter | mm 120 |
| Machine weight | kg 416 |
CA MACHINE EQUIPMENT
- Oscillating belt adjustable by mechanical system
- Adjustment of the working height of the unit by means of a handwheel and guides with high sliding precision
- Tilting worktop
- Upper protective casing
- Can be used for sanding flat surfaces, curves, stops, edges and holes
- Oscillating movement of the belt by means of a dedicated motor and gearbox
- Dedicated motor for the sanding belt tractor
- Machine that can be moved by trans pallet
ACCESSORIES ON REQUEST
Table extension with roller conveyor for wide pieces that can be folded in case of non-use for a smaller footprint without having to disassemble them
Accessory kit complete with: steel pins ø 10-20 mm; rubber rollers ø 20-30-40-50 mm; Complete kit of nr.1 ER32 collet holder + nr.1 collet Ø 10 mm + nr.1 collet Ø 20 mm
Additional table for working with rollers complete with suction connection
Pneumatic roller ø 70 mm with ER32 collet holder
Rubber roller ø 8 complete with nr. 1 pin and nr. 1 ER32 collet holder
