SP 530 PRO
Thickness planer SP 530 PRO
| Worktop dimensions | mm 550×960 |
| Min. / Max. working height | mm 4/300 |
| 4-knife shaft diameter | mm 120 |
| Shaft rotation speed | rpm 5000 |
| Knife size | mm 530x35x3 |
| Feed speed | m/1′ 7-14 |
| Feed motor power | HP 1 |
| Lifting motor power | HP 0.5 |
| Motor power | HP 7.5 |
| Machine weight | kg 790 |
Motorized ascent and descent of the floor with mechanical numeric display, selector for fast movement and button for impulse movement (only uphill)

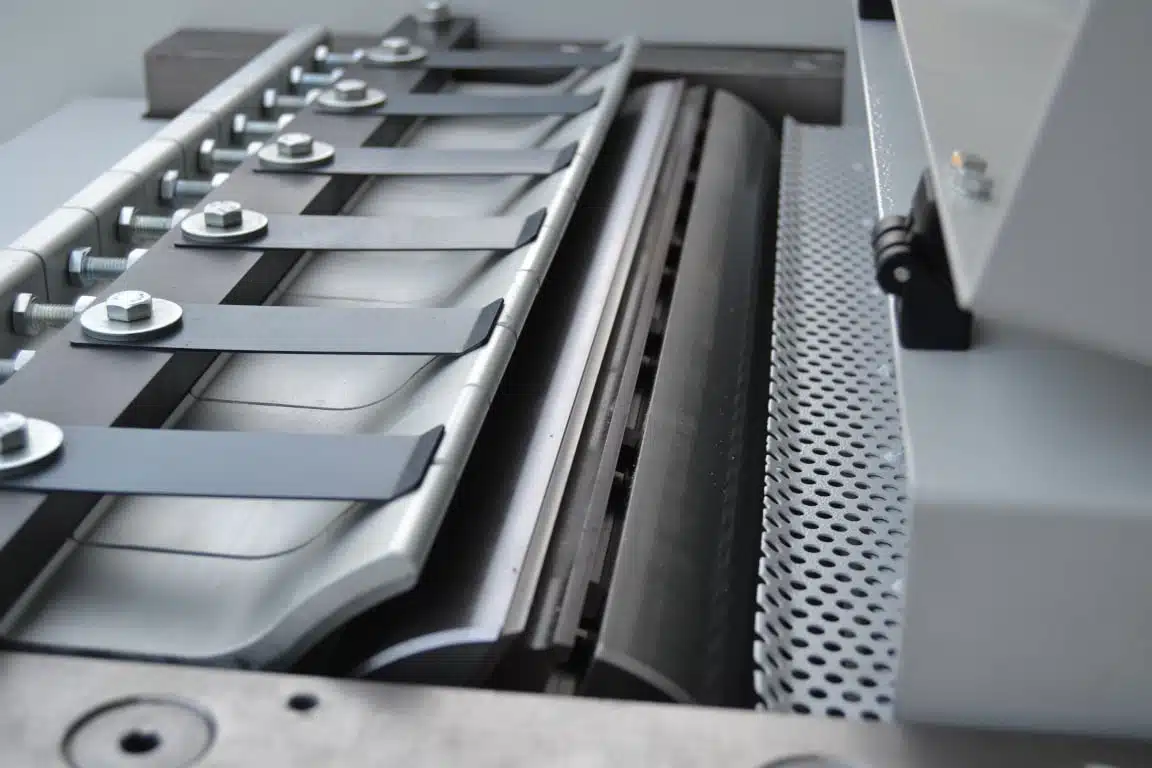

Planer knives
Magnetic knife adjuster
Mechanical digital display for floor height
Helical feed roller
Sandblasted outlet feed roller
Thickness table with 4 ø 25 mm screws for lifting with dust protection
Manual star-delta starter
Extractor hood ø 140 mm
Motorized ascent and descent of the floor with mechanical numeric display, selector for fast movement and button for impulse movement (only uphill)
Planer knives
Magnetic knife adjuster
Mechanical digital display for floor height
Helical feed roller
Sandblasted outlet feed roller
Thickness table with 4 ø 25 mm screws for lifting with dust protection
Manual star-delta starter
ACCESSORIES ON REQUEST
Electronic speed variator for advance from 4 to 20 m/1′ Speed adjustment by potentiometer
Positioning of the plane using an electronic HEIGHT POSITIONER

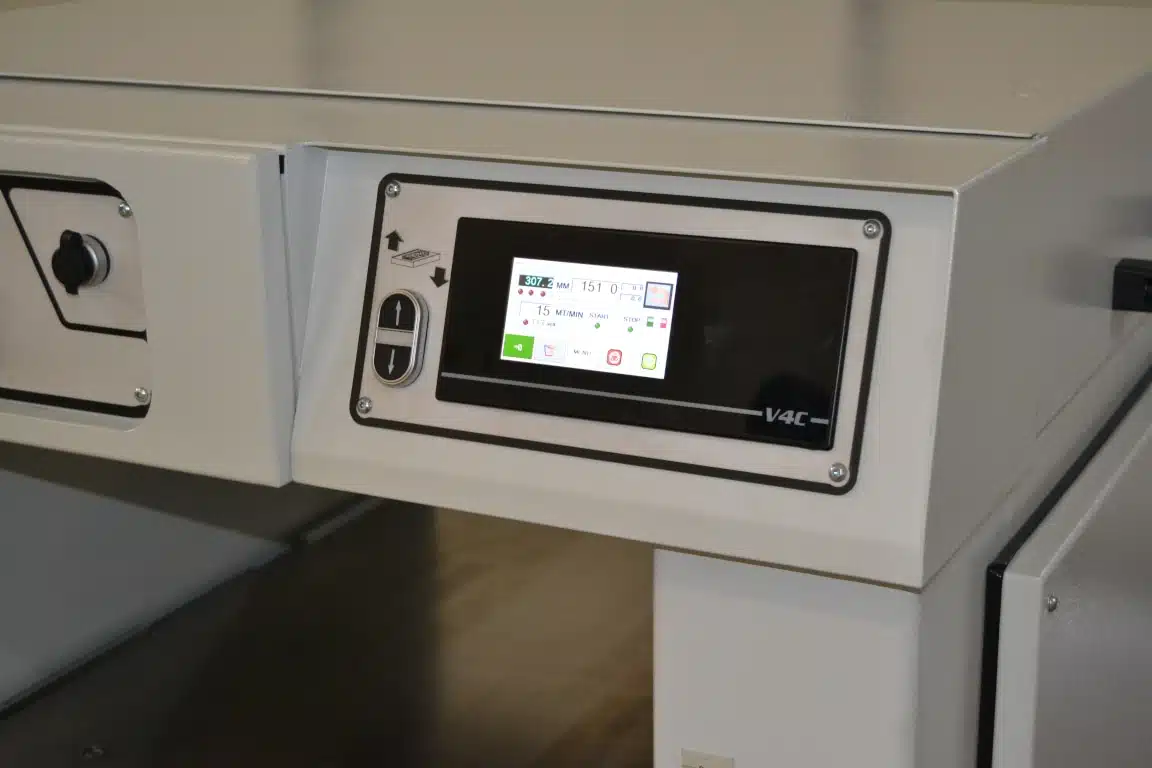

COMFORT PACK for managing machine functions
Automatic delta star start
10 HP Motor
Engine HP 12
Surcharge for self-braking motor with brake release (standard version)
2 idle rollers on the table
Sectioned roller at the inlet
Rubberized infeed roller
Rubberized outfeed roller
2nd outgoing roller
2nd rubberized outfeed roller
One-piece planer shaft for tersa knives
Silenced helical slatted shaft
Roller conveyor infeed extension (2 rollers) flat thickness
Roller conveyor output extension (2 rollers) table thickness
Extractor hood Ø 140 mm (standard version)
Machine configuration suitable for processing advanced materials
