SP 630 PRO

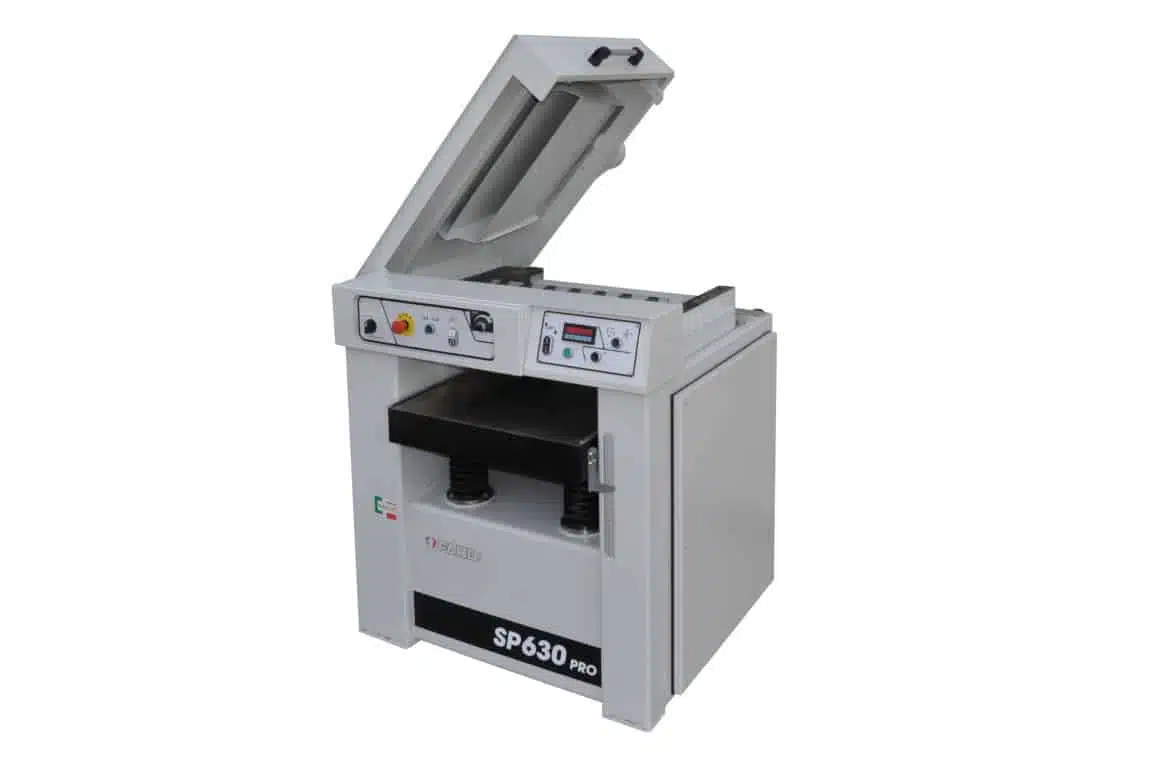

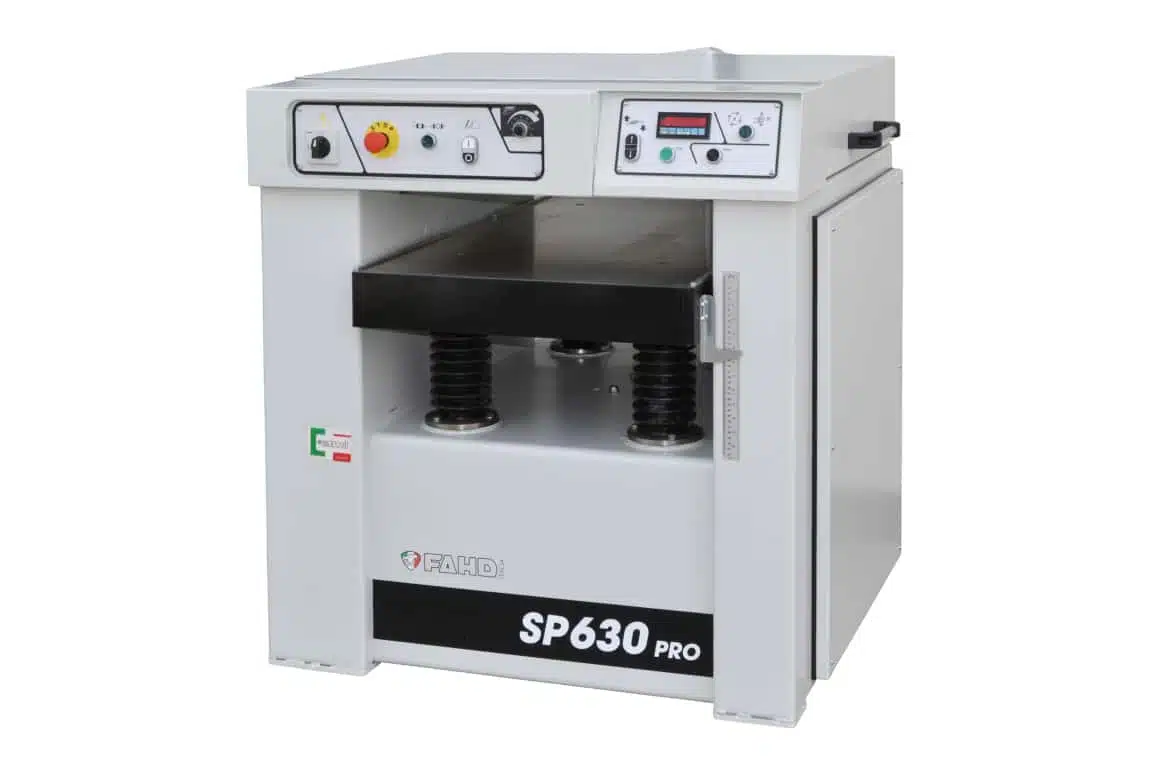

Thickness planer SP 630 PRO
| Worktop dimensions | mm 650×970 |
| Min. / Max. working height | mm 4/300 |
| 4-knife shaft diameter | mm 120 |
| Shaft rotation speed | rpm 5000 |
| Knife size | mm 630x35x3 |
| Feed speed | m/1′ from 4 to 20 |
| Feed motor power | HP 1.5 |
| Lifting motor power | HP 0.5 |
| Motor power | HP 7.5 |
| Machine weight | kg 890 |

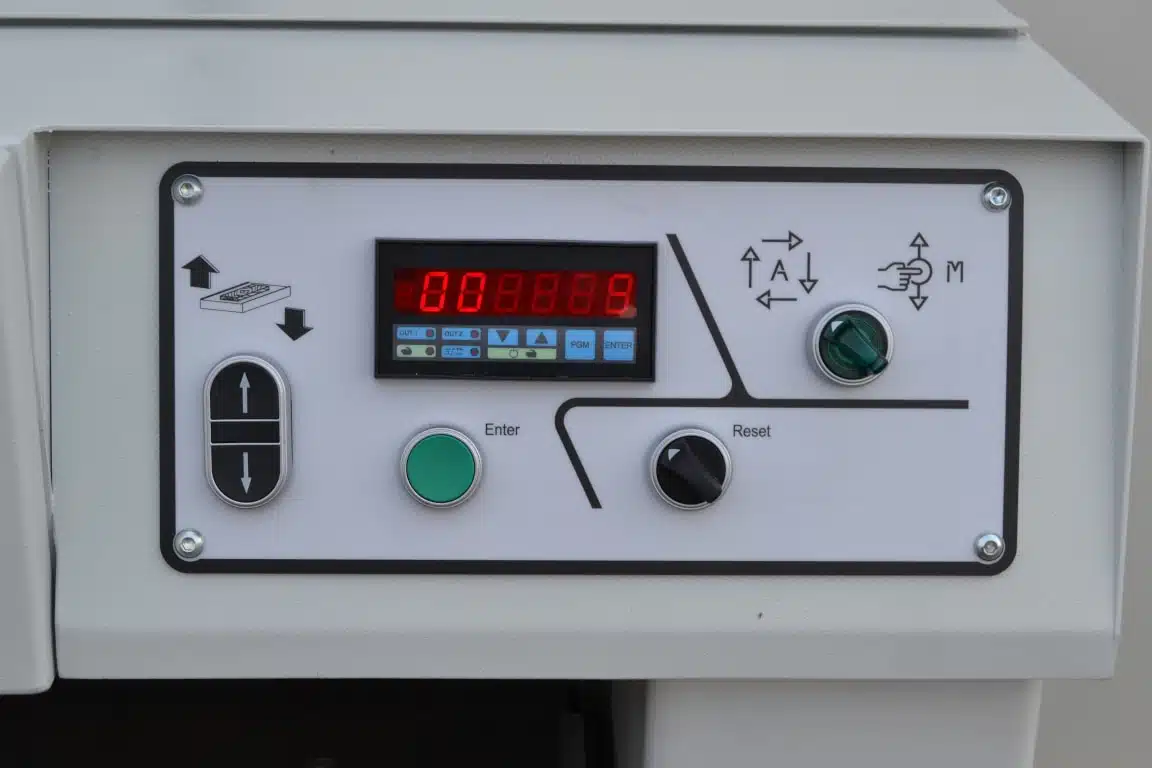

Electronic ELEVATION POSITIONER
Encoder reading system
Lifting motor managed by inverter
Selector to switch from automatic to manual positioning mode In manual mode, the plane moves by pressing the Up/Down buttons and the altitude is displayed on the electronic display
Axis calibration function in all positions
Electronic speed variator for advance from 4 to 20 m/1′ with speed adjustment by potentiometer
Manual star-delta starter

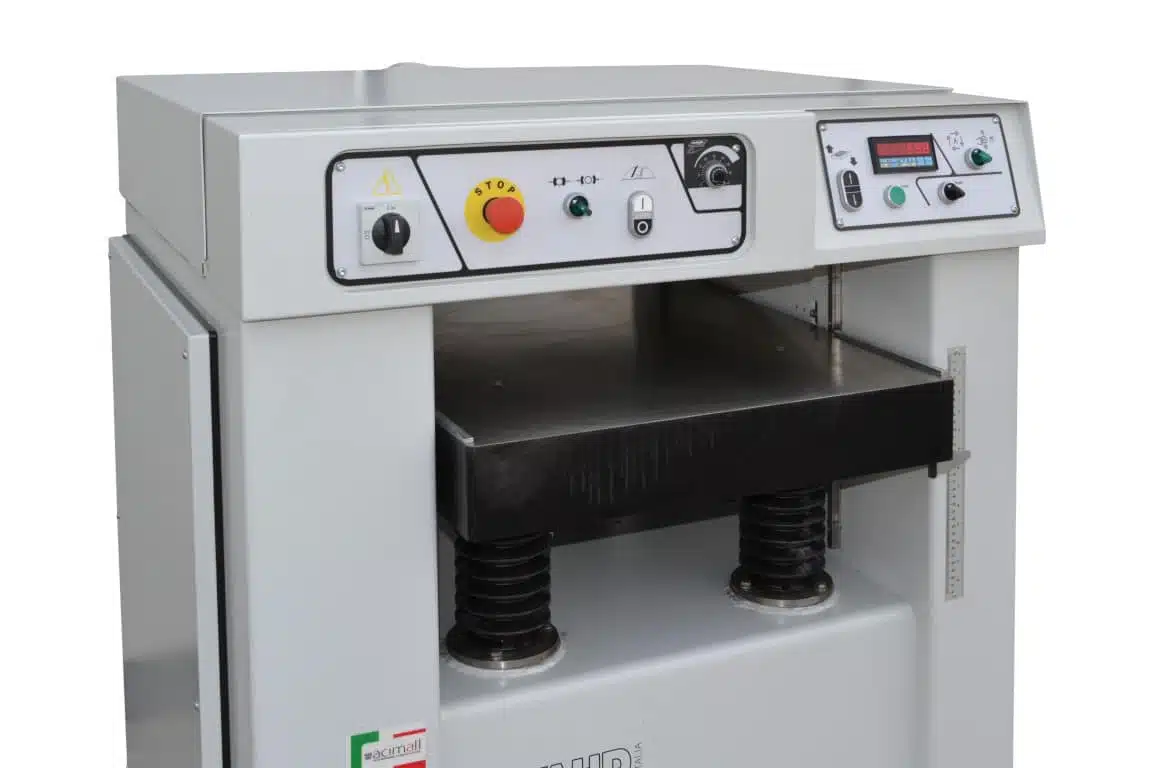

Thick table with 4 ø 25 mm screws for lifting with dust protection, the table is supported by 2 recirculating ball guides/pads to ensure high rigidity
HSS planer knives

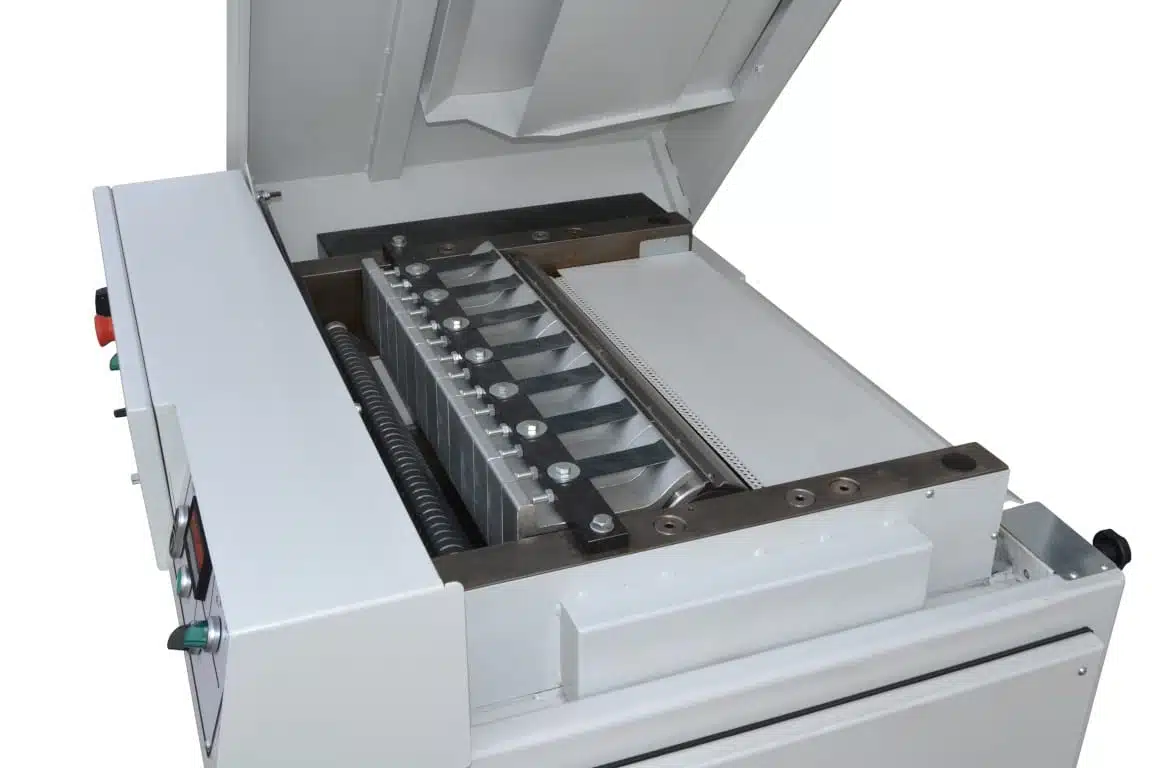

Magnetic knife adjuster
Helical feed roller
Sandblasted outlet feed roller
Electronic ELEVATION POSITIONER
Encoder reading system
Lifting motor managed by inverter
Selector to switch from automatic to manual positioning mode In manual mode, the plane moves by pressing the Up/Down buttons and the altitude is displayed on the electronic display
Axis calibration function in all positions
Electronic speed variator for advance from 4 to 20 m/1′ with speed adjustment by potentiometer
Automatic delta star start
Self-braking motor
Thick table with 4 ø 25 mm screws for lifting with dust protection, the table is supported by 2 recirculating ball guides/pads to ensure high rigidity
HSS planer knives
Magnetic knife adjuster
Helical feed roller
Sandblasted outlet feed roller
Extractor hood ø 140 mm
ACCESSORIES ON REQUEST
COMFORT PACK for managing machine functions
10 HP Motor
Engine HP 12
Automatic star-delta start (standard version)
Surcharge for self-braking motor with brake release (standard version)
2 idle rollers on the table
Sectioned roller at the inlet
Rubberized infeed roller
Rubberized outfeed roller
2nd outgoing roller
2nd rubberized outfeed roller
One-piece planer shaft for tersa knives
Silenced helical slatted shaft
Roller conveyor infeed extension (2 rollers) flat thickness
Roller conveyor output extension (2 rollers) table thickness
Extractor hood Ø 140 mm (standard version)
Machine configuration suitable for processing advanced materials
