SP 800-1000 KLASS

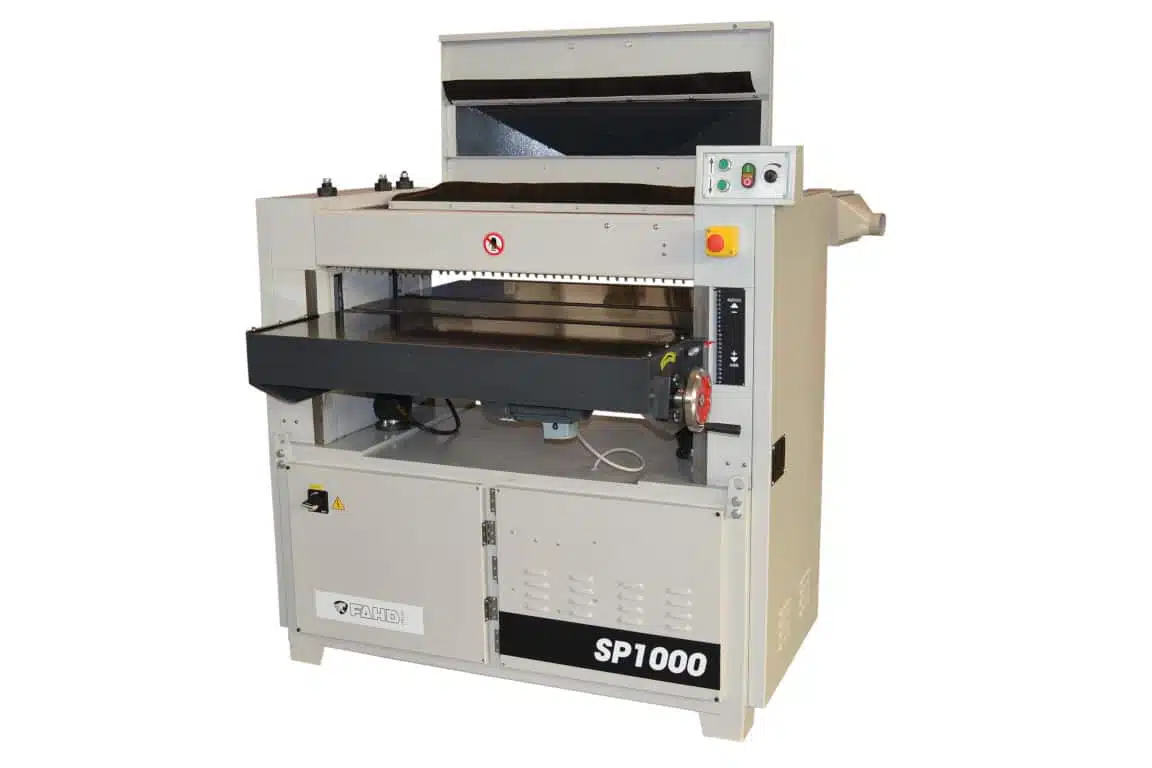

Thickness planers SP 800 KLASS – SP 1000 KLASS
| SP 800 KLASS | SP 1000 KLASS | |
| Worktop dimensions | 800×900 mm | mm 900×1000 |
| Min. / Max. working height | mm 4/200 | mm 4/200 |
| 4-knife shaft diameter | mm 105 | mm 120 |
| Shaft rotation speed | rpm 5000 | rpm 4600 |
| Electronic speed variator for forward movement | m/1′ 4/20 | m/1′ 4/20 |
| Motor power | HP 10 | HP 15 |
| Lifting Motor power | HP 1 | HP 1 |
| Feed Motor power | HP 3 | HP 4 |
| Machine weight | kg 880 | kg1450 |
STANDARD MACHINE EQUIPMENT
CE MACHINE EQUIPMENT
Motorized lifting of the worktop
Thickness table with motorized roller
Nr.4 planer knives
Planer spindle protection
Nr.2 rollers on the table
Automatic delta star start
Motorized lifting of the worktop
Thickness table with motorized roller
Nr.4 planer knives
Planer spindle protection
Nr.2 rollers on the table
Automatic delta star start
Extractor hood Ø 180 mm
ACCESSORIES ON REQUEST
Sectioned roller
One-piece planer shaft for tersa knives
Silenced helical slatted shaft
Roller conveyor infeed table extension 400 mm
Roller conveyor output table extension 400 mm
Digital reader worktop position
Engine HP 15 (SP 800 KLASS)
