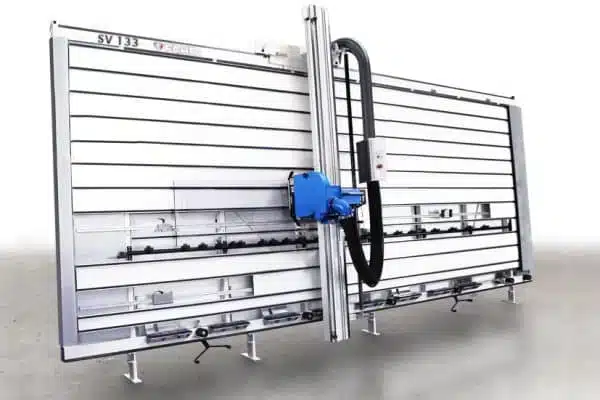

SV 133
| Max. cutting length | mm 3200 |
| Max. vertical cutting height | mm 1900 |
| Max. horizontal cutting height | mm1700 |
| Max Cutting Thickness | mm 60 |
| Motor power | HP 5 |
| Blade diameter | mm 250 |
| Blade speed | rpm 5300 |
| Machine weight | kg 800 |
CE version available with scoring unit with 2 coupled blades
- Movable table Automatic: ELECTRIC
- Manual entry and return of the blade unit by means of an ergonomic lever
- Tilting device for placing small workpieces along the entire length of the machine
- Built-in ejector with chip collection bag or predisposition for independent suction
- Nr.4 mechanical positioners for horizontal cuts
- Nr.1 Leaf for vertical cuts
- Lift-up wheel device for sliding the panels
- Self-braking motor
- Safety and soundproofing devices
ACCESSORIES ON REQUEST
Eco system with pneumatic dampers including: Additional door; Dust conveyor on the right side for horizontal cuts (TRK) (The machine must be connected to an independent extractor)
Additional swing
Horizontal repetitive cutting device
Engraver Group with 2 Widia Knives (machine version without scoring unit with 2 coupled blades)
Digital vertical dimension reader
Digital horizontal dimension reader
Sliding support for narrow workpieces
Dust conveyor on the right side for horizontal cuts (TRK) (The machine must be connected to an independent extractor)
Depth stop
Safety flashing wheels up
Bevel cutting device
Depth stop milling kit for composite materials
Supplement for cutting length 4200 mm
Wall-mounted version
Blade D.250 mm. Z48 AK silenced for melamine
Blade D.250 mm. Z80 AK silenced for plexiglas
Blade speed variator from 2000/6000 rpm.
Posi-system: electronic vertical shear control panel complete with digital horizontal dimensions reader
Nr.4 additional strips above the short piece device
Pneumatic carriage clamping for horizontal cuts
Corian kit
