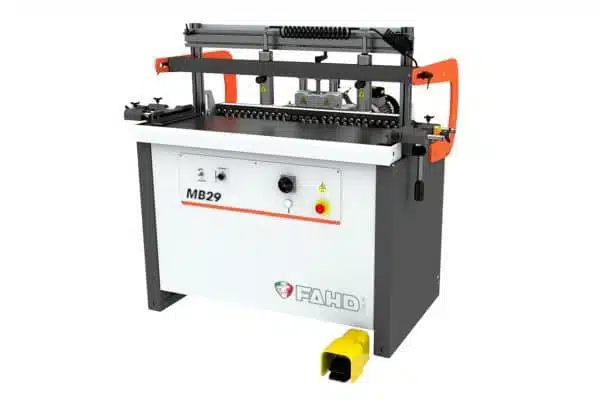

MB 29
| Number of spindles | 29 |
| Distance between each spindle | mm 32 |
| Total center distance between first and last spindle | mm 896 |
| Max. drilling depth | mm 65 |
| Worktop height | mm 860 |
| Max. size of the workpiece to be drilled | mm 1142x3000x60 |
| Spindle speed | rpm 2800 |
| Motor power | HP 2.5 |
| Operating pressure | ATM 6-8 |
| Machine weight | kg 380 |
ACCESSORIES ON REQUEST
Additional socket for quick coupling
Side bit tray
Vertical support for nr. 2 rods
Kit nr. 2 supports for side brackets
Nr. 2 reference stops to guide the panel
1000 mm extension for reference rod
Pressure lift up to 130 mm
Reference stops for 45° – 90° frames
Additional rod stop kit (nr.2 pcs)
Nr.1 additional locking presser
Nr.2 additional locking pressers
Reference pin for in-line holes (nr.1 pcs)
Fixed gauge for rear stop setting (500 mm)
Rod joint kit (1500 + 1500 mm)
Gauge for setting the stops on the shaft
Surcharge for single-phase motor
