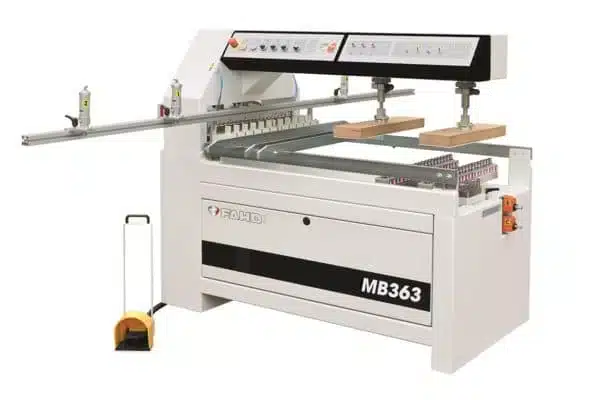

MB 363
| Number of spindles horizontal head | 21 |
| Number of vertical head spindles | 21+21 |
| Distance between each spindle | mm 32 |
| Max. centre distance between vertical spindles | mm 1020 |
| Min. centre distance between the vertical spindles | mm 140 |
| Max. drilling depth | mm 80 |
| Horizontal head height adjustment | 6-45 mm |
| Horizontal head motor power | HP 2 |
| Vertical head motor power | HP 2+2 |
| Machine weight | kg 900 |
