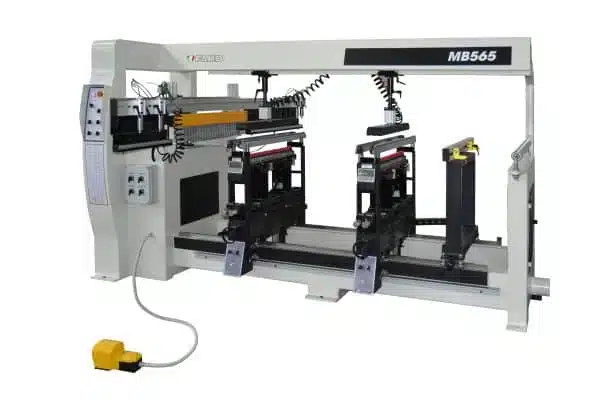

MB 565
| Number of spindles horizontal head | 21 |
| Number of vertical head spindles | 11 each |
| Distance between each spindle | mm 32 |
| Total center distance between first and last spindle | mm 1600 |
| Min. centre distance between the vertical spindles | mm 250 |
| Max. drilling depth | mm 60 |
| Max. size of the workpiece to be drilled | 70 mm |
| Horizontal head motor power | HP 2 |
| Vertical head motor power | HP 2 each |
| Machine weight | kg 1200 |
