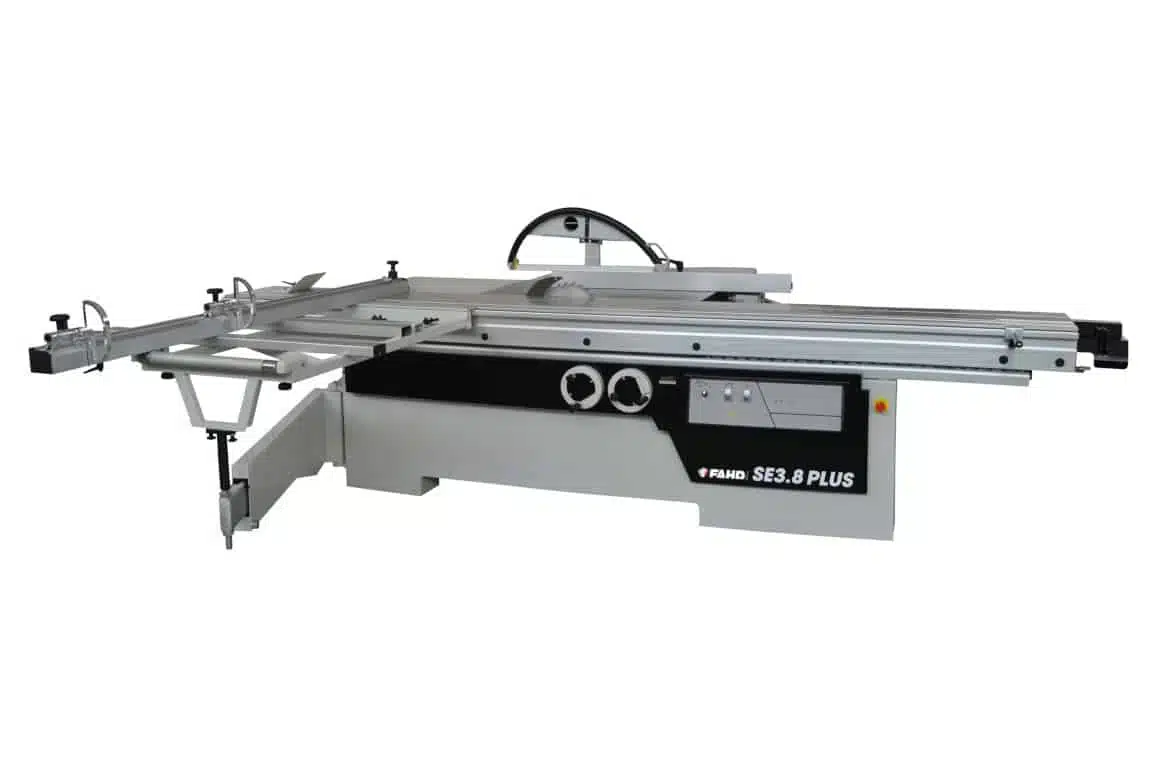

Deduction for machines with manual tilting and lifting by means of handwheels in the front position

Deduction for CE standard machine with max. blade Ø 315 mm

Deduction for machine with 1 speed saw blade in accordance with CE standards and self-braking motor with manual star/delta start

Deduction for machine without scoring unit

Scoring unit with independent HP motor 1. Height sliding and translation on linear guides. Pneumatic insertion of the scoring unit. The scoring blade can only be lifted when the scoring motor is running.

Motorized parallel guide with movements managed by a 5’V4C touch screen control panel with manual and automatic function and the possibility of incremental movements: encoder reading system; automatic change of the height with respect to the position of the guide, profile positioned high or low; automatic axis calibration; automatic recovery of the height between parallel cut and blade inclination. (with this option also the lifting and tilting are managed from the control panel)

8′ V8 touch screen control panel instead of the 5’V4C control panel (hanging control panel mandatory)

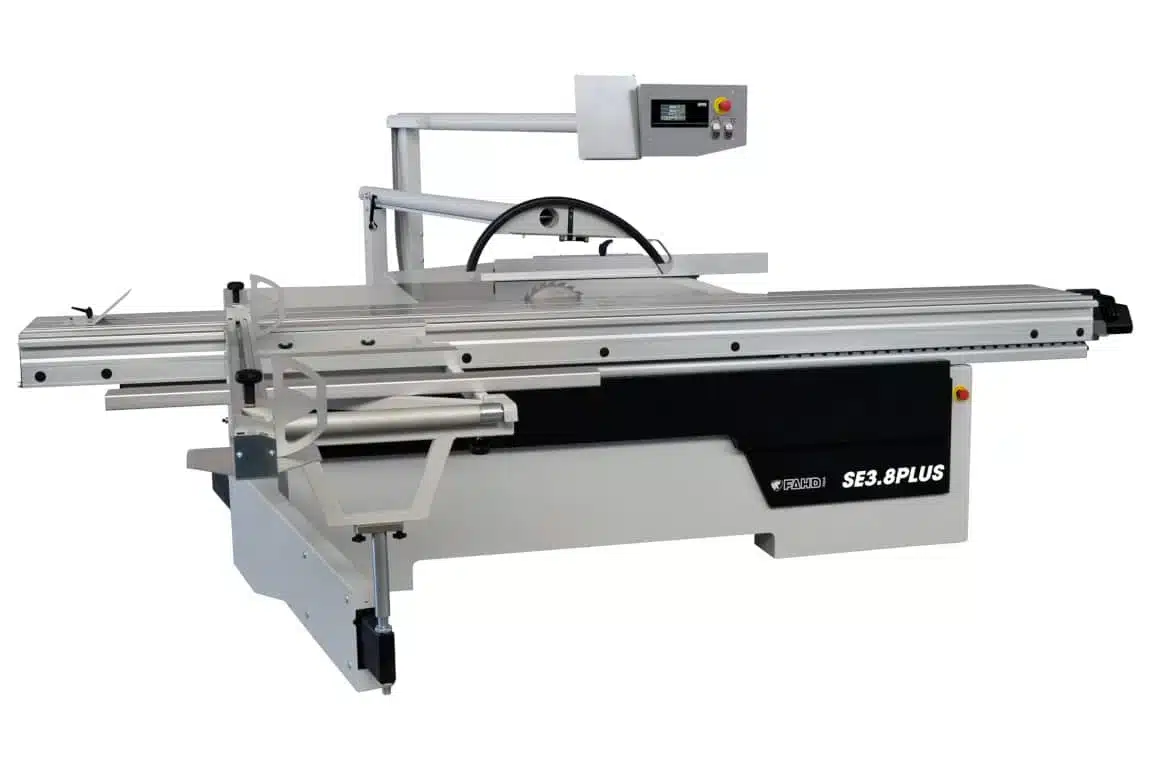

Adjustable hanging control panel

10 HP Motor

Engine HP 12

Surcharge for self-braking motor with brake release (standard version)

CX 400 suspended blade guard – Ø 80 mm extraction hood (standard version)

Saw blade speed managed by inverter with 3-position selector from the control panel 2800/4000/5600 rpm (standard version)

Square frame with dimension reminders for squaring rod

Squaring pole with 3 electronic digital viewers

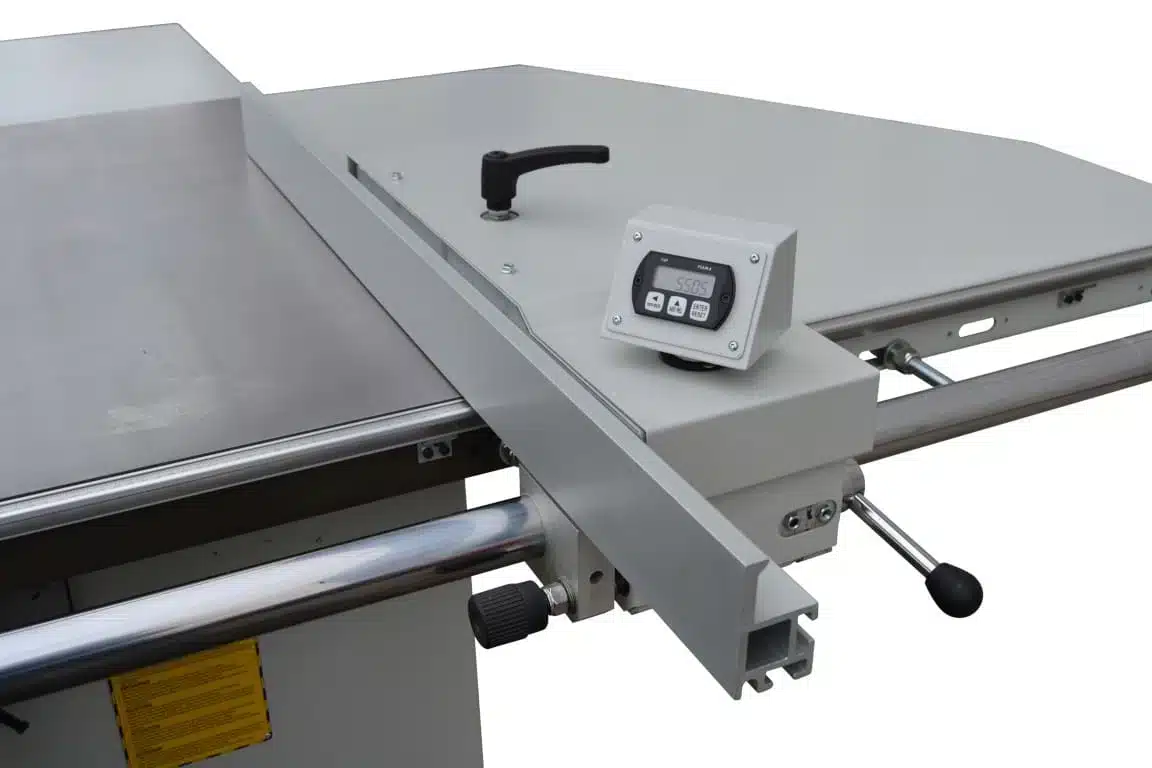

Electronic digital display on parallel cutting guide

Cutting width 1500 mm

Double-sided protractor for bevel cuts

Double-sided protractor for bevel cuts with electronic digital angle reading display

Controls on the trolley (automatic star/delta start mandatory for versions without inverter)

Automatic star/delta start

Device for parallel cuts on the carriage

Pneumatic bar presser along the entire length of the carriage

Laser

2nd support frame on the trolley with sliding on the track positioned on the ground
